8999 M-SPORT FORD Puma Rally 1 – 1/8 4WD RTR Brushless Motor



2023 M-SPORT FORD PUMA RALLY1.   1/8 RTR 4WD

**Battery and charger are not included**

**Recommend 2S – 3S Lipo Battery**

Item # 8999

Features:

* ESC

– 100A WP-MAX10-SCT-100A-3S RTR Sensorless with T-Plug (powered by HobbyWing).

– 2-3S Li-po (Lithium-polymer) or 6-9 Cell Ni-Mh Batteries.

– Water-Proof and Dust-Proof for All Weather.

– Super Internal Switch-Mode BEC with 6V / 7.4V for Usage with High Voltage Servo.

– Built-In Capacitor Module.

– Automatic Throttle Range Calibration.

– Low Voltage Cut-Off Protection for Li-Po and NiMH Battery.

– Over-Heat Protection and Throttle Signal Loss Protection.

– 5 Levels of acceleration/punch.

– 9 Levels of maximum brake force.

 * Motor

– CEN Racing High Performance 3658 3000KV Brushless Motor (Sensorless).

 * Servo

– 12Kg Metal Gear Servo (By Savox).

4.8V – 0.26 sec/60° 10.0 kg-cm.

6.0V – 0.23 sec/60° 12.0 kg-cm.

With 25T Horn Gear Spline.

 * Radio System

AMP-30 TX 3-Channel Transmitter.

Frequencies: 2.4GHz.

– Digital Trimming.

– Steering Dual-Rate (ST D/R) Adjustment.

– End Point Adjustment (EPA).

– Build in Failsafe.

Power Supply: 4 – AA Alkaline (Not Included).

 AMP30 RX 3-Channel Receiver.

    Frequency: 2.4GHz.

    Power Supply: DC 4.8 ~ 6.0V.

    Dimensions: 1.35” (L) x 0.72” (W) x 0.53” (H).

Body:

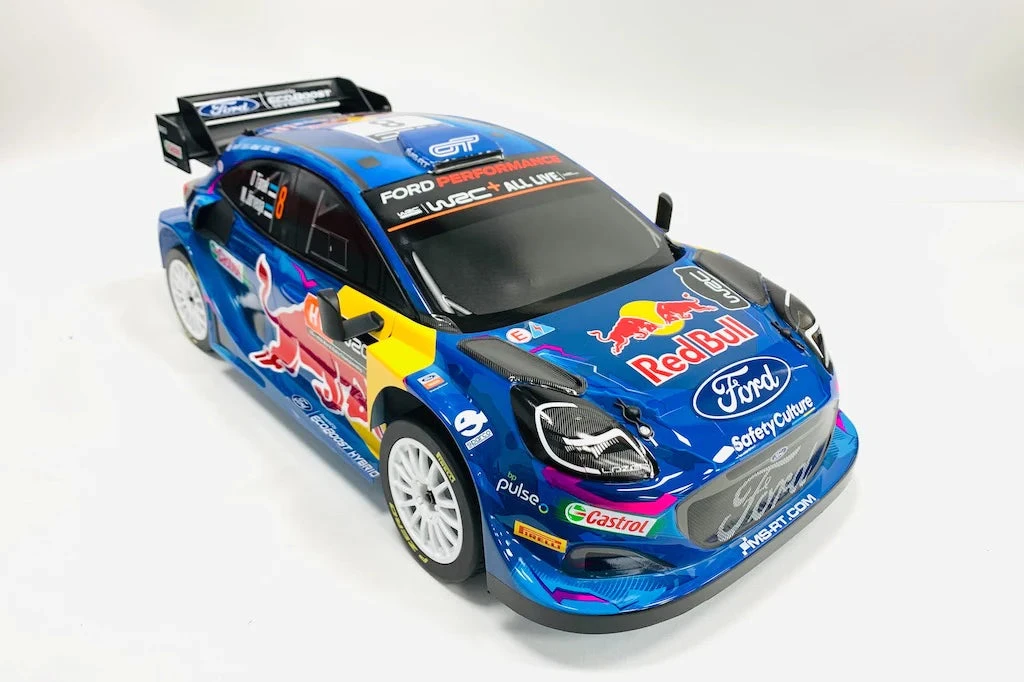

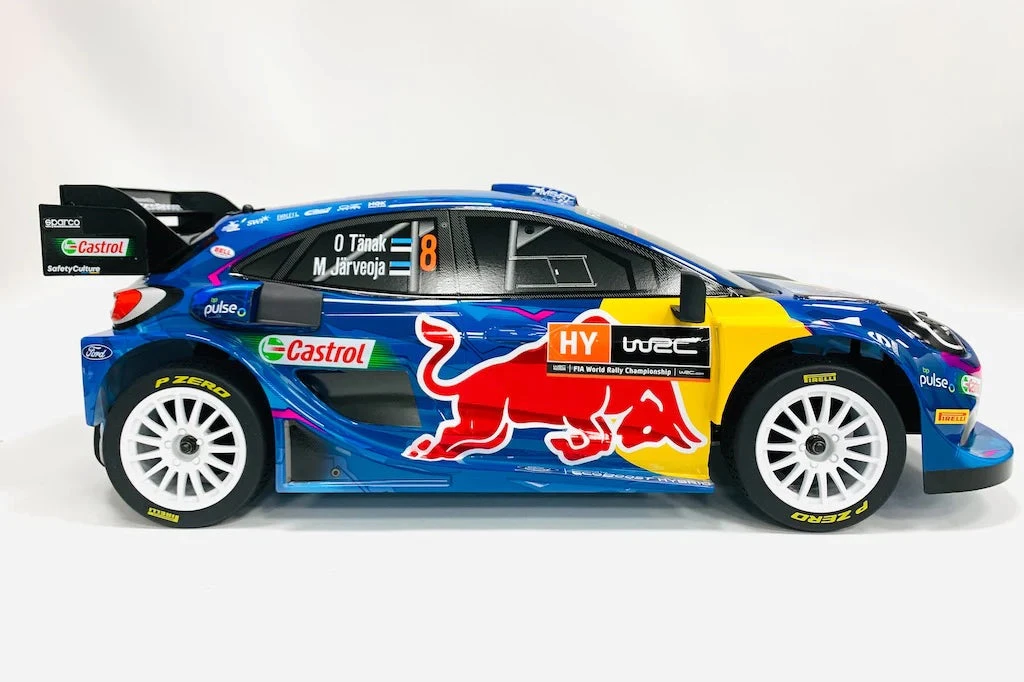

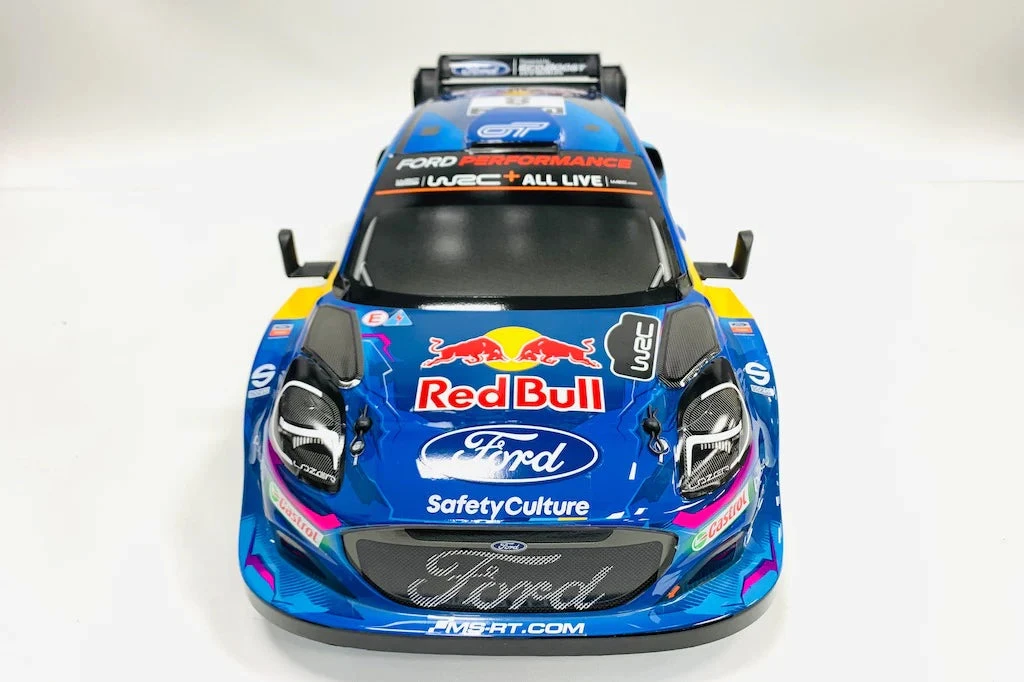

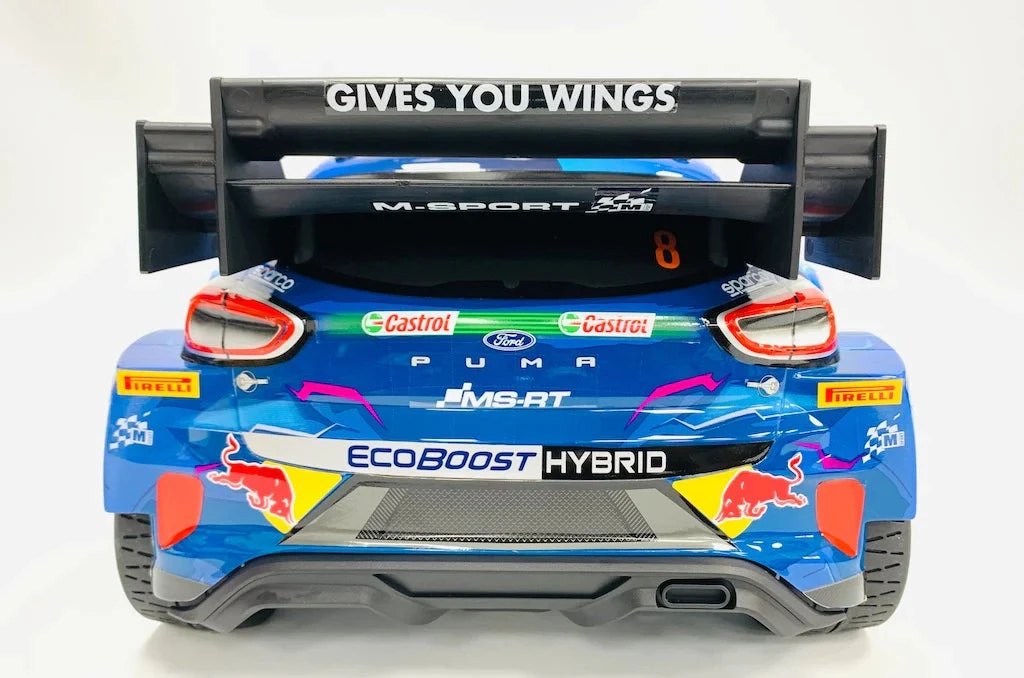

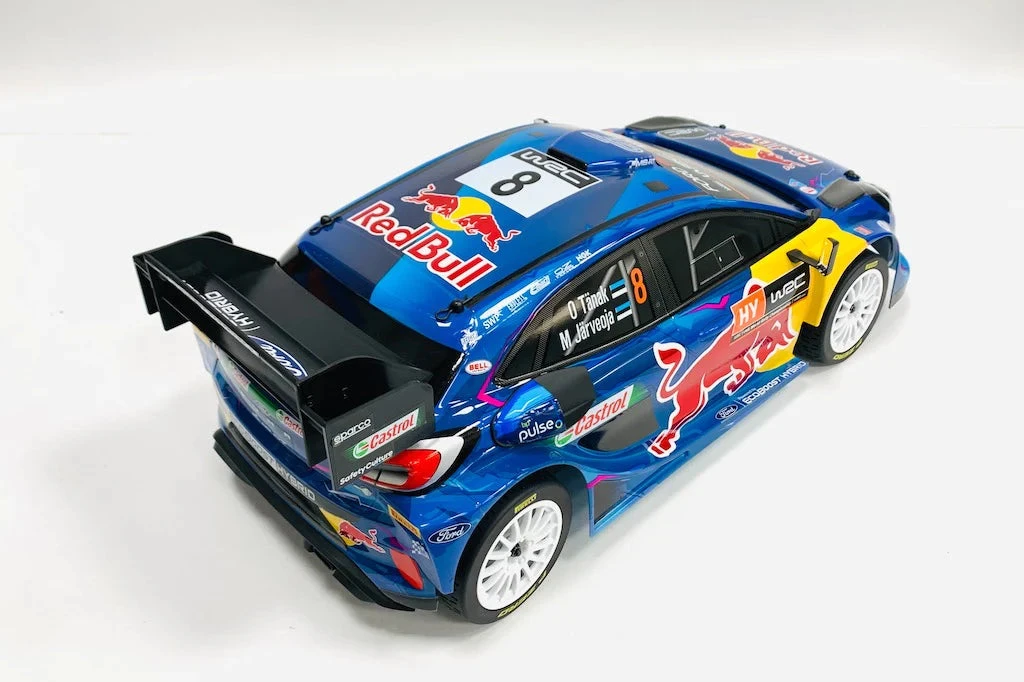

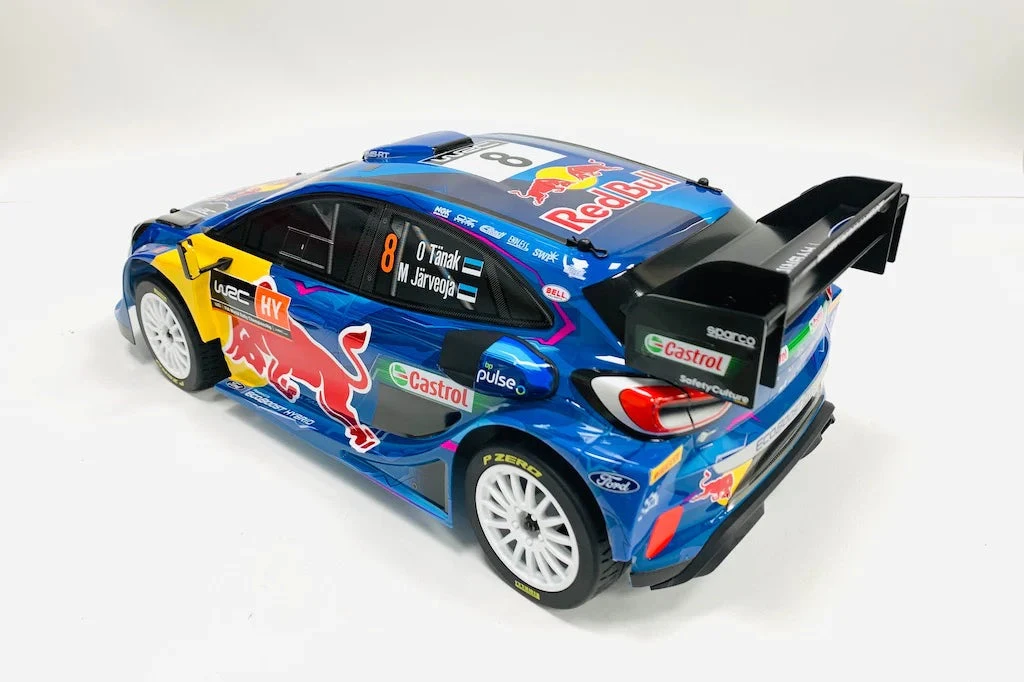

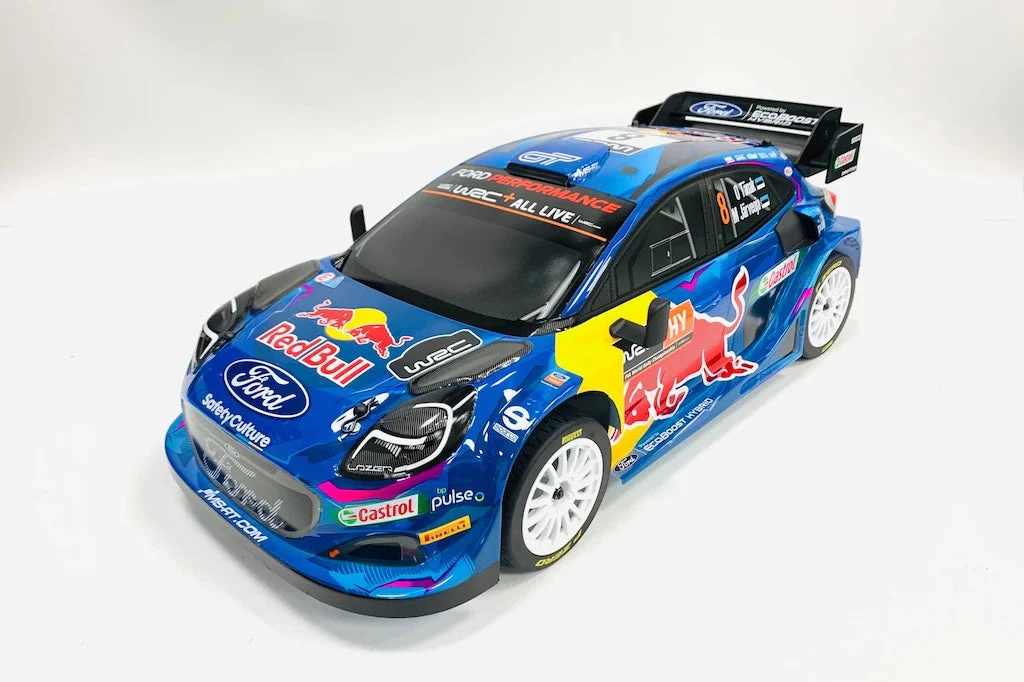

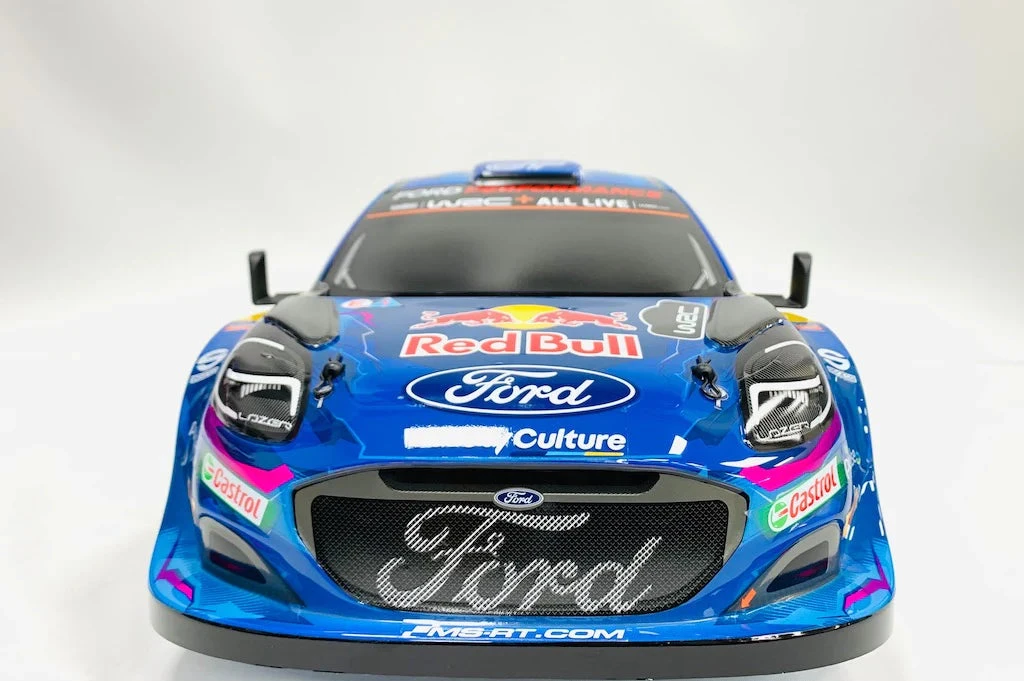

– Official Licensed 2023 M-Sport Ford Puma Rally 1 Edition

– Fully Detailed Injection-Molded Body Accessories Body Details

Size: Length 20.08inches (510mm) / Width 9.45 inches (240mm)

Chassis:

– 3mm Aluminum Chassis

– Front and Rear 3mm Aluminum Shock Towers

– Aluminum Arm Brace

– Full Precision Ball Bearing Support

– Wider Body Mount Positions for Better Support

– Front Skid plate with Durable Foam Bumper

– Injection-Molded Rear Diffuser

– Easy Access Battery Tray

– Battery Tray Size 142mm x 48mm

 Suspension:

– Aerodynamic Lower Arm Suspension Design

– Big Bore Oil Filled Adjustable Coil Over Shocks

– 12mm Over Size Shock Body with 3mm Hardened Steel Polished Shaft

– Racing Spring

– Adjustable Turnbuckles

– Adjustable Wheelbase +/- 6mm

Gear Ratio:

– Spur / Pinion 46/14T 3.29:1

– Ring & Pinion 40/17T 2.35:1

Drivetrain:

– Full Time 4-Wheels Drive

– Center Shaft Drivetrain for more power transferred to the wheels

– Metal Transmission Gears

– Aluminum Adjustable Motor Mount

– Oil Filled Two Differential Drive System

– Center Direct Drive

– Hight Efficient Transmission System

– 6 Gear Bevel Gear Type Differential

– Front / Rear Harden Steel Dog Bone and outdrives

Wheel: High Impact & Light Weight WRC Racing Wheel 56 X 35.50 mm.

Tires:  High Performance Racing Rubber Compound Tires 56 x 80 x 35.50 mm.

Specs:

Chassis Length:  18.11 inches (460mm)

Chassis Width:   9.06 inches (230mm)

Wheelbase:  11.80 inches (300mm)

Ground Clearance:      0.98 inches (25mm)

Weight:      5.51 lb. 2.5kg
