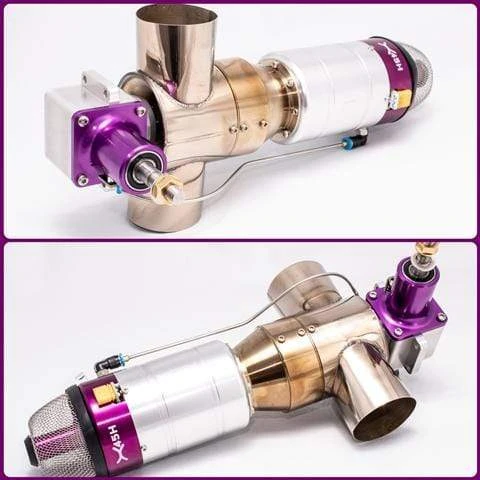

Aeromodel Engine X45H Compact Version

Turboshaft X45H

Helicopter engine, designed to replace the popular OS90 and similar Nitro engines. Same shaft and mounting dimensions as standard Nitro engine.

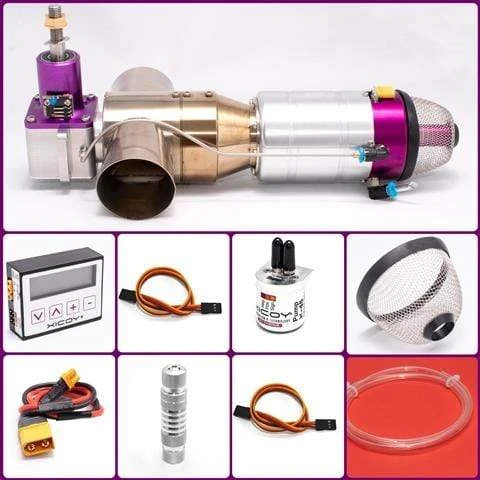

Compact version.  Includes combined data terminal and connecting hub.

• Power: 3.6kW – 4.9HP
• RPM output: 8.000 … 20.000
• Governor function for constant head speed adjustable between 800 and 2500 rpm.
• Diameter: 59,8 mm
• Engine weight: 1150 g including FOD filter.
• Installed weight: 1.240 g (inc Engine, Pump and leads. Not inclusive of battery.)
• Fuel Comsumption: 20 g/min at idle. 110 g/min at full power.
• Easily adjustable power output in Kw and in HP.
• Kerosene and diesel fuel + 4% oil
• Kerostart fast starting of 25 sec
• Brushless fuel pump with integrated controller
• High speed Brushless starter motor
• All new Fully Integrated ecu
• Telemetry for Jeti, Futaba, HoTT, MPX, PB Core, Spektrum, JR and FrSky. (Optional module)
• Fuel and FOD filters included.

Warranty: 2 years or 25h, wichever comes first. Warranty includes parts & labor, but does not include shipments back to factory in Spain and return.
More info and instructions manual here: www.xicoyturbines.com
