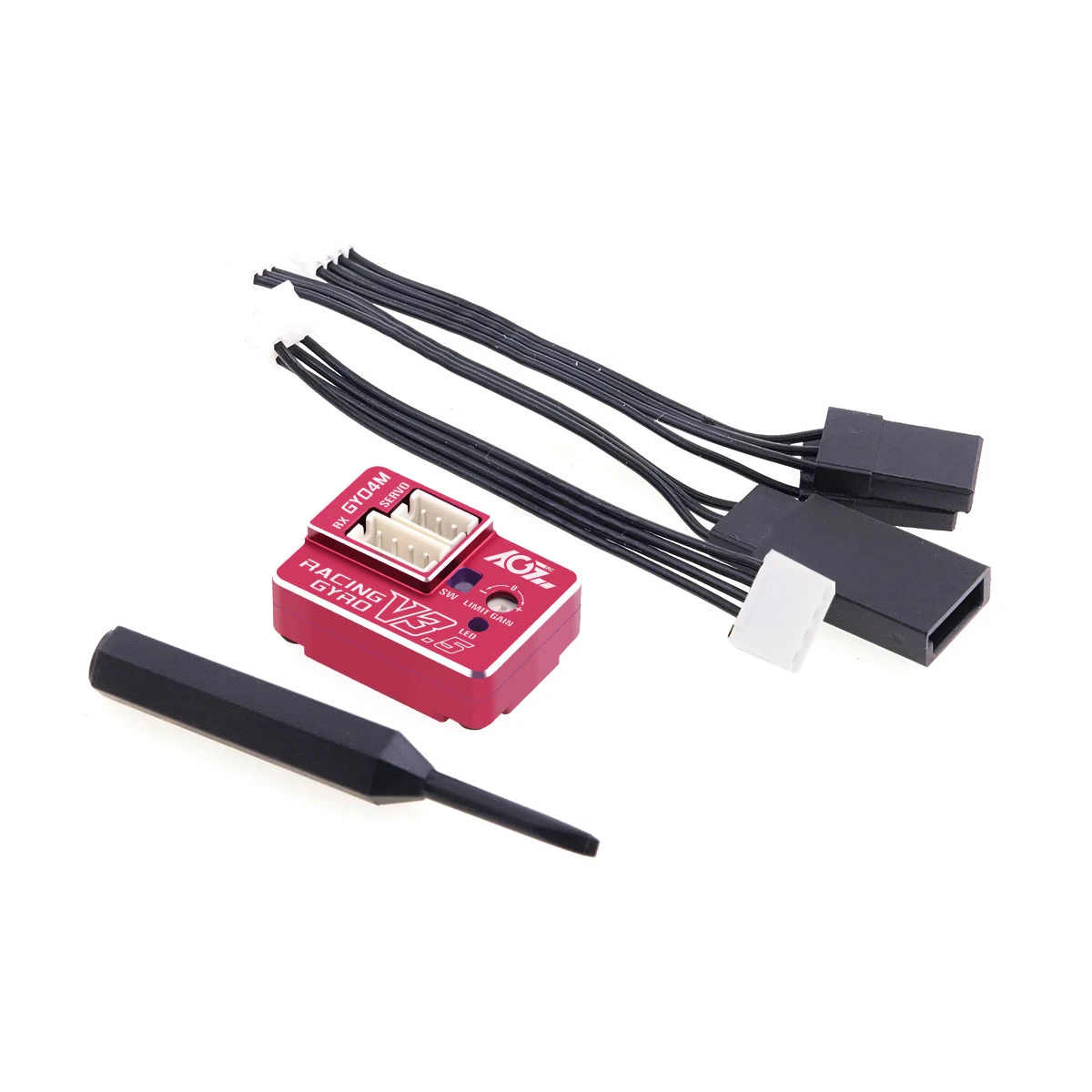

AGFRC GY04M V3.5 4G Super Light Weight CNC Steering Gyro For Mini Z / Drift Racing Cars – RED

Description

AGFRC GY04M V3.5 Car Gyro with red color, has EPA(traveling setting), Reset(travel restore default setting), Gyro Direction(forward and reverse gain setting), Dual Gain Mode Set(Normal/AVCS), and the new function PWM follow mode set. CNC case is adopted to ensure good heat dissipation and keep the cool temperature during driving. It is widely used to adjust the steering of the RC car and maintain the precise direction of the RC car during driving, helping us to provide a more stable and controllable driving experience for our cars.

The new version is very newbie friendly and it can help you get into swing of things faster. If you’ve been using our A11CLS Mini Z servo and GY04M V3 gyro before, you shouldn’t miss this one.

* Three color for selection: Black, Red, Purple.

Feature

◆ CNC Aluminum Alloy Red Case

◆ Stable and High-Precise Gyroscope Sensor

◆ Easy and Quick Installation

◆ 2s Lipo Normal Driving Voltage

◆ Available to change Normal Mode and AVCS Mode

◆ Compatible With Digital And Analog Servos

◆ PWM Follow Mode Set

◆ Super Light Weight and Compact Size make it perfect for Mini Size RC Drifting Cars use.

Specification

◆ Item Name: GY04M V3.5 Red

◆ Shell Material：AL6061

◆ Weight：4g

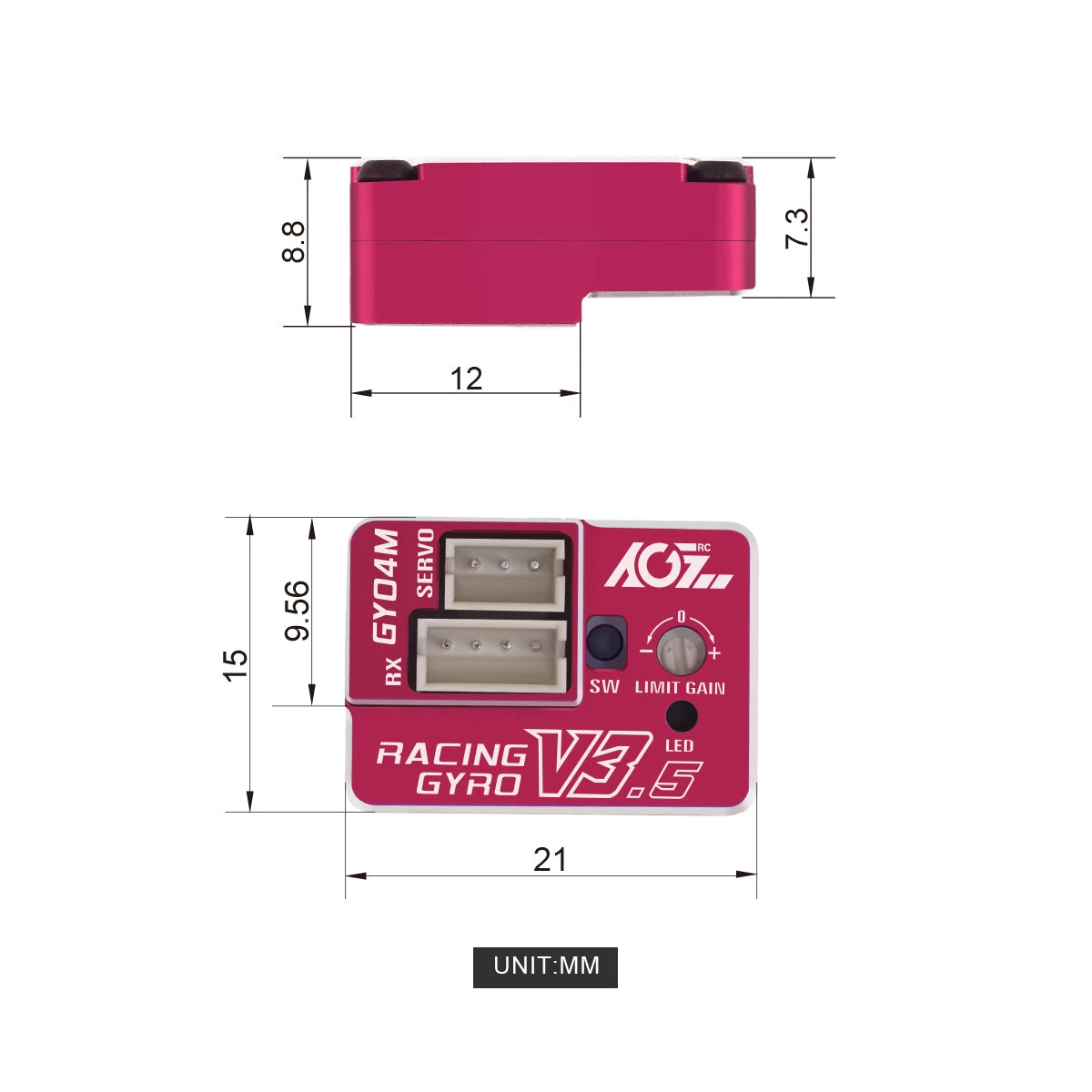

◆ Dimension：21*15*8.8mm

◆ Operating Voltage：3.7～8.4V

◆ Current Drain：20mA/6V

◆ Dual Gain Mode: Normal/ AVCS

◆ Operating temperature: -10℃+50℃

◆ Control System: PID Control System

◆ Output Signal: 1520uS(50Hz/333Hz) / Sanwa SSR

◆ Input Signal: PWM(50-333Hz) / Sanwa SHR; SSR / Futaba S.BUS2

◆ Input & Output Plug: JST1.5mm(attached the signal input cable to connect with receiver)
