| Instructions: | Specification: | ||||
|
1.The 520MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
Effective immediately, the Align MX series motors have 40% off Lifetime service where your old motor can be exchanged for 40% off the retail pricing of a new equal spec motor. If needed, please contact to Align authorized distributors . |

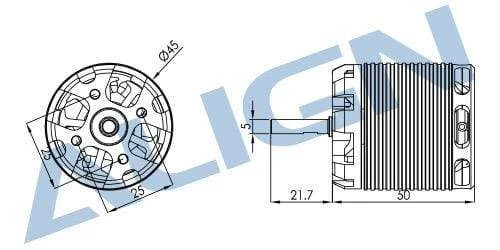

●Input voltage:6S ●Max continuous current:85A/130A(2sec) ●Max output power:1900W/2750W(2sec) ●KV value:1600KV ●Stator Dimension:3527 ●Stator Arms:9 ●Magnet Poles:6 ●Dimension: Shaft Φ5xΦ45×71.7mm ●Weight: Approx. 267g |
||||
| Accessories: | |||||
| ●Socket screw x 4 (M3x10) ●M3 Washer x 4 (Φ3xΦ8×1) |

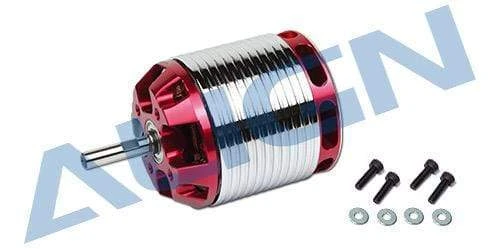

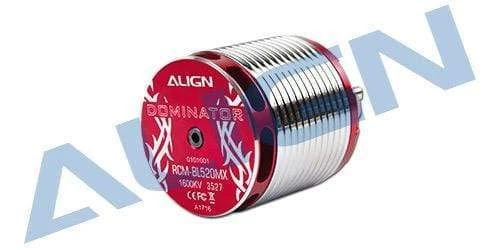

Align 520MX Brushless Motor (1600KV/3527)
$79.99 Original price was: $79.99.$55.99Current price is: $55.99.
SKU: AGVSA 4706835857485 Categories: Heli Motors, Helicopter Electronics, Helicopters Tags: Alignpart wholesale, Coupon promotion, Heli electronics, Heli_cate, Heli-motors, Helicopter Electronics, Motors, New Year 2022, PD23 15, PD23 heli elec, Promotable, Sales
