AR Extreme RRS Power Switch Pin And Flag Switch (Xt30s Included)

Welcome to the new generation of EXTREME Redundant Receiver Power Expanders.

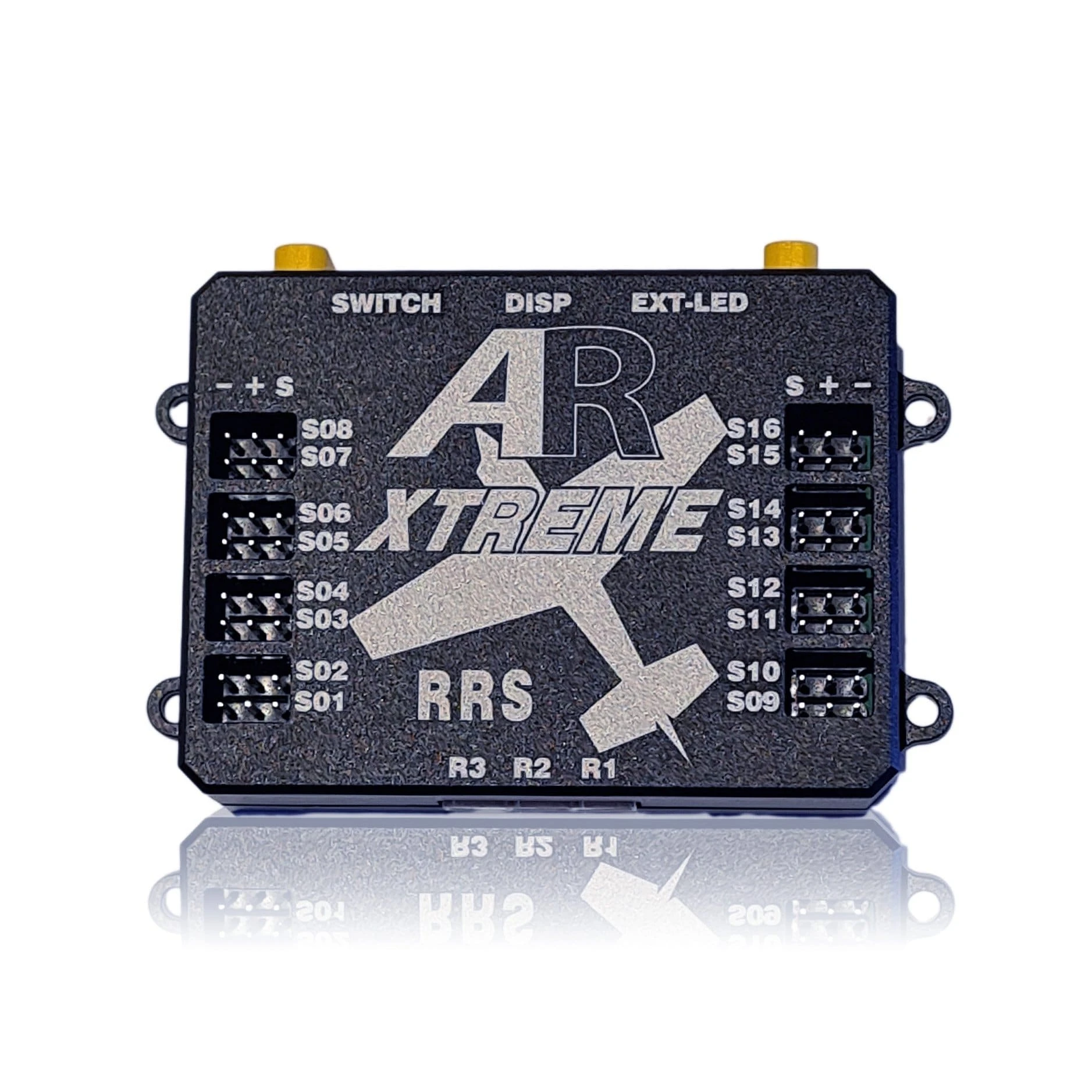

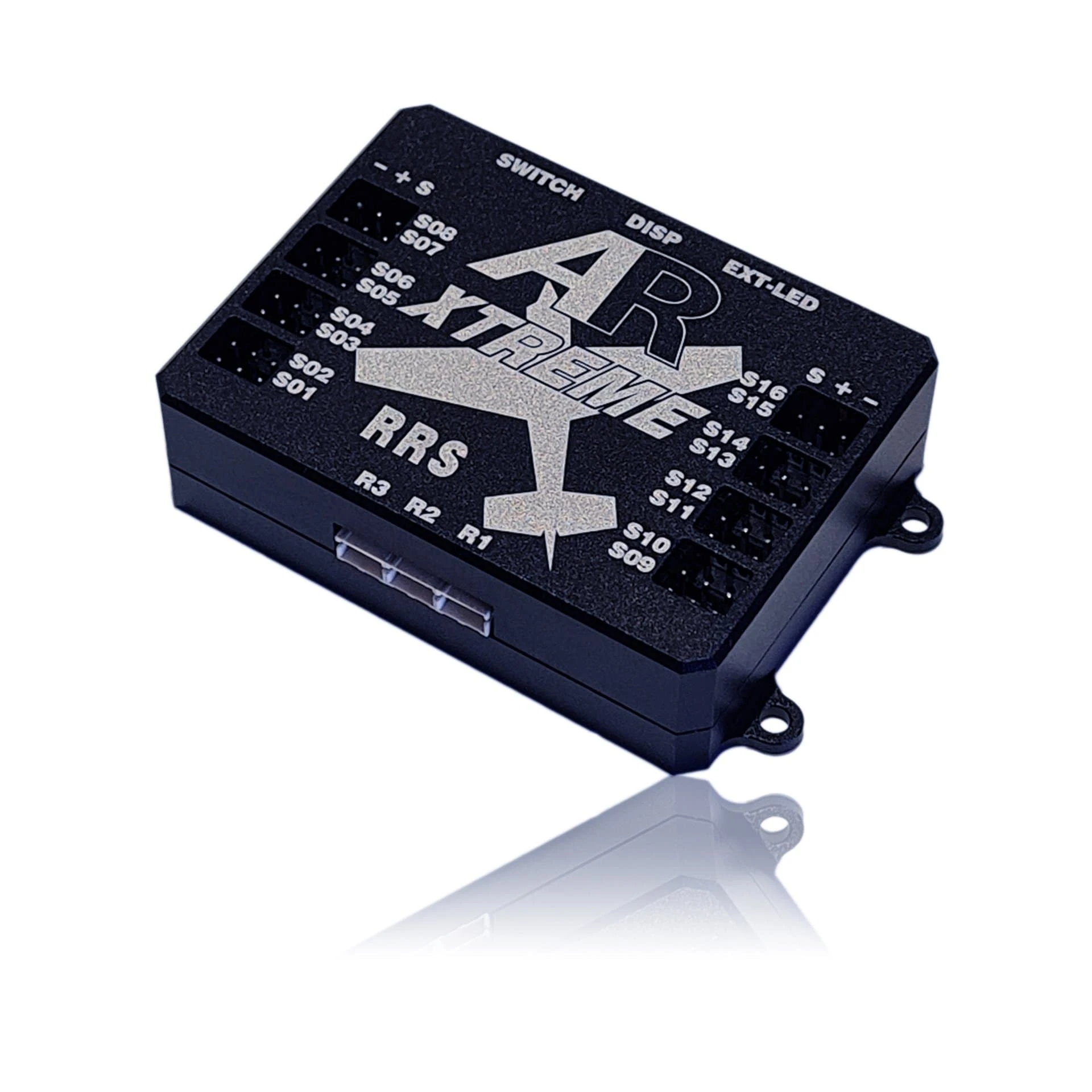

EXTREME RRS is a high powered servo distribution system designed for extreme 3D and IMAC flying. It boasts dual (or single) receiver inputs for receiver redundancy, 16 freely assignable channels with servo matching, servo reversing, 15 point servo matching and high power delivery to match with todays high powered digital servos.

Coupled with the AR ProLine servo cables and you have the absolute best possible combination of power delivery for your high energy flying machine.



Supports multiple Protocols

Whether you fly Futaba, Jeti, Spektrum, JR, Core, Graupner or FRSky the AR EXTREME RRS has you covered. With build in downlink telemetry for each radio system and the ability to change the protocol at the touch of a button, the EXTREME RRS can be easy changed from model to model with different receivers in each.



Secure Technology with Optional Exclusive Personalization

We all know how valuable our giant scale models are so the EXTREME can be factory ordered with your own personalized startup screen that is displayed every time you power up the EXTREME RRS and is also availble from the Information menu. Your personalized EXTREME RRS will have you looking pro and will make your model exclusive to you so and easy trackable if necessary. To order your exclusive version select the option from the drop down list and fill out the Startup screen message you require. Our team will verify this information with you prior to shipping your personalized Exclusive EXTREME RRS.



Sixteen fully assignable and programmable outputs

Looking at that next big project and wondering how you’re going to power all those servos, the EXTREME RRS is equipped with 16 input channels and 16 fully programmable outputs, all via a single cable connected to your receiver. Each channel is freely assignable to any input and can be reversed and matched to any other channel. Building that next giant scale 3D or IMAC model the  EXTREME has it covered.



Easy to Use

EXTREME RRS comes with pre-configured channel mapping that matches your chosen radio brand so model setup is really simple. Of course for advanced setups all 16 channels can freely assigned to any transmitter channel.



Telemetry ready

EXTREME RRS gives you live feedback of both your batteries on your radio. Monitor the voltage, capacity and current drawn from the model’s batteries at any time during the flight. Log maximum current draw during extreme manoeuvres (TX must be able to display maximum current draw) to ensure your model’s servos are getting the full power. Helps to ensure your batteries are ready for the next flight.*



The Next standard in servo Matching.

In the RC industry precision is key. How can you expect to be precise when no two servos are identical, giving you varied results no matter how well you mechanically match them. Match your servos across 15 individual points and you can finally achieve matched perfection on your elevators, flaps, multi-engines and more. Take the hassle out of your new setup and have a model that raises your skills.



Sub-trim and reverse on all outputs

Ever spent hours, mechanically matching servos and never being able to get them just right or had to use a separate channel on your receiver, just to reverse a servo. With our intuitive and simple setup you can easily sub-trim at the centre and end-points of all your outputs on the EXTREME RRS. Using EXTREME RRS you can individually reverse your servos at a touch of a button. Smooth Flite gives you ultimate power at your fingertips.



RRS – Redundant Receiver technology

EXTREME RRS is the safest in signal sharing technology, the redundant receiver system ensures your model by utilising two receivers. Unlike other power systems Smooth Flite reads signal from both receivers at all times and runs an intelligent algorithm to select the best signal.



In the unlikely event that a receiver fails then EXTREME RRS switches to the better receiver in less than one signal frame to ensure you will have constant control of your model. Reliability is key with models today, with our redundant receiver system you can ensure your model is always reporting back to you.



With EXTREME RRS all receiver events are recorded and remain even when powered down so you can review receiver health before and after flights.



Vibrant colour touch screen display.

Gone are the days of fiddly buttons and rotating dial frustrations, no more bind plugs and small screw drivers needed. The vibrant Smart Display gives you feedback and simple programming all in one touch screen display. With intuitive buttons and a single setup design. Your model will be in the air before you know it.



Dual battery redundancy, power management you can trust.
Ever wondered how many flights you have left before a charge, what about the health of your packs. Ensure that your model is safe and ready to fly with our dual battery redundancy technology. Using perfect diode technology, we link the batteries together, giving your model a powerful system capable of more flights before a recharge and with the addition of the Smart Screen you can directly monitor the voltage and milliamps used from you batteries. Models are expensive, ensure yours is in good condition to fly.



View the EXTREME RRS Users Guide PDF file



SPECIFICATIONS:

* Redundant Receiver system – works with dual or single receiver system

* Mutli-protocol support SBus2, Spektrum SRXL and high speed SRXL2, JR/DFA XBus, Graupner HoTT, Jeti EXBus, SRXL2, FRSky adn Sport, All SBus compatible transmitters including CORE.

* Telemetry ready

* 16 assignable Input channels

* 16 fully programmable and assignable servo outputs.

* Works with single or dual battery configuration.

* Works with all battery chemistries. LiFe. LiPo, Lion. (High power batteries required)

* Full Dual Battery Redundancy – If one battery fails the other battery takes full control.

* Vibrant Colour 2.4inch diagonal touch screen with 64k colour

* Screen case dimensions 3.4 x 2.0 x 0.5 inches (86 x 50 x 12)mm

* EXTREME RRS dimensions 2.59 x 1.92 x 0.47 inches (66mm x 49mm x 18.5)mm

* EXTREME RRS weight (55gms) without colour screen..

* Multi-match technology.

* Exclusive version availble for model security.
