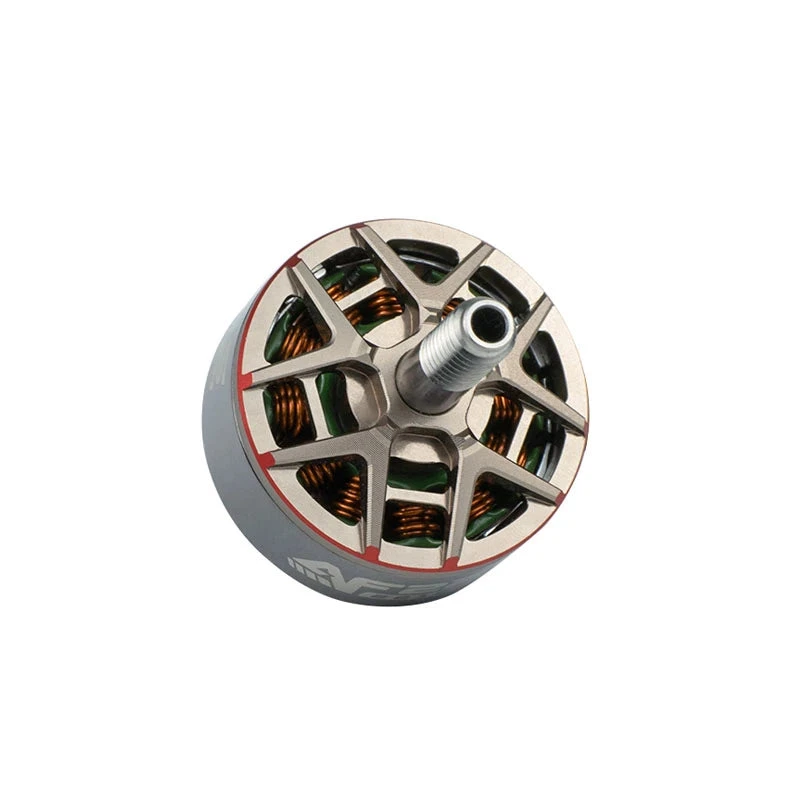

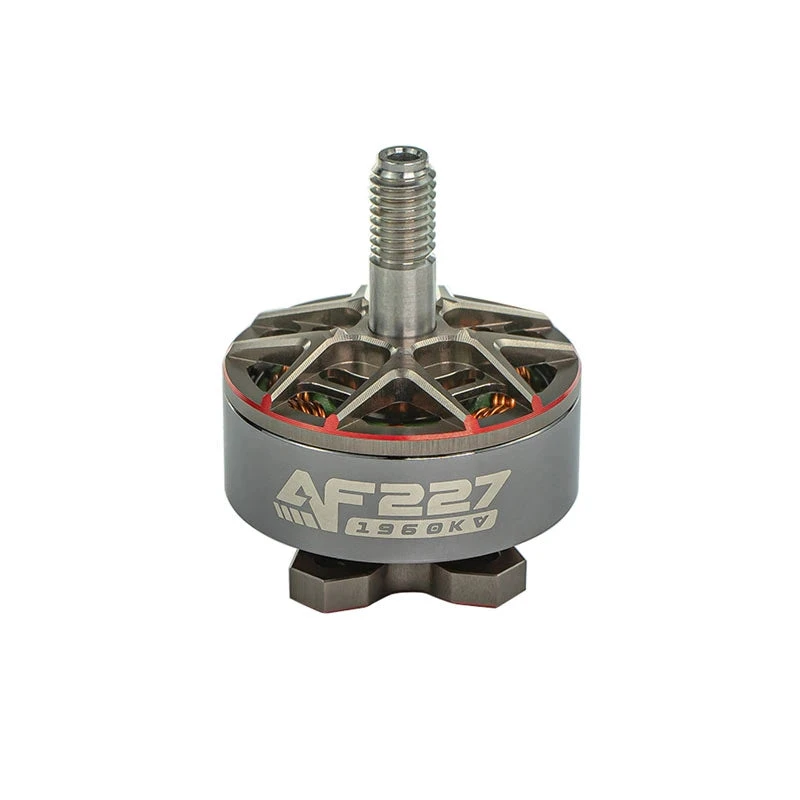

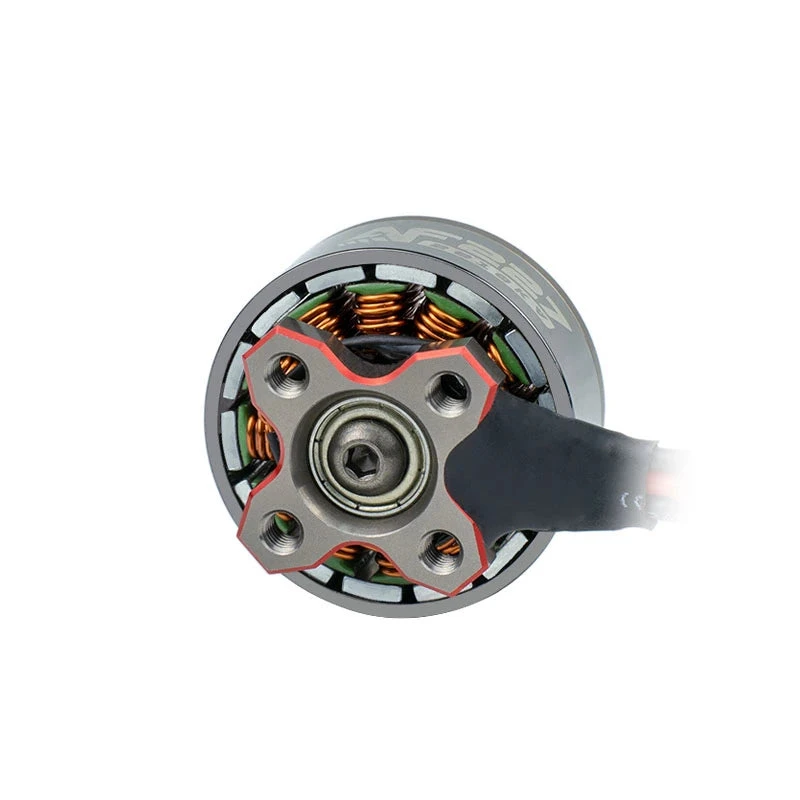

Axisflying 5″ Brushless Top Quality FPV Motor AF227-1960KV For Juicy / Sbang / Bando Freestyle

– AF series motor are axisflying highest quality line with Premium performance, the highest standard.

      – AF227 motors released with 2 KVs, 2010 and 1960 for 6s, 2010kv is main for FPV racing, 1960KV is the most popular KV for freestyle with silky smooth and torquey low throttle with an sabng curve.

*Bearing Shield Technology

– An IP53 rating dustproof and waterproof bearing placement design.

– BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .

– Increased thrust effciency and say goodbye to crush motor bearings

*Specs

– 1960KV is for Sbang style freestyle @6S

– 2010KV is for racing @6S

– Configuration: 12N14P / N52H arc magnet

– Motor stator size: 2207

– Motor mounting hole size: 4*M3 (Φ16mm)

– Motor cables: AWG 20#, 150MM

– Motor dimensions (Dia *Len): Φ27*33MM  / M5 shaft

– Motor weight (excluding 150MM cables) : 30g

– The motor is very powerful that can get over 1.9KG and most current is about 45A

*Package

– 1* AF227 motor

– 4* M3*8 screws for motor

– 1* M3*4 screw for lock shaft

– 1* M5 Flanged Nylon Insert lock

– 1* O-ring

– 2* Washers
