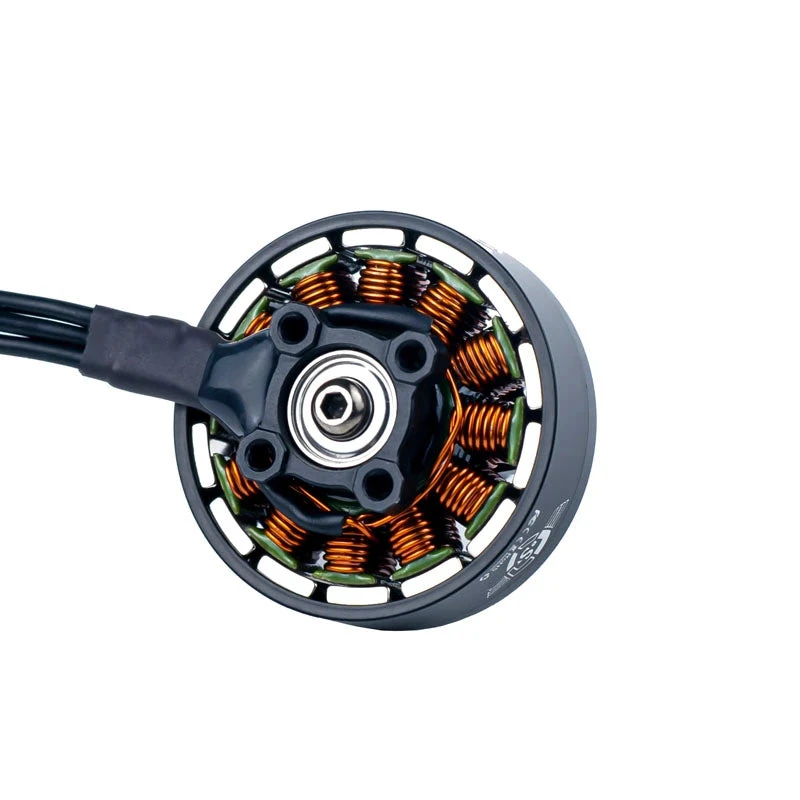

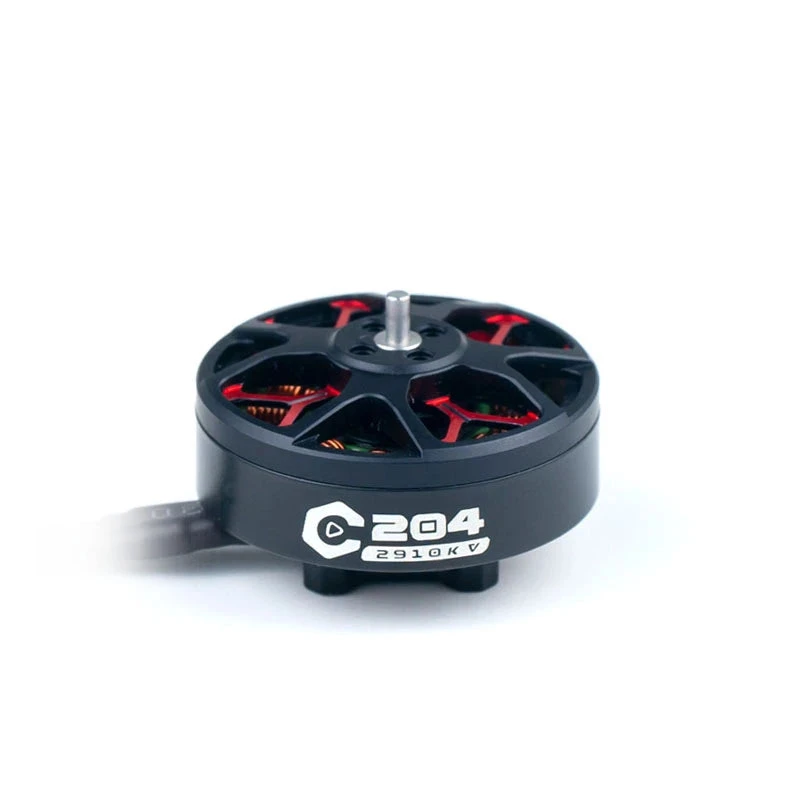

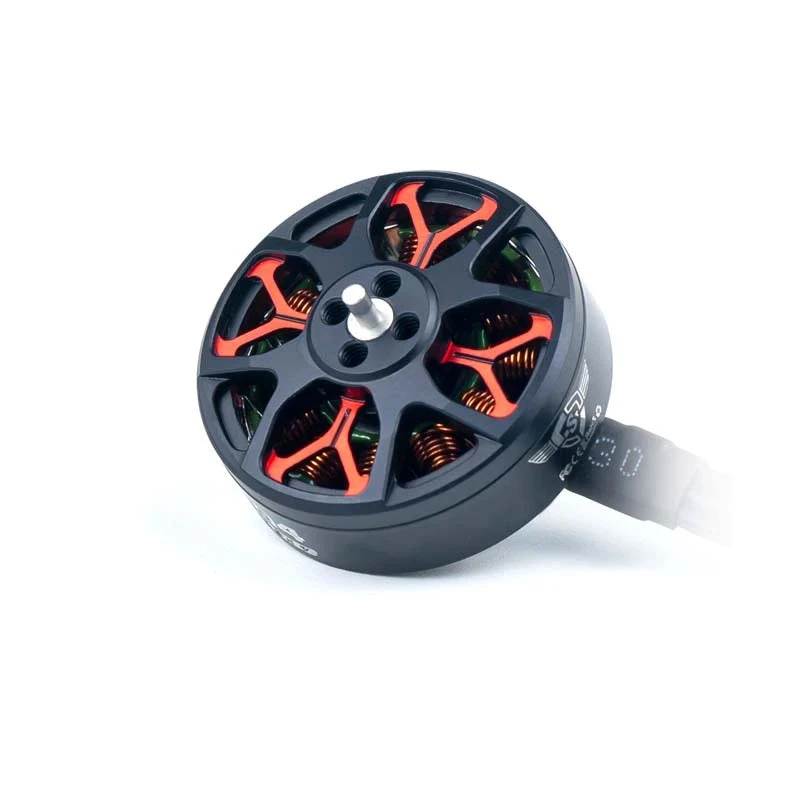

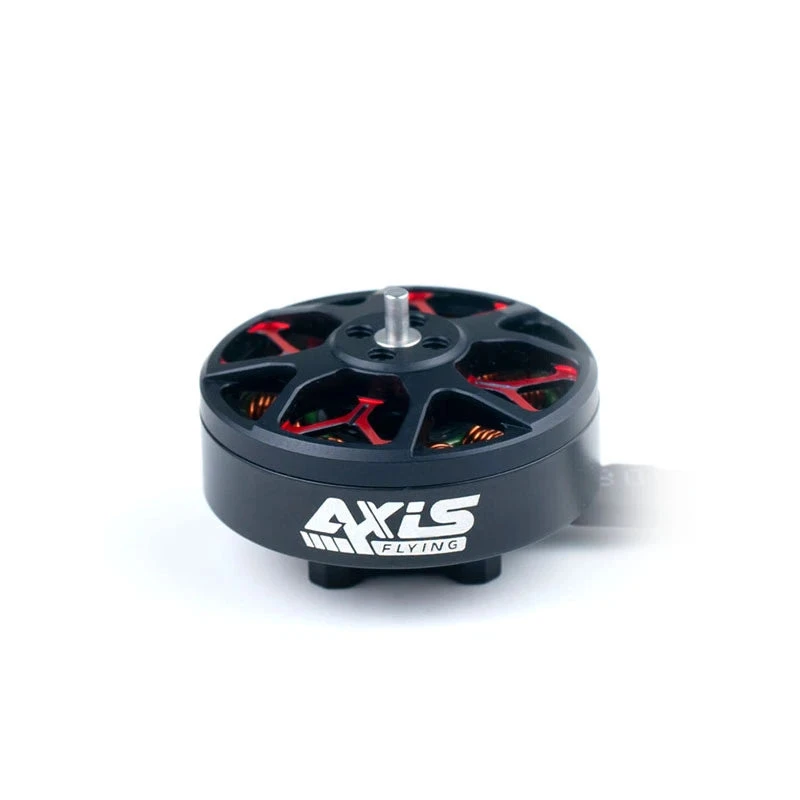

Axisflying FPV Brushless Motor C204-2910KV For 3″ Cinewhoop And Cinematic Drone

With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.

The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.

Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.

The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

*Forword

– C204 motor is special designed for 3inch cinewhoop and cinematic drone that need more powerful and torque.

– C204 motor is also good for 3.5inch cinewhoop of cruising fly.

– C204 motors run perfect with Gemfan D76-5 and D90-3 props

– There are 2 KV for options 2910KV @6S ,3500KV@4S

*Bearing Shield Technology

– An IP53 rating dustproof and waterproof bearing placement design.

– BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .

– Increased thrust effciency and say goodbye to crush motor bearings

*Specs

– 2910KV is for 6S / 3500 KV is for 4S

– Configuration: 12N14P / N52H arc magnet

– Motor stator size: 2004

– Motor mounting hole size: 4*M2 (Φ12mm)

– Motor cables: AWG 20#, 150MM

– Motor dimensions (Dia *Len): Φ26.9*28.8MM

– Motor weight (excluding 150MM cables) : 15g

– The motor is very powerful that can get over 0.85KG and most current is about 25A

*Package

– 1* C204 motor

– 4* M2*5 screws for motor

– 1* M2*4 screw for lock shaft

– 2* M2*7 screws for lock props

– 1* O-ring

– 1* Washer
