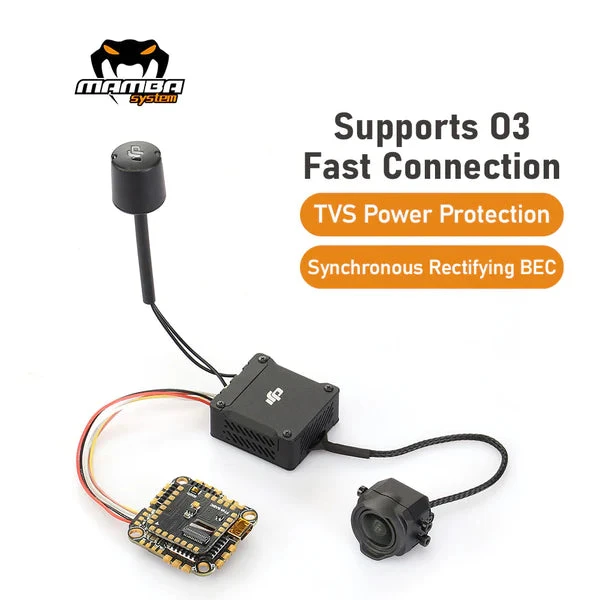

Diatone Mamba MK4 F740 AIO 40A 6S 32bit ALL IN ONE AIO FC&ESC 25.5mm/M2

Recommend For : 3inch / 4inch / Ultralight 5inch   < 250g

FC Specifications

Target：MAMBA F722_2022B
MCU: 216MHz STM32F722
GYRO: ICM-42688-P
Barometer: Yes
OSD: Yes
Blacbox: 16 M Flash Memory
Uarts: 6 Set
Motor Signal:4 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED
AIR UNIT Port: Yes

ESC Specifications
Input: 3~6S Lipo (12.6~25.2V)
Continue Current: 40A×4
Burst current: 45A (10S)
Target：BLHeli_32 MAMBA F40_128K
SOFT: Dshot300/600
PWM:24~128K

Supply :
High Frequency 470uF/35V ×1
AIR UNIT sh1.0 ×1
16AWG 60mm ×2
AMASS Original XT60
