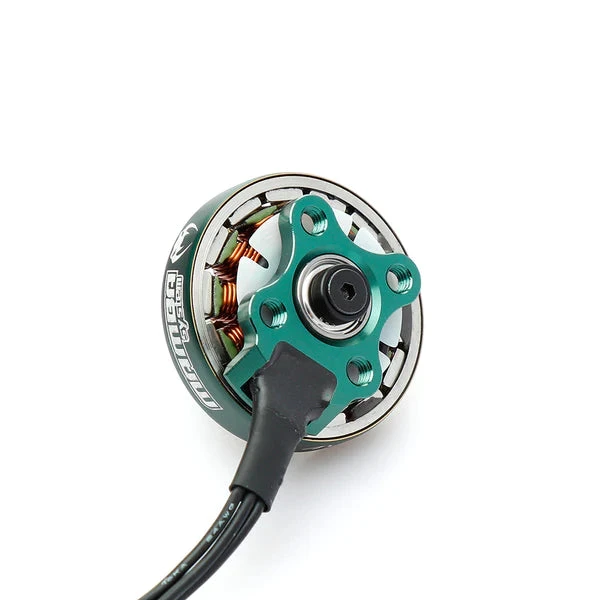

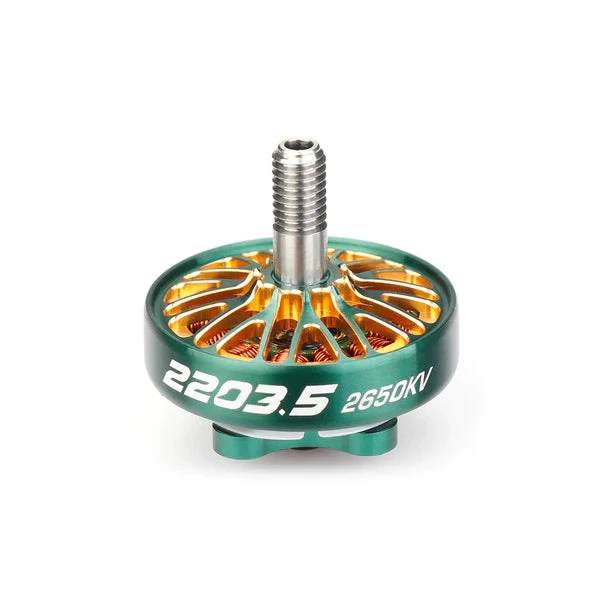

Diatone Mamba TOKA 2203.5 2650KV Racing Motor Green

MAMBA TOKA 2203.5 2650KV Racing Motor Green

Overall Dimension:Φ28.9×29.4mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop:  5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：22mm
Stator Height:3.5mm
Pated Voltage:3~4S (12.6V~16.8V)
Peak Current: 27.64A
ldle Current：10V/0.9~1.9A
Maximum Power: 441.24W
Internal Resistance：120mΩ
