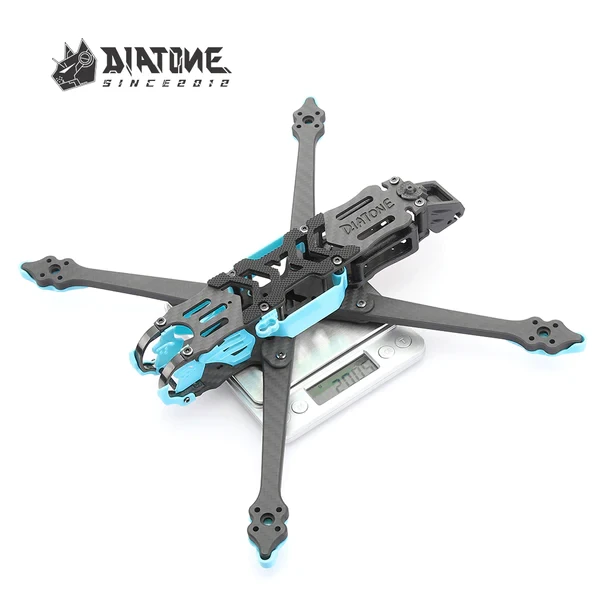

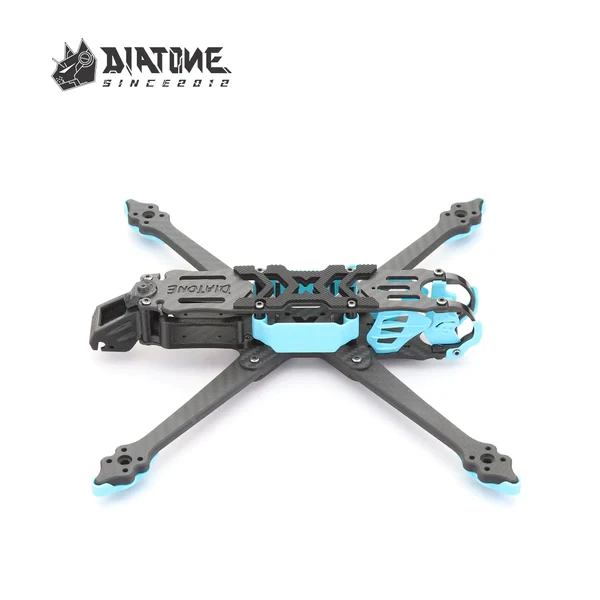

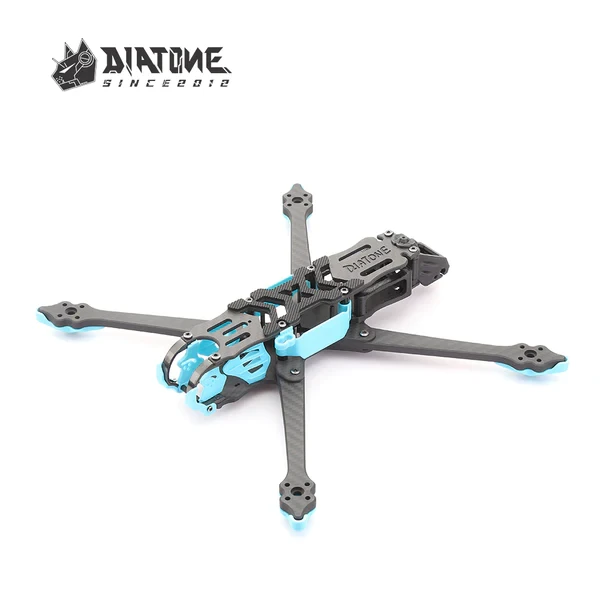

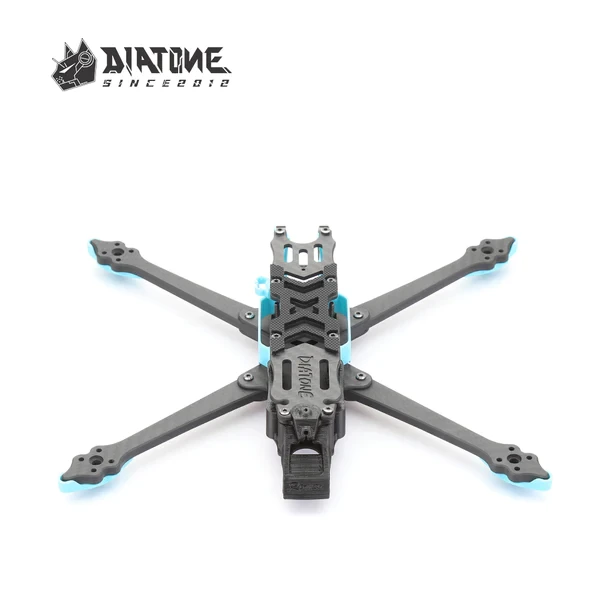

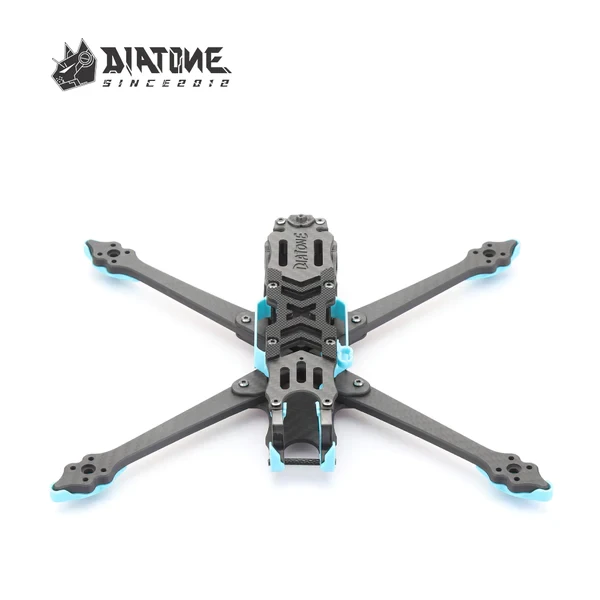

Diatone Roma F7 7inch Frame Kit

Specification:

Wheelbase: 290mm
Weight: 200g
Prop Siza : 7 inch
FC Mounting: 30.5×30.5(M3)&20×20mm（M2）
Motor Mounting: 16mm(M3)
Recommended Motor Size: 28 Series motor
Top Plate: 2.5mm
Medium Plate: 2mm
Bottom Plate: 3.5mm
ARM Thickness: 6mm
Max Stack Height: 23mm
Rated Volitage (Recommendation)：4-6S

Recommend Lipo size: 6s 1600-1800 mAh
Drone nose metal parts：SUS304
Carbon fiber: T300 3K

Packing List:

1. The default lake blue injection molded parts include:

2. Head aluminum protection,

3. Camera mount,

4. Arm protection,

5. General GOPRO fixed base,

6. The Stack side plate

Print Parts:
M8PLUS GPS/SMA analog antenna base*1
M22 GPS/DJI dual antenna mount*1
