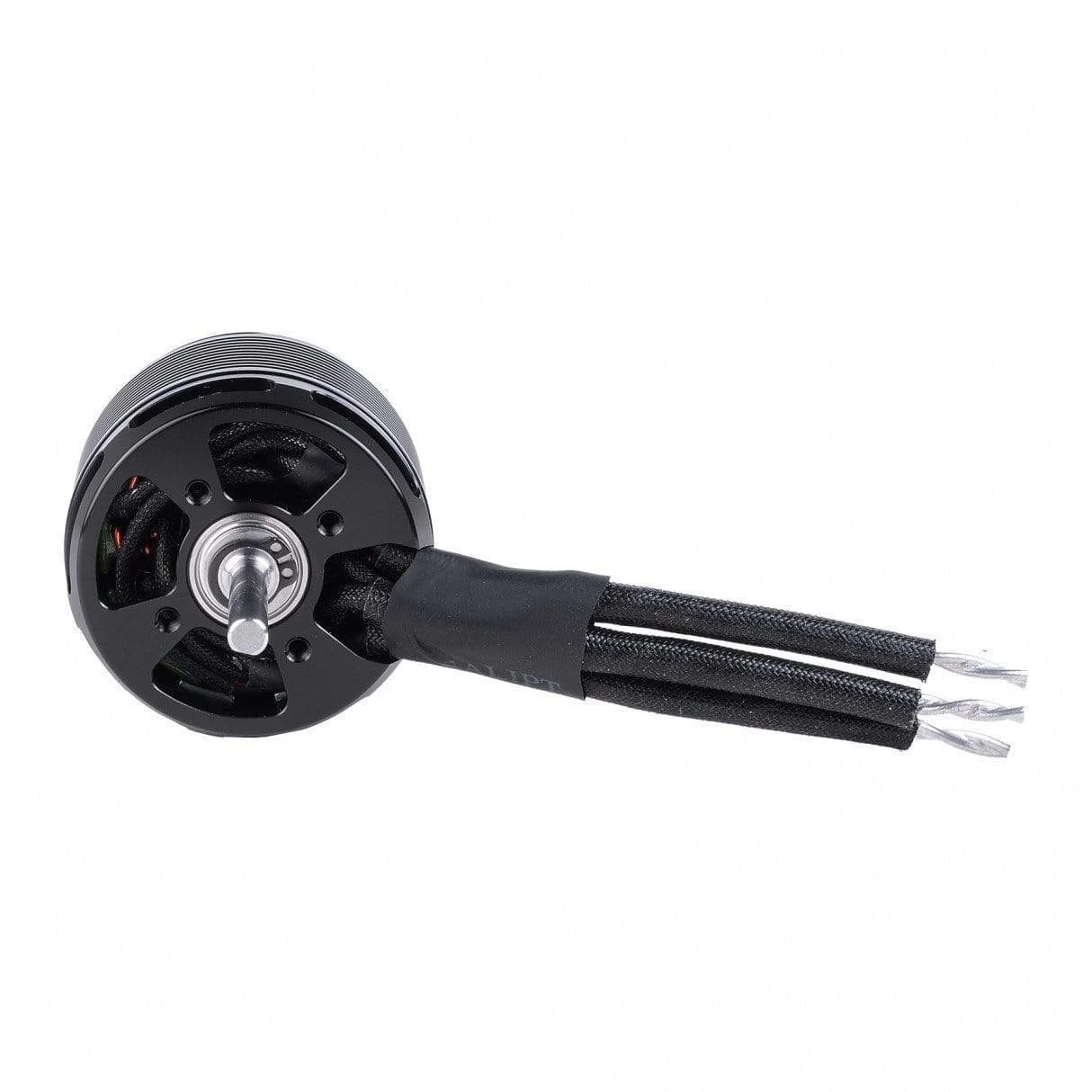

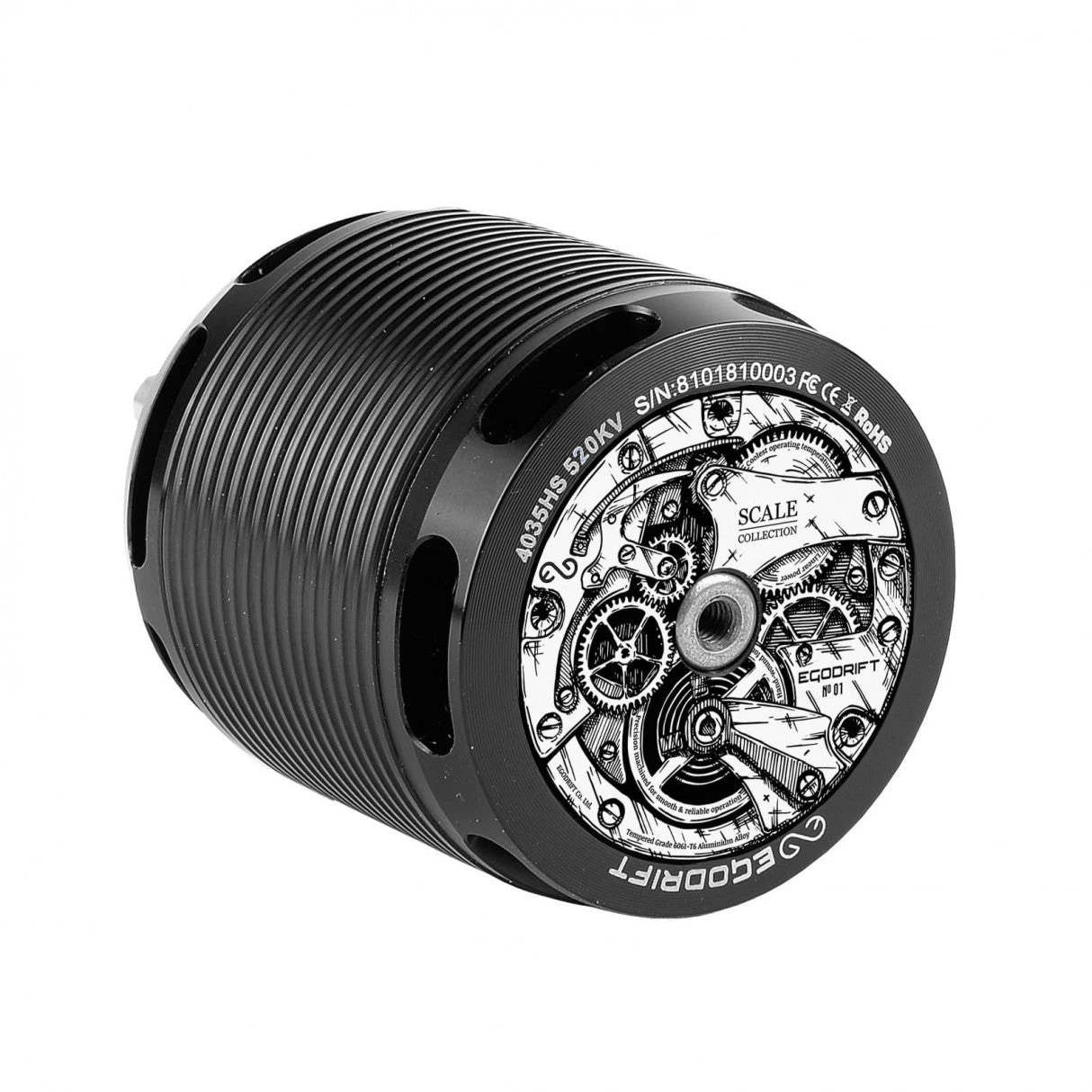

Egodrift Scale Collection 4035HS / 520kV Motor (6×40)
Original price was: $259.99.$97.99Current price is: $97.99.
- Superior Quality Goods
- Best price, safe shopping guarantee
- SSL encryption, absolutely safe shopping
- Buy quality, buy with us.
The 4035 stator size delivers a perfect balance of power, weight and efficiency, while being easy to integrate due to it’s slim dimensions. Perfect for the HSM800 mechanics and Supercale Series by Scaleflying and operation on 12S
Also suited for up to 1.8m sized models, the Vario range and other 1:8, 1:7 and 1:6 models (as an alternative to 4525).
The 520kV version of the Scale Collection 4035 adds an additional option for fine-tuning to individual pilot preferences and setups.
Each motor comes with gold connectors, mounting screws and an (optional) screw for additional securing of the bell.
Specifications
- Manufacturer: EGODRIFT
- Stator size: 4035
- Motor configuration: 12N10P
- Motor weight: 488g (17.21oz)
- Wire colour: Copper
- Motor wire type: High temperature copper wire
- Motor wire: 1.3mm
- Motor kV: 520 kV
- Motor shaft: Hardened Steel
- Shaft diameter: 6.0 mm
- External shaft length (mm): 40mm (Scale, F3C, oxy5)
- Mounting hole pattern: 4xM4(30)
- Laser Design: Scale Collection
- LiPo cells: 12S
- Stator diameter: 40 mm
- Stator height: 35 mm
- Stator lamination: 0.15 mm (+)
- Body Length: 60mm (2.36 inch)
- Diameter: 49.6mm (1.95 inch)
- Idle current: 4.4A
- Maximum Current: 85A (Peak: 105A / 2 seconds)
- Maximum Power: 3830W (Peak: 4820W / 2 seconds)
- Internal resistance: 18.5 mOhm
- Connection: Wire / Gold plated plugs
- Designer:
- Yutao Zou
- Vincent Offenbeck
What’s in the box
- 1 x Scale Collection 4035HS / 520kV Motor
- 3 x Gold Plated Connector, Male
- 3 x Gold Plated Connector, Female
- 4 x Mounting Screws
- 1x Bell securing screw
