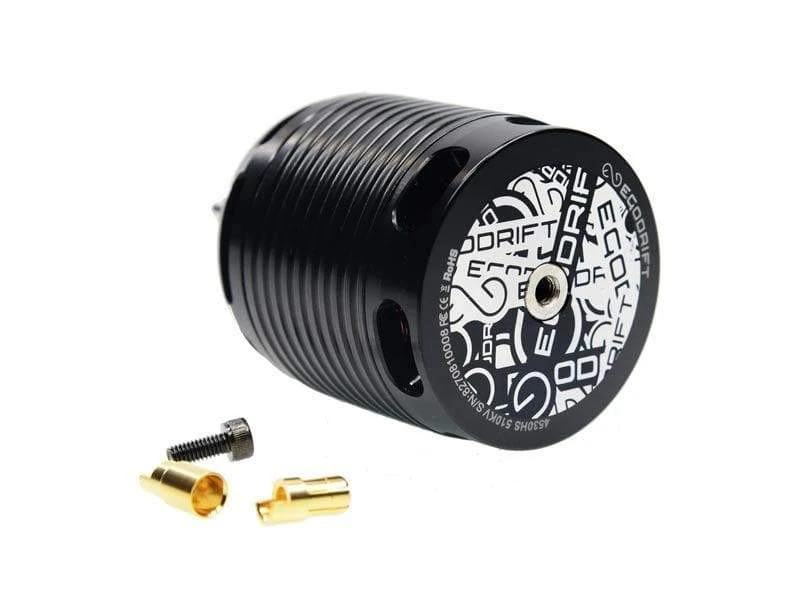

Hand-wound EGODRIFT Tengu 4530/510kV brushless motor for 700mm class helicopters, such as the XLPower Spectre 700, Goblin 700, T-Rex 700 or Gaui 700.
Each motor comes with a 55mm (exterior) length (for Align helicopter models) is available as spare part.
EGODRIFT EGODRIFT Tengu high-performance brushless motor are the result of one year of development and testing. The 4530HS Tengu comes with a kV rating of 510kV and fits all 700mm class helicopters, such as the XLPower Spectre 700, Goblin 700, T-Rex 700 or Gaui 700 (and various other models).
All CNC parts are processed in our EGODRIFT factory on our Japanese Tsugami precision CNC machines for the utmost in precision and quality. We apply the same high standards to all other components used in the making of this motor, so it features EZO bearings, a custom made stator and special high temperature copper wire.
At peak the motor outputs 10200W of power (2s), the safe continous power rings in at 5800W. The continues current is 115 Ampere, with a peak value of 230A (2s). Set motor timing for this motor between 5 and 15 deegrees.
External length of the shaft: 35mm
Specifications
| Manufacturer | EGODRIFT |
|---|---|
| Motor class | 4530 |
| Motor configuration | 12N10P |
| Motor weight | 525g (17.25oz) |
| Base Colour | Black |
| Wire colour | Copper |
| Motor wire type | High temperature copper wire |
| Motor shaft | Hardened Steel |
| Shaft diameter | 6.0 mm |
| LiPo cells | 12S |
| Motor kV | 510 kV |
| Roations/Min/Volt (kV) | 510 kV |
| Stator diameter | 45 mm |
| Stator height (mm) | 30 mm |
| Diameter | 56.40 mm |
| Diameter fixing holes (mm) | 4,0 mm |
| Idle current | 3.7A |
| Maximum Current (180s) | 115A (Peak: 230A / 2 seconds) |
| Max. Power (180s) | 5800 W (Peak: 10200W / 2 seconds) |
| Internal resistance (in Ohm) | 19.8 mOhm |
| Connection | Wire / Gold plated plugs |
| Designer | Yutao Zou |
| What’s in the box |
|
