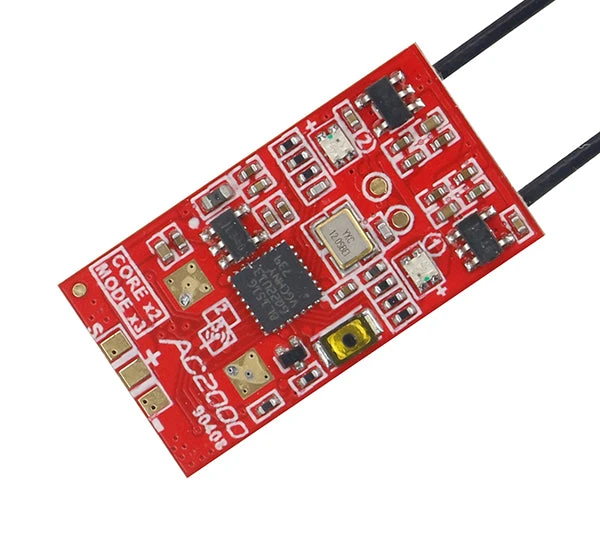

Flywing AC2000 Mini Receiver For FW200

SPECIFICATIONS:

• Item name: AC2000 Mini Receiver
• Rated voltage 4.0V~6.0V
• Size 14 x 26 mm
• Weight 1.8g
• Support S-FHSS(8 CHs)/D16 non-EU(14 CHs)/D16 EU-LBT(14 CHs) three modes, output S.BUS signal
• Perfect fit high reliability medium and small size drone
• The channel 16 of S.BUS value is real-time RSSI, BETAFLIGHT OSD can display this RSSI value in screen.
• Ingenuity hardware dual-core framework, two CC2500+LNA wireless system connect two antennas. Compare other recivers that switch antennas depend on signal strength, AC2000 two antennas can keep receive full-time, greatly enhance the response speed and reliability in execrable wireless environment.

STATUS LED: LED of AC2000 blink twice then solid when power on, the LED meaning as fowllow.

First blink	Second blink	Then LED solid
S-FHSS	reserves	no signal
D16 non-EU	reserves	receive backup signal (brightness meaning signal strength)
D16 EU-LBT	reserves	receive preferred signal (brightness meaning signal strength)

BIND: First blink after power on indicate the receive mode,RED is S-FHSS ,GREEN is D16 non-EU ,YELLOW is D16 EU-LBT .

S-FHSS BIND	D16 non-EU and EU-LBT BIND
Turn on the TX, then power on AC2000 while pressing the key, GREEN LED fast blink meaning bind mode, user can release the key. Bind procedure is completed and the receiver working normally when GREEN LED solid.	Power off the TX, Power on AC2000 while pressing the key, GREEN LED fast blink meaning bind mode. Set TX into D16 bind mode, RED LED solid meaning bind success. TX exit bind mode, GREEN LED solid meaning working normally.

RECEIVE MODE SWITCH: When AC2000 RED or GREEN LED solid, Press the key and hold LED will go off, after 3 seconds YELLOW LED will turn on, release the key AC2000 will switch to another receive mode and restart automatic.



FAILSAFE: Please set failsafe in your radio, depend on the radio S-FHSS, D16 non-EU and D16 EU-LBT shoWuld have at least 2 failsafe settings as follow (different radio may name the setting differently):

• HOLD , S.BUS sent the value when received last time, we suggest switch channel use this setting.
• CUSTOM , this setting can custom S.BUS sent value when no signal.

In most cases, user can set AIL, ELE, YAW middle (CUSTOM 1500), THR low (CUSTOM less than 950), other switch channels use HOLD. In most cases please make sure [ARM] / [DISARM] channel failsafe setting HOLD in [ARM] value. Because if failsafe setting use [DISARM] value when briefly lost signal, the drone will switch in [DISARM] state, once the signal from radio received the drone maybe can’t switch to [ARM] state because THR high (more than 1000), this will result crash when briefly lost signal. So [ARM] / [DISARM] channel failsafe setting should HOLD in [ARM] value or use CUSTOM in [ARM] value, if signal lost a long time because THR low (less than 950), drone will just crash, not fly away.

Package Included:

• 1 x AC2000 Mini Receiver
