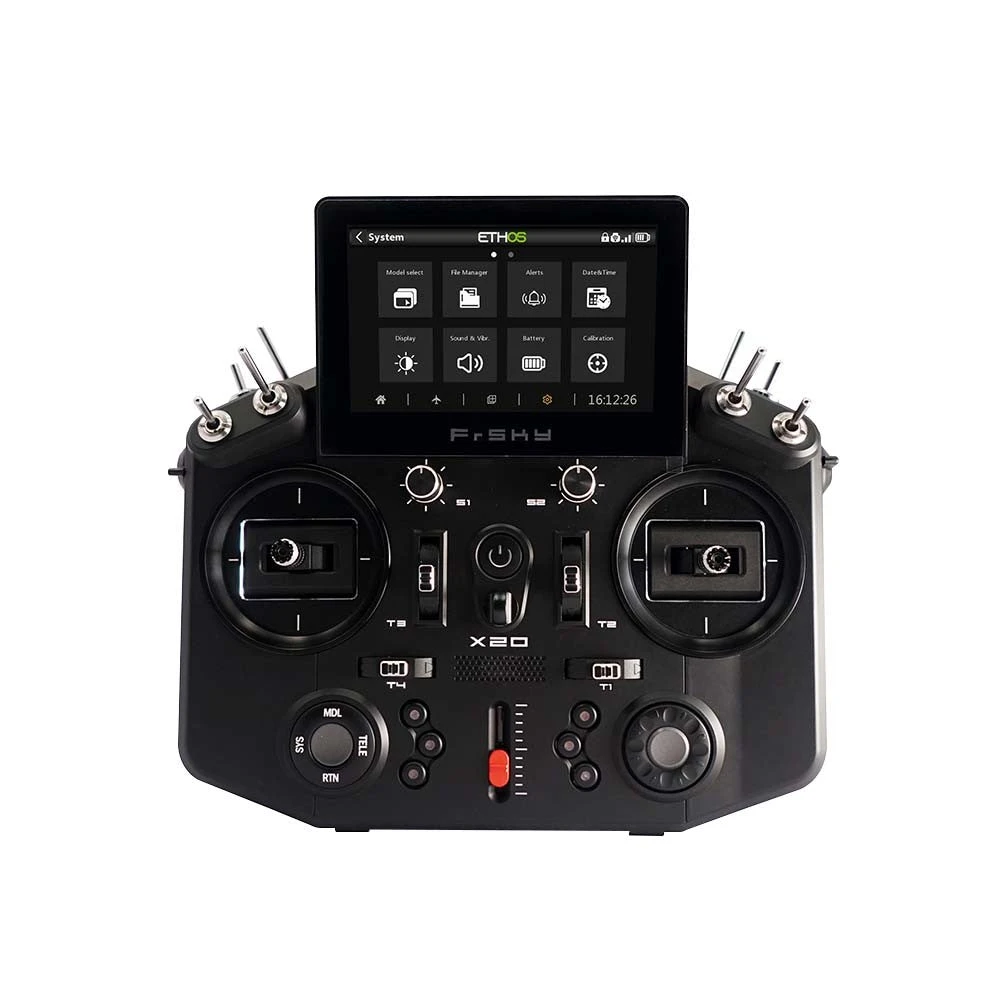

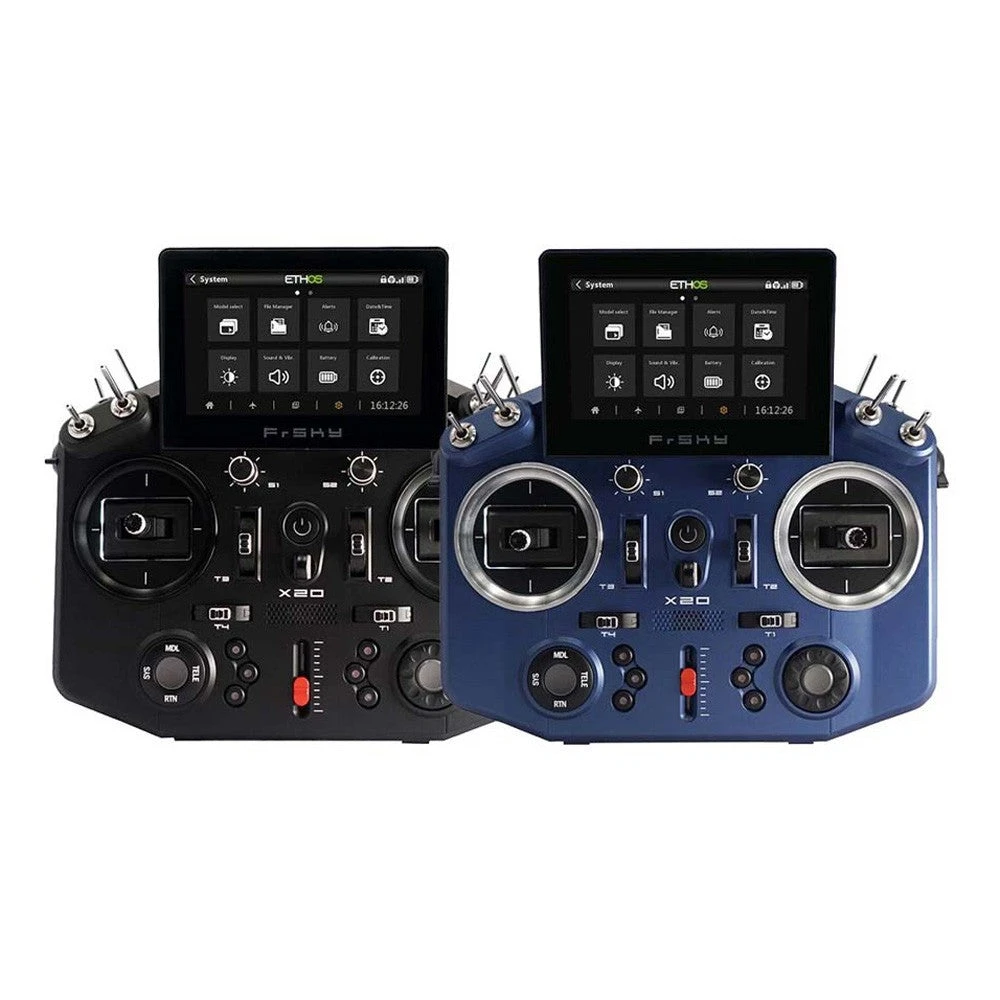

FrSky Tandem X20 Transmitter W/Battery + SD Card + Handle Shells – Black

The FrSky Tandem X20 Series is a dual-band telemetry radio that has great features such as a color touch screen display and an ergonomic design that provides unprecedented comfort when held. On the RF side, FrSky has introduced a powerful and reliable TD dual-band RF system, which features the FrSky 900MHz and 2.4GHz in one combined RF system. The TD dual-band RF system is characterized by simultaneous dual-band remote controsl with telemetry, and superb end-to-end 4ms latency performance. When combined with ETHOS, a completely new operating system, FrSky’s Tandem X20 Series provides users with a powerful, intuitive, and flexible experience to enjoy across the entire world of RC.

A Very Well Thought Through Radio Design

Tandem X20 Series design has focused highly on technology, ergonomics, and user experience as follows:

Hardware Design

The overall weight of Tandem X20 has been kept low, less than 1000 grams, by incorporating the use of lightweight materials while maintaining a strong and robust quality. The radio system comes with an 800 x 480-pixel color touch screen display on the top area of the radio which is easy to read indoors and in direct sunlight outdoors.

The Tandem X20 has been complemented with 6 customizable buttons on the front case that allows for quick switching between features, ideal to be used for flight modes. Additional 2 rear momentary buttons have been introduced to provide flexibility, in the ideal position for DLG pilots launch fingers no matter if you are left or right-handed. All the trims and pots adopt the CNC metal hardware that makes the radio more endurable.

Ergonomics

The two side handle grips of the Tandem X20 Series are made with a high-quality comfortable material, designed ergonomically to fit the hand very well. Both hall gimbals are well-positioned which makes the sticks very close to the grip edge allowing for easy to reach and control, also the spring tension can be adjusted.

Internal 900MHz/2.4GHz Dual-Band & External Module Bay

The TD dual-band RF system combines both the features and advantages of FrSky 900MHz and 2.4GHz RF together in one system. The TD features real simultaneous dual-band long-range control with telemetry that achieves reliable end-to-end 4ms latency while maintaining a robust and high-quality signal link. The entire range of TD, ACCESS & ACCST D16 receivers are supported. The built-in TANDEM RF System supports ACCESS and ACCST D16 protocols.

In addition, the Tandem X20 includes a rear Lite version module bay to offer more options to connect external devices. The external Lite module bay supports R9M Lite, R9M PRO-Lite, XJT Lite, etc. FrSky welcomes working compatibility with the 3rd party products with their own developed technology following FrSky verified 3rd party compatibility-testing program.

ETHOS Operating System

ETHOS, as a thoroughly new operating system, designed from the ground up by RC experts, grants users a powerful, intuitive, and flexible experience that can maximize the fun of RC Hobby!

Features

• Built-in TD 900M/2.4G Dual-Band Internal RF Module Supports Multiple Working Modes
• 2.4G ACCST D16Mode (Compatible with ACCST Receivers with D16 V2 or later FW)
• 2.4G ACCESSMode (Compatible with ACCESS Receivers)
• 900M ACCESSMode (Compatible with ACCESS R9 868/915MHz Receivers)
• (*Capable of simultaneous working under ACCESS mode)
• 2.4G & 900M TD Mode (Compatible with TD Receivers)
• Super-low latency and long-range control with telemetry
• (*Up to 50 to 100KM range and down to 4ms end-to-end latency)
• 800*480 Color Touch-Screen Displays
• 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
• Lite Type External Module Bay
• Built-in 6-axis Gyroscope Sensor
• All CNC Metal Trims, Knobs
• Haptic Vibration Alerts and Voice Speech Outputs
• Supports SWR Indicator Warning
• Supports Recharge System for 2S Li-ion Battery (USB Type-C Interface)
• High-speed PARA Wireless Training System (Compatible with FreeLink App3.0)
• High-Precision Hall-Sensor Gimbals with Metal Panel
• ETHOS: The more powerful, Flexible, and Intuitive OS for your radio.
• Clear and Intuitive UI Design
• Supports Dual Operation Modes of Radio Display (Touch and Non-Touch)
• Supports Multi-Language Switching
• Hardware/Software Version and Factory Version Detection
• Supports running LUA Scripts

Specifications

• Dimension: 212*200*95 mm (L*W*H)
• Weight: 809g (without battery)
• Operating system: ETHOS
• Internal RF module: TANDEM
• Number of Channels: 16/24 channels
• Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery 4000mah included)
• Operating Temperature: -10°C~60°C(14°F~140°F)
• Operating Current: [email protected] (typ.)
• Charging Current: ≤1A ±200mA
• USB Adaptor Voltage: 5V+0.2V
• USB Adaptor Current: >2.0A
• Backlit touchable LCD resolution: 800*480
• Compatibility: ACCST D16 & ACCESS & TD receivers
• 4Gb Micro SD Card included

Video

Includes

• 1 x X20 Transmitter
