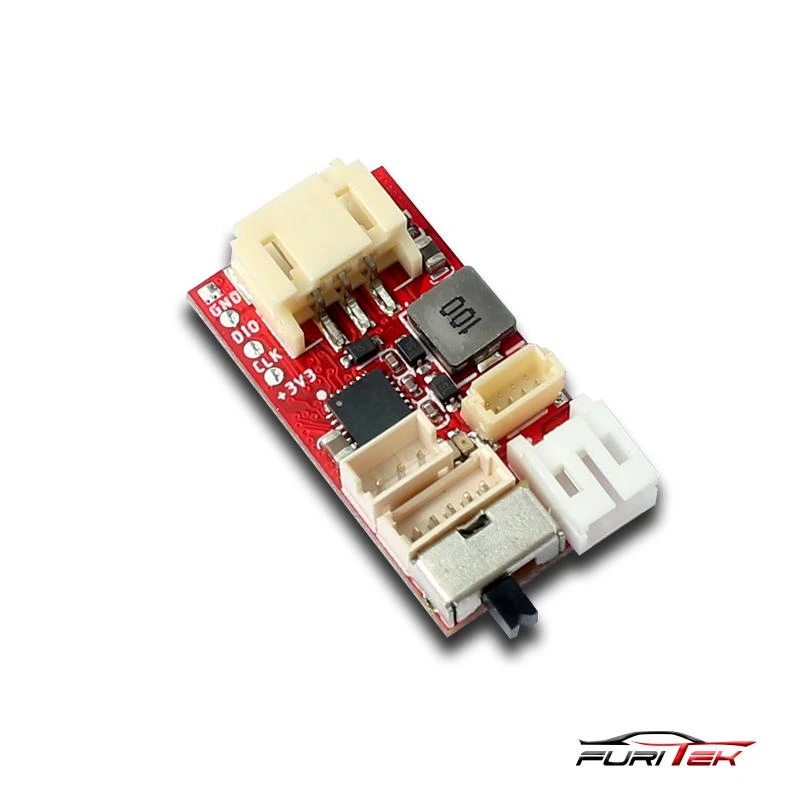

FURITEK LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR AXIAL SCX24 WITH FOC TECHNOLOGY

*** Furitek Esc is not compatible with HRZ00015 Board ***

Features:
– Support sensorless brushless DC and brushed DC motor (config via app, default is brushless).
– FOC (Field-oriented control) technology.
– Plug & Play designed for AXIAL SCX24 crawlers.
– 5V/ 6.5V 2.5A Built-in BEC (config via app).
– Support 2S-3S lipo battery – Mini size and lightweight.
– Super easy programming via App on both Android and IOS.
– Firmware update available (Bluetooth module required).
– Real-time telemetry up to 10Hz – Ability to run with stock TX/RX or any other TX/RX.



⚠️⚠️⚠️ WARNING ⚠️⚠️⚠️
3s only works best with 2204 1400kv motors and 050 Brushed Motor


Specifications:
– Support 2S-3S lipo battery
– BIG BEC: 5V or 6.5V 2.5A (Don’t need external BEC if use big Servo)
– Constant current: 30A
– Burst current: 50A
– Build-in Switch power
– Dimension (mm): 28(L)x 15.5(W)
– Weight: 3.7 gram

Note: Furitek ESC only support: Komodo 2204 1400kv, Micro Komodo 3450kv, Mini Komodo 2000kv. Don’t run motors with high KV like 4100 on 3S

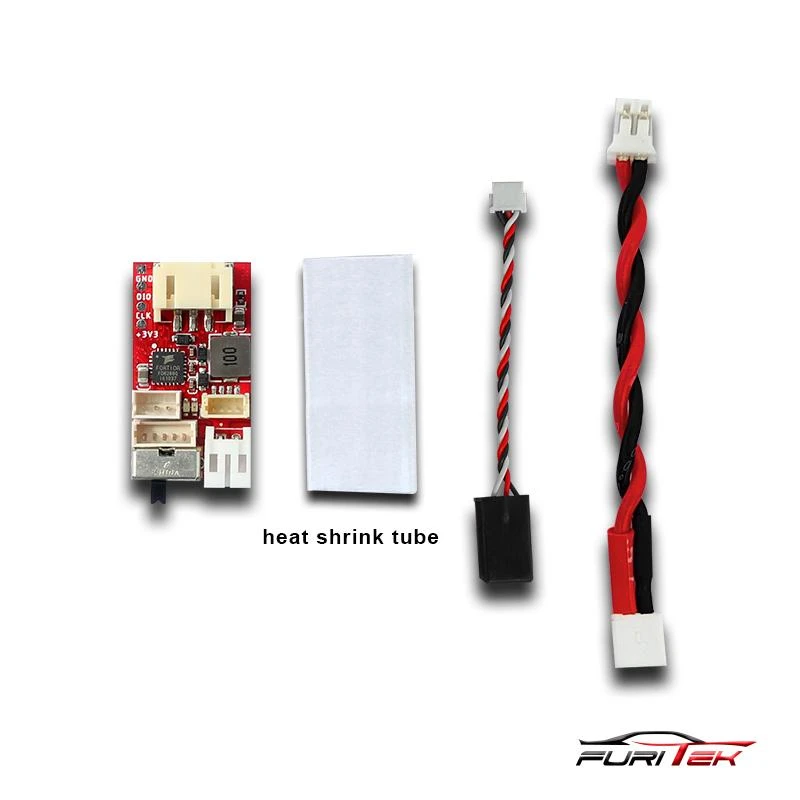

What’s included in the package?
1. Lizard Pro Esc x 1pc
2. Power Cable x 1pc
3. Heat Shrinkable Tube x 1 pc
4. Servo to Jst Receiver x 1 pc
