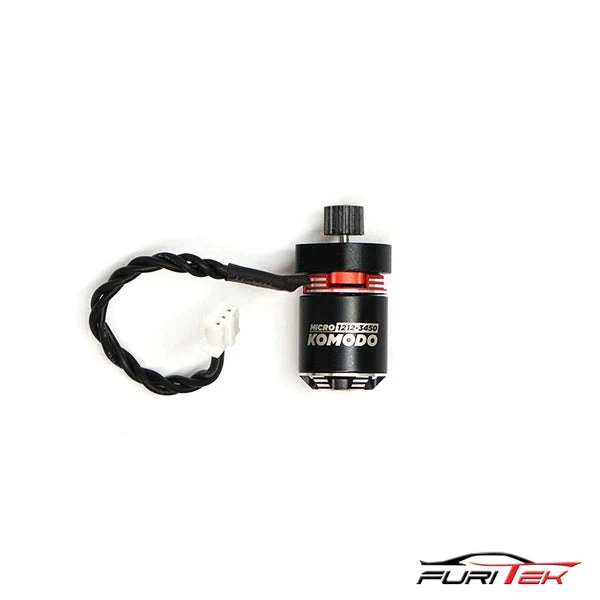

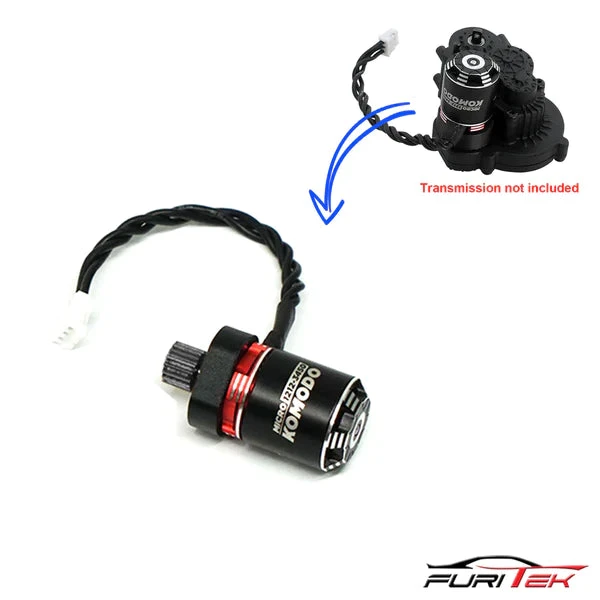

FURITEK MICRO KOMODO BRUSHLESS MOTOR WITH STEEL PINION FOR FCX24

Features:
12 Pole hi-torque motor design.
Super thin (0.2 mm) stator laminations—lower eddy losses—maximizes efficiency.
Japanese NMB –High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.
High purity and higher temperature single copper windings —lower copper losses,
very good heat dissipating–maximizes efficiency.

Specifications:

• KV (RPM/Motor) – 3450
• No-load current @10V – 0.7A
• Watt – 120W
• Battery – 2-3S
• Resistance – 0.16 Ohms
• Max Current – 10A
• Slot/Pole – 12
• Motor size (mm) – 15.5×20.6
• Shaft (mm) – 1.5x6Weight (g) – 17.5
