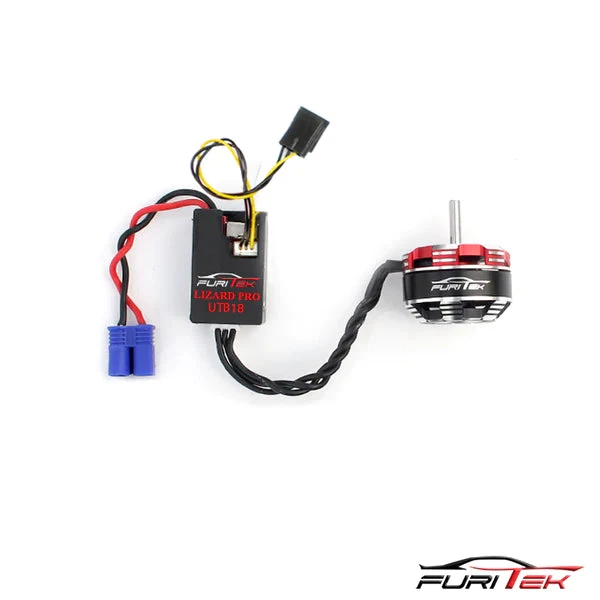

FURITEK STINGER UTB18 BRUSHLESS POWER SYSTEM FOR AXIAL UTB18 CAPRA

The Furitek flagship system, the STINGER for SCX24 is now available for the AXIAL UTB18 Capra owners. This combo includes a 40A/70A Lizard Pro esc and a Komodo 2204-2500kv brushless motor with everything plug and play, ready to install on the Axial UTB18 Capra without the need of soldering or changing connectors.

Super smooth, high torque and easily programmable on smart phone app, this FOC technology esc will bring your Axial UTB18 Capra to the next level of performance.

Features:
– Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
– FOC (Field-oriented control) technology
– Built-in BLUETOOTH module inside
– Plug & Play designed for AXIAL UTB18 Capra
– 5V/ 6.5V 2A Built-in BEC (config via app)
– Support 2S-3S lipo battery
– Mini size and lightweight
– Super easy programming via App on both Android and IOS
– Firmware update available
– Real-time telemetry up to 10Hz
– Required external TX/RX

ESC Specifications :
– Support 2S-3S lipo battery
– BIG BEC : 5V or 6.5V 2A (Don’t need external BEC if use big Servo)
– Constant current: 40A
– Burst current : 70A
– Built-in Bluetooth module
– Waterproof : NO
– Dimension : 1.0 x 0.6 x 0.3in (26×15.5x9mm)
– Weight: 0.3 oz (8.3 gr)

Motor Specifications :
– KV (RPM/Volt): 2500
– No-load Current(@10v): 0.5A
– Watt: 180W
– Battery: 2-4S
– Resistance: 0.24ohm
– Max Current: 15A
– Slot/Pole: 12S14P
– Motor Size: Ø 28 * 19 mm
– Stator Size: 2204
– Weight(g): 0.3 oz (8.3 gr)
*** Only recommended for KOMODO 118 2500kv
*** Fit with stock pinion gear
