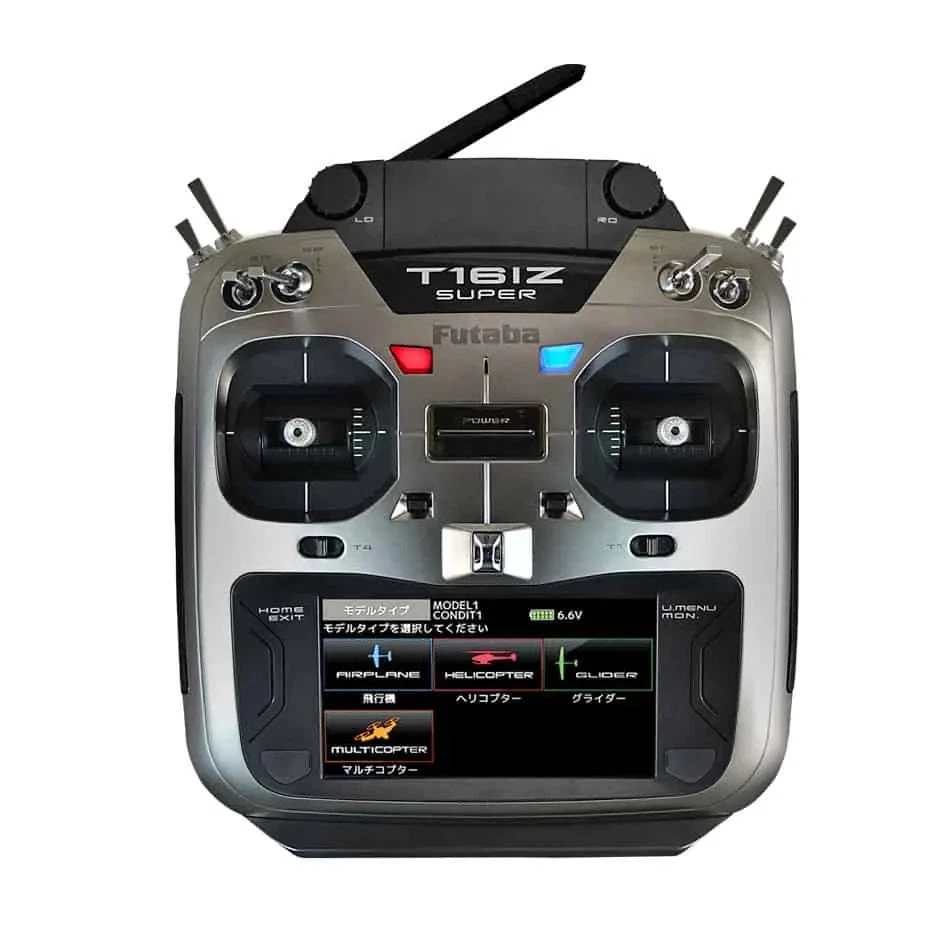

Futaba 16IZS 18-Channel FASSTest 2.4 GHz Transmitter No Receiver (Heli Version)

FEATURES

FASSTEST SYSTEM:
The Futaba 16IZS transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.

S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

USB SIMULATOR CONTROL:
The T16IZS offers USB C compatibility for simulator control when used with Windows OS Joystick function.

COLOR TOUCH SCREEN LCD:
T16IZS has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

MULTI HOLDER:
T16IZS Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.

Voice Telemetry:
The Futaba T16IZS transmitter allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.

SECURE DATA (SD CARD):
Model data files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZS.

HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH):
The high capacity 2S Lithium Polymer battery gives you extended flight time.

EDITING:
The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.

FUNCTIONS:
The internal processor the response time. Most of the mixing functions are operated by curves which give you very precise settings.

STICK:
Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.

VIBRATION FUNCTION:
Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.

FUTABA 16IZS TRANSMITTER SPECS

TRANSMITTER FREQUENCY:
2.4 GHz band

OPERATING SYSTEM:
2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System

POWER SUPPLY:
7.4 V LT2F2000B Lithium-polymer battery

RF POWER OUTPUT:
100 mW EIRP

Compatible Receivers*

S-FHSS PROTOCOL
R2008GS
R2008SB
R2106SB
R2001SB
R2000SBM

T-FHSS TELEMETRY PROTOCOL
R3001SB
R3004SB
R3006SB
R3008SB

T-FHSS MONO (NON-TELEMETRY)
R3206SBM
R3106GF

FASST7 AND FASST MULTI
R6004FF
R6008HS
R6014HS
R6016HF
R616FFM
R617FS
R6202SBW
R6203SB
R6208SB
R6303SB
R6303SBE

FASSTest12 and FASSTest18
R7003SB
R7006SB
R7008SB
R7108SB
R7014SB
