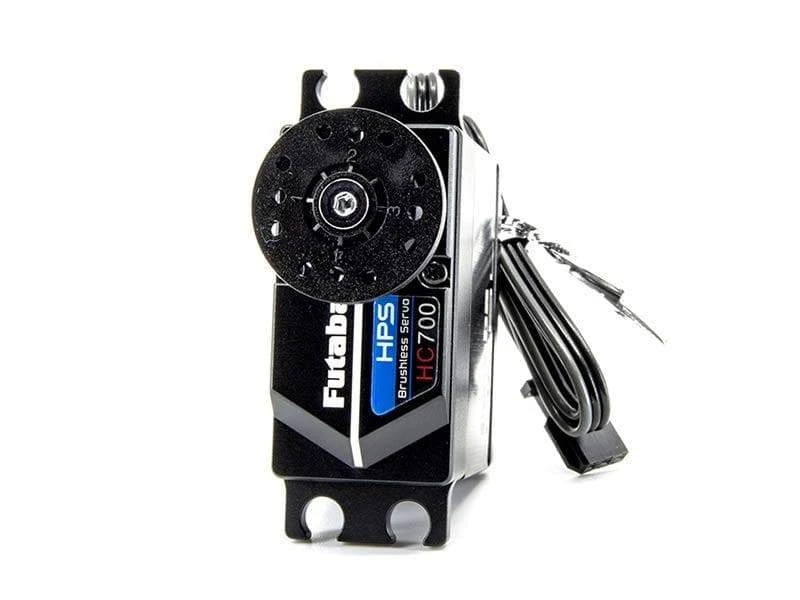

Futaba HPS-HC700 HV Standard Helicopter Servo (For BEC – S.Bus2/Brushless)

High Performance Servo with Brushless Motor (Neutral Pulse Width: Default 1520μs, optional 760μs)

FEATURES:
– Suitable for all purpose RC helicopters.
– Programmable/HV Brushless Servo.
– Custom New high power Brushless Motor.
– Programmable and compatible with S.Bus and S.Bus2 systems.
– Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
– Upper/middle/bottom: Aluminum Case
– 2S LiPo Suitable

SPEED:
0.08 sec/60°at 6.6V
0.075 sec/60° at 7.4V

TORQUE:
18.0 kgf/cm at 6.6V
250.0 ozf/in at 6.6V
20.0 kgf/cm at 7.4V
277.8 ozf/in at 7.4V

SIZE:
40.5 mm x 21 mm x 37.8 mm
1.59 in x 0.83 in x 1.49 in

WEIGHT:
73 g
2.57 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.8-8.4V

NO DRY BATTERY USE
