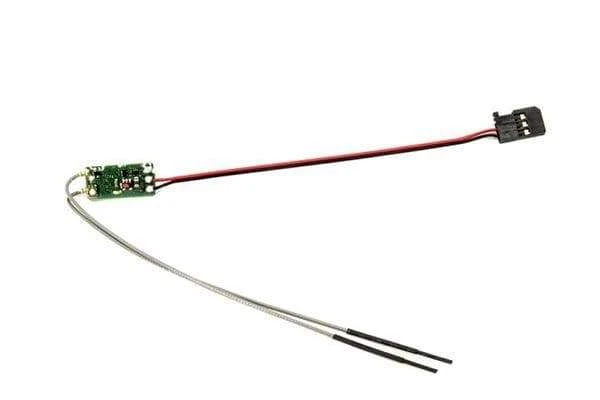

Futaba R2000SBM S-FHSS 2.4 GHz System S.Bus Port And RSSI

Conventional System For FPV Drone/Small Size Models

DUAL ANTENNA DIVERSITY

SIZE:
20 mm x 10 mm x 3 mm
0.79 in x 0.39 in x 0.12 in

WEIGHT:
2.9 g
0.1 oz

POWER REQUIREMENTS:
DC 3.7V~8.4V

BATTERY F/S VOLTAGE:
3.8V

BE SURE THAT WHEN USING ESC’S REGULATED OUTPUT THE CURRENT CAPACITY OF THE ESC MEETS YOUR USAGE CONDITION.

THE BATTERY F/S VOLTAGE IS SET FOR 4-CELL NiCd/NiMH BATTERY. BATTERY F/S FUNCTION DOESN’T WORK PROPERLY WHEN A DIFFERENT TYPE OF BATTERY IS USED.

R2000SBM CAN BE USED WITH UP TO 8 CHANNELS. THE FAIL SAFE FUNCTION CAN BE SET FOR EACH CHANNEL. HOWEVER, IT DIFFERS ACCORDING TO THE TRANSMITTER.
