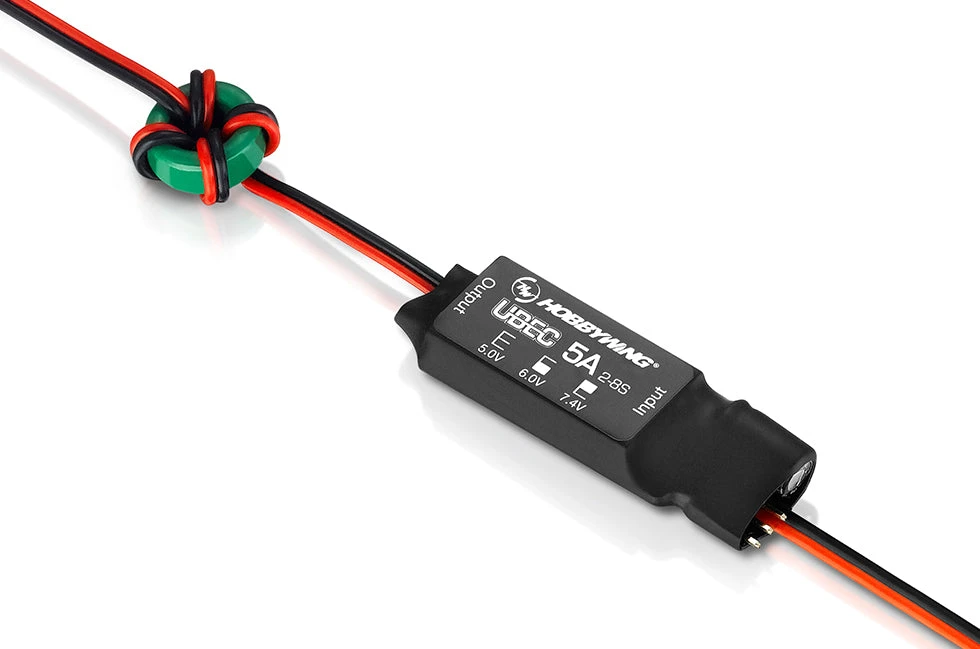

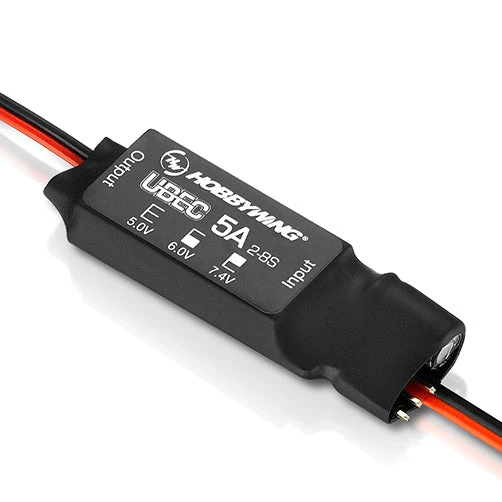

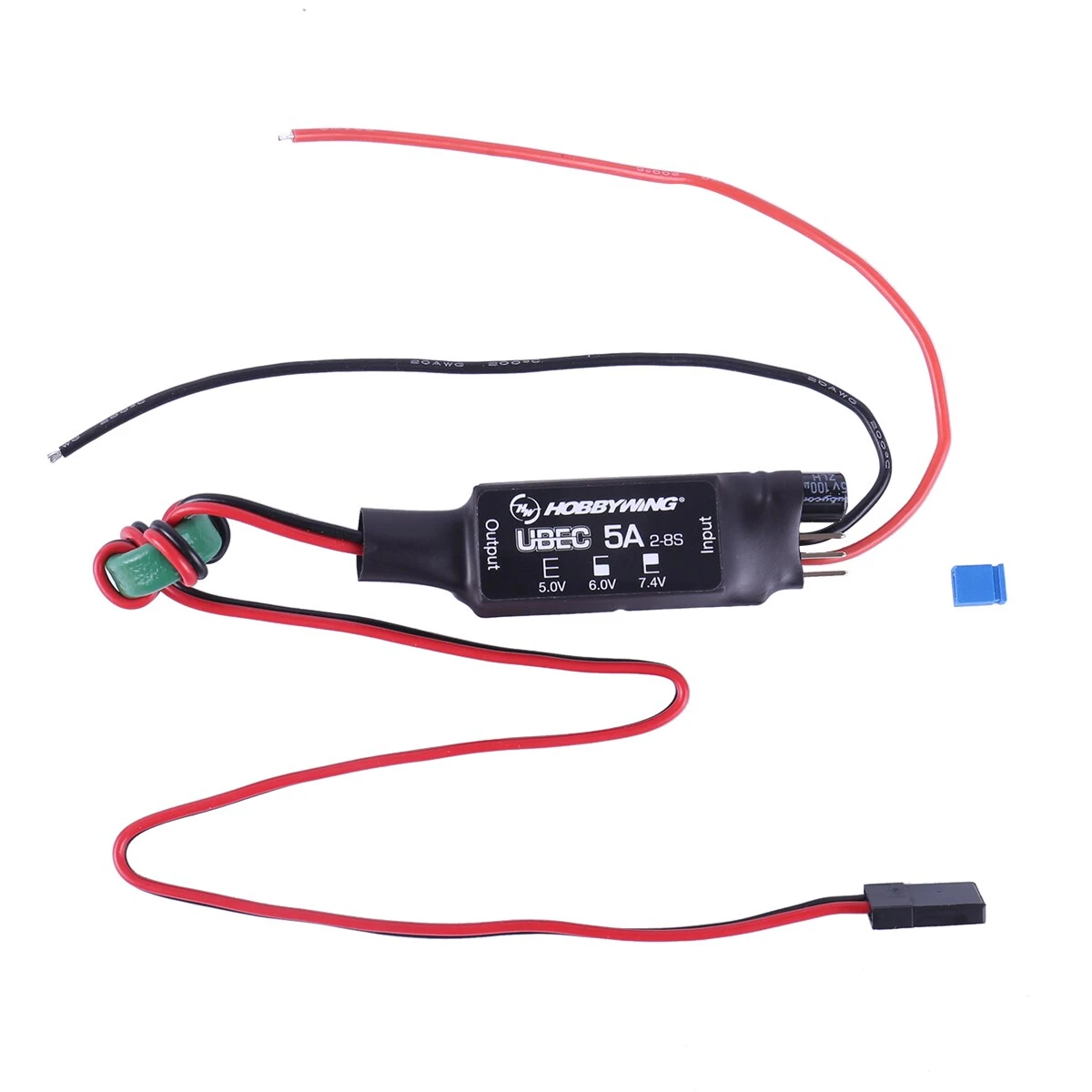

HobbyWing 5.0-7.4V 5A/15A UBEC Air V2 (2-8S)

Overview

The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. UBEC output voltage is adjustable in three stages (5.0/6.0/7.4 V) with a continuous current of 5A and a maximum of 15A. The voltage specifications allow the use for a wide range of servos and electrical equipments. The UBEC is equipped with overcurrent protection, output short-circuit protection, overheat protection.

Manual

Specifications

Model：UBEC 5A
Input voltage：2-8S Lipo
Output voltage：5.0 / 6.0 / 7.4 V (3 options adjustable)
Output current：Continuous 5A，Instantaneous 15A
Measurement：50*17*10mm
Weight ：21g
