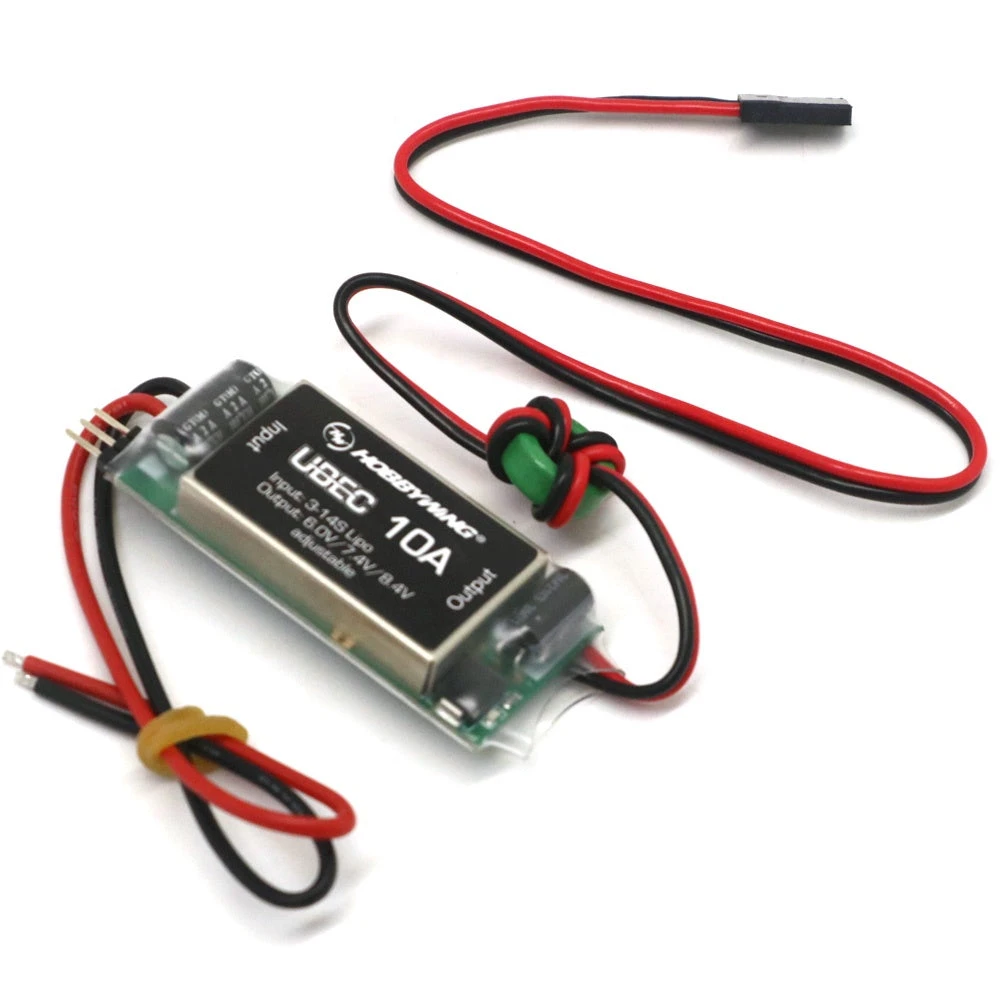

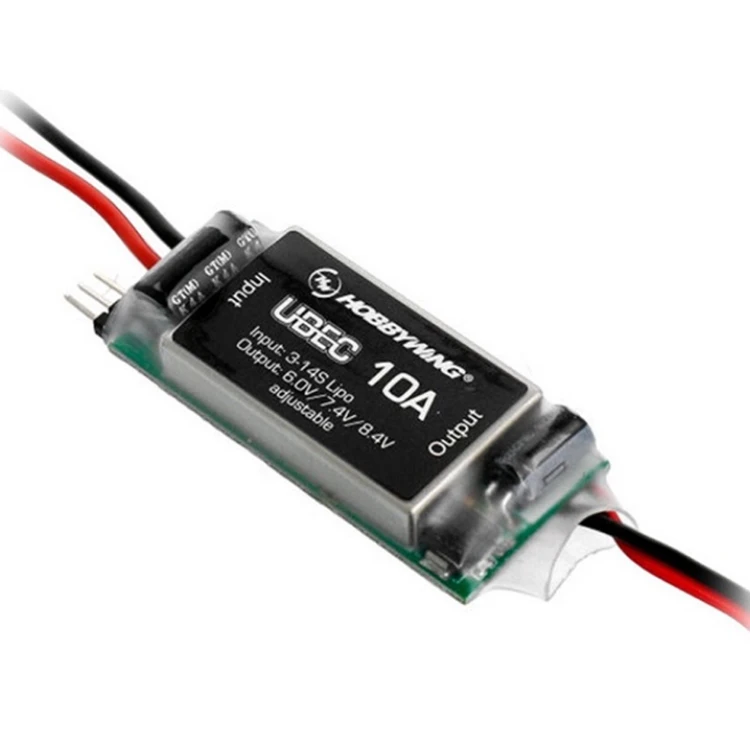

HobbyWing 6.0-8.4V 10A/25A HV UBEC (3-14S)

Overview

The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. UBEC output voltage is adjustable in three stages (6.0/7.4/8.4 V) with a continuous current of 10A and a maximum of 25A. The voltage specifications allow the use for a wide range of servos and electrical equipments. The UBEC is equipped with overcurrent protection, output short-circuit protection, overheat protection.

Specifications

Model：UBEC 10A
Input voltage：3-14S Lipo
Output voltage：6.0 / 7.4 / 8.4 V (3 options adjustable)
Output current：Continuous 10A，Instantaneous 25A
Measurement：55*25*12mm
Weight ：35g
