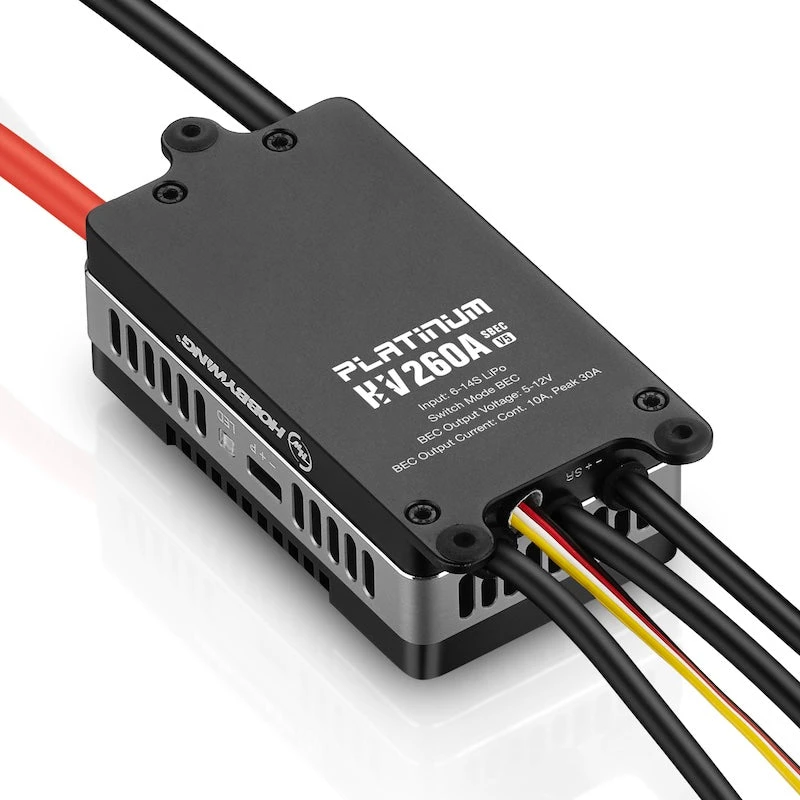

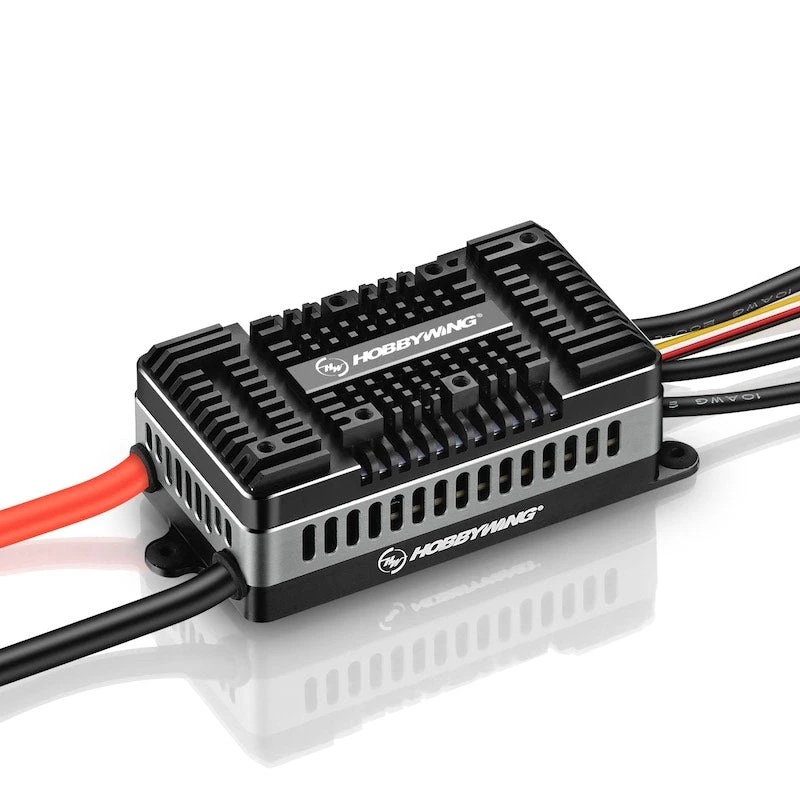

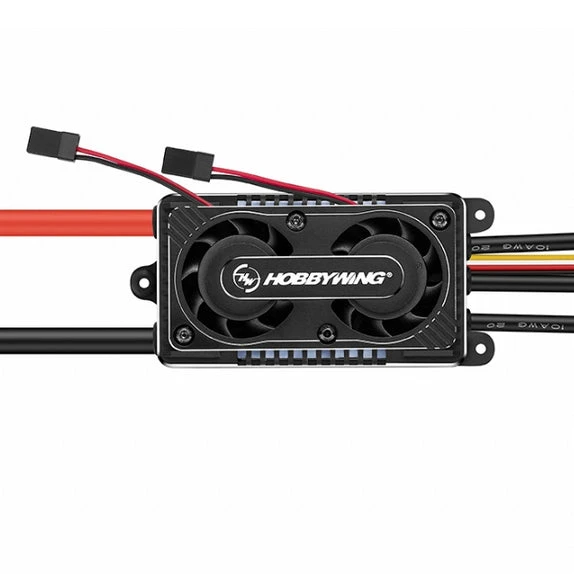

Hobbywing Platinum 260A HV V5 ESC (6-14S) – SBEC

Continuous/Peak current

260A / 400A

Input voltage

6-14S LiPo battery

BEC

Switch Mode BEC; output voltage 5-12V adjustable (adjusted 0.1V); output current cont. 10A, Peak 30A

Input/Output wires

1 x black and 1x red 8AWG silicone wires / 3 x black 10AWG silicone wires

Independent parameter programming interface

Connect LCD program box or OTA module, or to power the cooling fan

LED light

Display the statuses and fault alerts

Size/Weight

89 x 50 x 34mm / 297g (With wires)

Mounting holes

M3, 39 x 98mm

The scope of application

700-800 class electric helicopter (main rotor length 700-880mm), or fixed-wing
