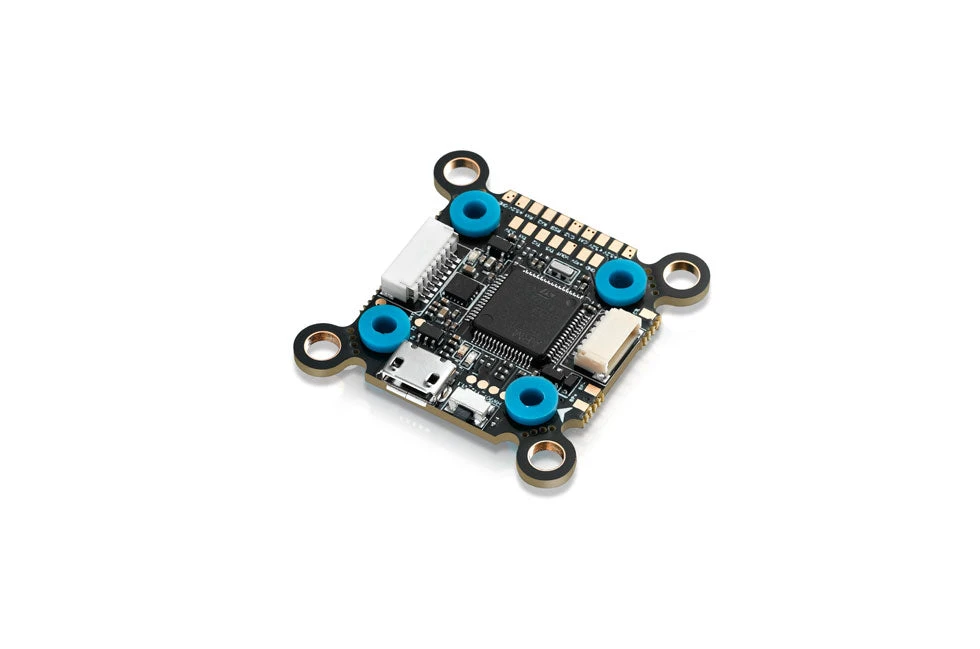

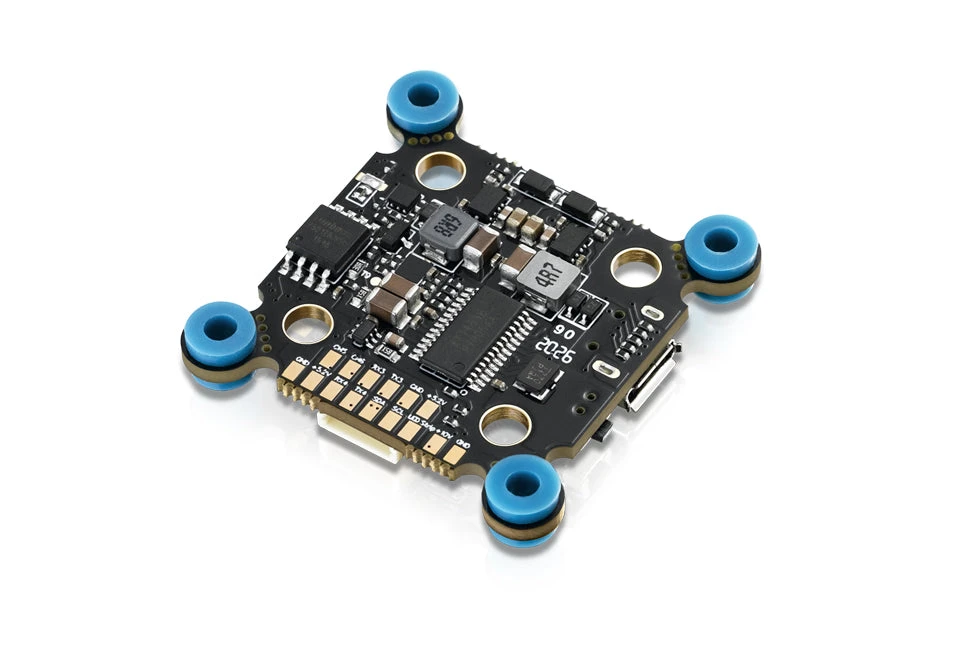

HobbyWing XRotor Flight Controller F7

Features

• Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor.
• Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
• DJI image transmission system port equipped with corresponding flat cable
• Supports bidirectional DShot digital throttle communication.
• Unique installation design and shock absorption structure.
• On-board large capacity Flash memory chip.
• On-board 5V & 12V dual BEC circuit.
• On-board Pit Switch module.

Specifications

• Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc
• Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• Mounting Holes: Convertible 20x20mm / 30.5×30.5mm
• Programming via: Betaflight/Cleanflight-configurator
• Firmware: HOBBYWING_XROTORF7CONV
• Voltage Monitoring: Supported
• Current Monitoring: Supported
• FC Programming: Supported
• External Buzzer: Supported
• BEC: [email protected]: [email protected]
• LED Control: Supported
• USB Port: MicroUSB
• Size: 32x32mm
• OSD: Built-in
• Weight: 3.3g

Manual

• Hobbywing XRotor F7 FC

Includes

• 1x Hobbywing XRotor F7 Convertible Flight Controller
• 1x Soft Mounting Grommets Set
• 1x Signal Cable
