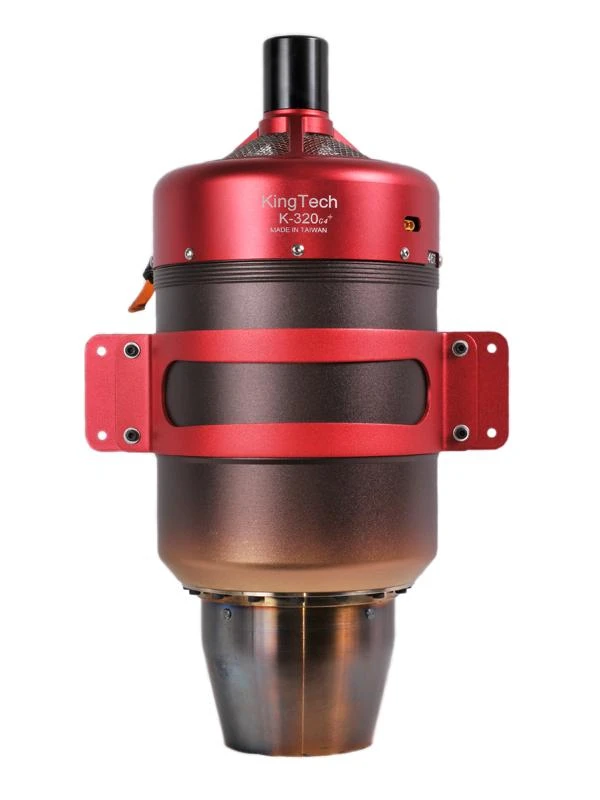

KingTech K-320G4+ Turbine Engine



Special Order: Processing time is about 3 – 10 business days



K-320G4 DESCRIPTION

• KingTech G4 utilizes SBus data transmission.
  • Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
  • The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
  • Pump: digital sbus brushless pump
  • A micro USB connector is present for a future connectivity of wireless mobile apps.
  • The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
  • After a run cycle and receiver switched off, GSU will remain on only until cool down completes.



K-320G4 SPECIFICATIONS

Diameter: 132.5 mm ( 5-1/4″ )
Length: 335 mm ( 13-1/4″ )
Weight: 2.9 kg ( 6.4 lb )
RPM Range: up to 30,000-100,000RPM
Max Thrust: 32 kg ( 71 lb )
EGT: 700°C max
Fuel consumption: 870 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$350

G4 MODEL COMPONENTS LIST

• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attchments
• Instruction Manual
