KingTech K-70G4 Turbine Engine (for Boomerang Turbinator 2)

• KingTech G4 utilizes SBus data transmission.
• Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
• The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
• A micro USB connector is present for a future connectivity of wireless mobile apps.
• The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
• After a run cycle and receiver switched off, GSU will remain on only until cool down completes.

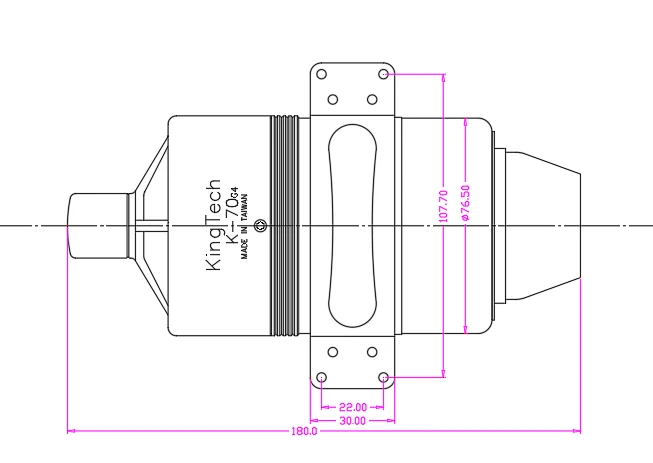

K-70G4 SPECIFICATIONS

Diameter: 76mm ( 2.99” )
Length: 180mm ( 7.086” )
Weight: 720g ( 1 lb 9.3 oz )
Max. RPM: up to 180000 MAX Thrust: 7kg @ 15° C ( 15.5 lb @ 59° F )
EGT: 700°C max
Fuel consumption: 230 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$300

G4 MODEL COMPONENTS LIST

• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attchments
• Instruction Manual
