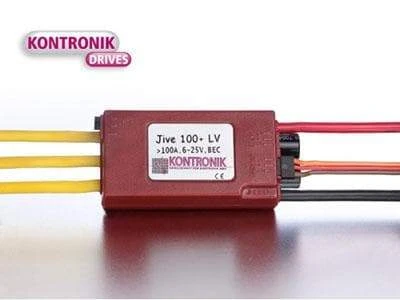

Kontronik 4604 Jive 100+ LV Brushless ESC W/BEC (Version 13)

Specs:
– Cell count: 2-6 cell LiPo
– Operating voltage: 6-25V
– Continuous current: 100A
– Size: 62x32x15mm
– Weight without cables: 52g
– Weight with cables: 92g
– Cable cross-section: 4/6mm²

BEC Specs:
– BEC current continuous: 5A
– BEC current max.: 15A
– BEC voltage: 5,5V
– BEC adjustable with ProgCARD: 5-6V
– BEC short circuit protection

Features:
– Auto Programming Mode
– Stick position programmable
– Mode programming
– ProgCARD ability
– RPM Control
– EMK brake can be disabled
– EMK brake adjustable (for F3A)
– Short circuit protection
– False start protection
– Current limiting
– Over-temperature protection
– Under-voltage cutoff
– Under-voltage can be disabled
– Under-voltage with automatic adjustment for NiCd / NiMH / Li-Ion / LiPo
– Variable cutoff voltage / cell
– Slow down instead of cutoff
– Active freewheeling circuit
– LED status display
– Overload alarm
– PWM frequency 8-32kHz
– Total copper thickness 630µm
– Reversable rotation direction
