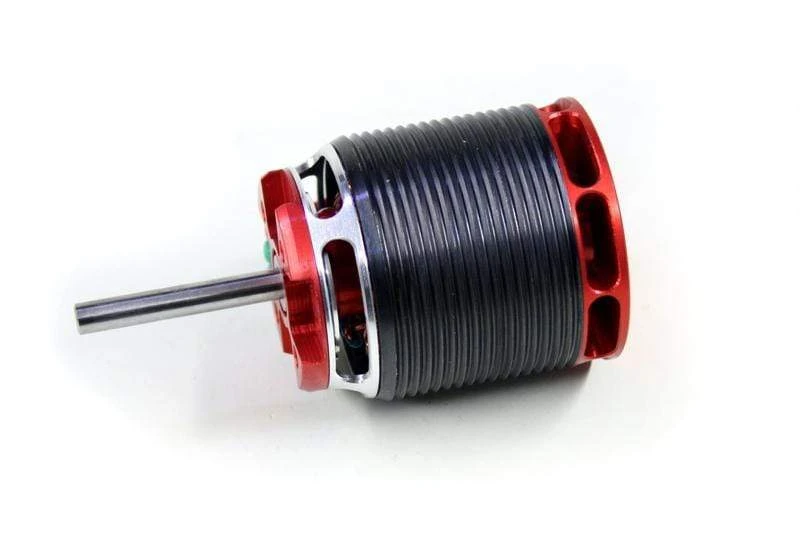

Kontronik Pyro 700-34L Brushless Motor Long Shaft

Special Order: Process 3 – 5 business days

The PYRO 700 is the drive for helicopters of the 600 and 700 class. The PYRO 700 is well prepared for the extreme loads in 3D flight. Depending on the installation conditions, it may be useful to use a counter bearing in order to use the full power. That is why all PYRO 700 are also available in three wavelengths.

Over 2.5kW continuous power make combustion engines pale. The speeds are perfectly matched to drives up to 12 S.

This is what distinguishes the PYRO 700:

• Neodymium magnets heat resistant up to 150 ° C
• Special enamelled wire up to 300 ° C
• Custom sheet metal cut
• Optimized airflow
• Radial fan
• Optimized magnetic circuit

Technical specifications:

• Manufacturer: Kontronik
• Type: Outrunner
• Nominal speed [kv]: 340
• Max. Operating voltage [V]: 88.2
• Power [W]: 2500
• Case diameter [mm]: 50.8
• Case length [mm]: 61.5
• Weight [g]: 395.0
• Shaft diameter [mm]: 6.00
• Free wavelength [mm]: 40.00
• Number of poles: 14
• Internal resistance [Ω]: 0.032
• Mounting: 4xM4 (bolt circle Ø 30mm)
