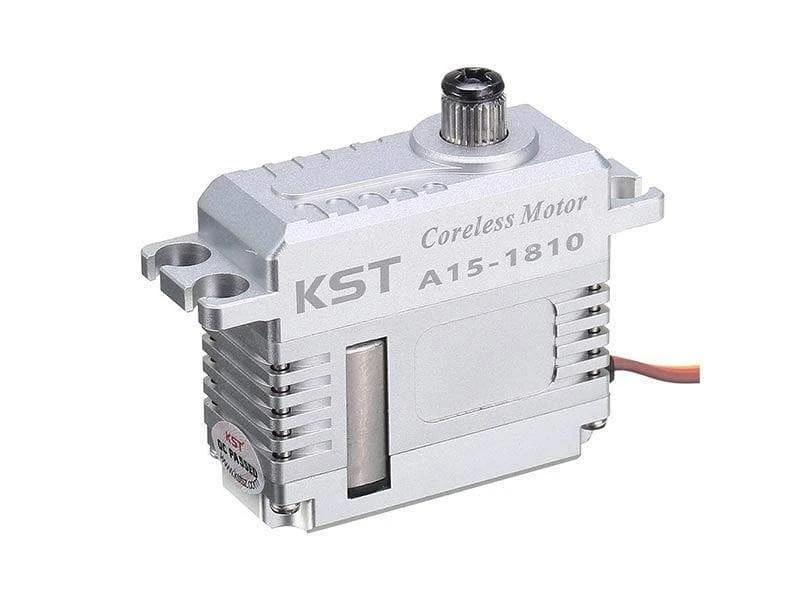

KST A15-1810 18KG Coreless High Torque Metal Gear Digital Servo
Original price was: $99.00.$69.30Current price is: $69.30.
- Superior Quality Goods
- Best price, safe shopping guarantee
- SSL encryption, absolutely safe shopping
- Buy quality, buy with us.
Description:
Brand Name: KST
Item Name: Coreless servo
Item NO.: A15-1810
Case Material: Aluminum Alloy
Motor Type: Coreless
Gear Set Material: Phosphor Bronze + Hardened Steel
Position Sensor: Potentionmeter
Position Feedback: Optional
Shielded Connecting Cable: 26AWG
Dimension: 35.5x15x32.5mm
Weight: 42g
Operation Voltage(rated): 7.4V
Operation Voltage Range: DC 6.0V – 8.4V
Torque: [email protected], [email protected], [email protected]
Speed: 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
Travel Angle: ±50° when 1000-2000us
Operating Temperature Range: -10℃ ~ +65℃
PWM Command SIgnal:
Signal Voltage TTL-Level: HIGH: min.3.3V, max.5.0V
TTL-Level: LOW: min.0.0V, max.1.5V
Pulse Lengths 900-2100μs
Pulse Lengths for Position -50° /center/+50°
1000μs/1500μs/2000μs
Resolution <2μs

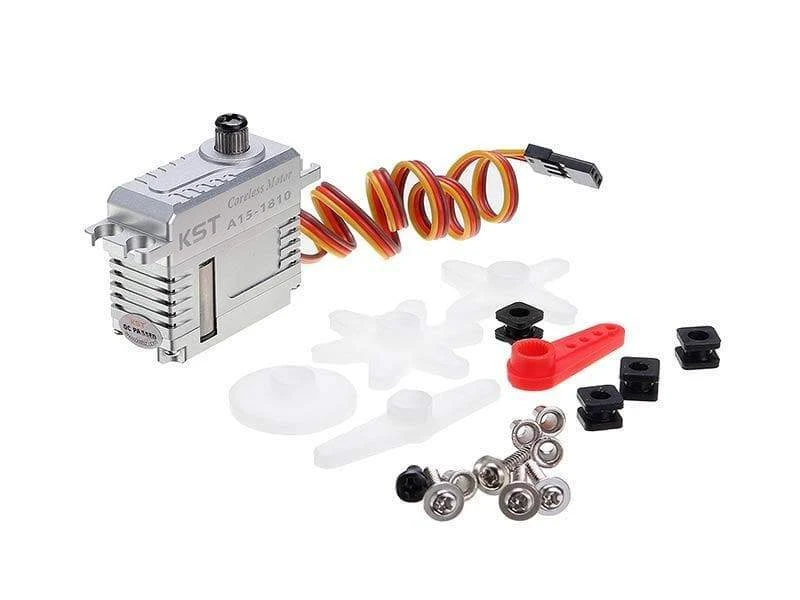

Package Included:
1x KST A15-1810 Digital Coreless Servo
1x Accessories
