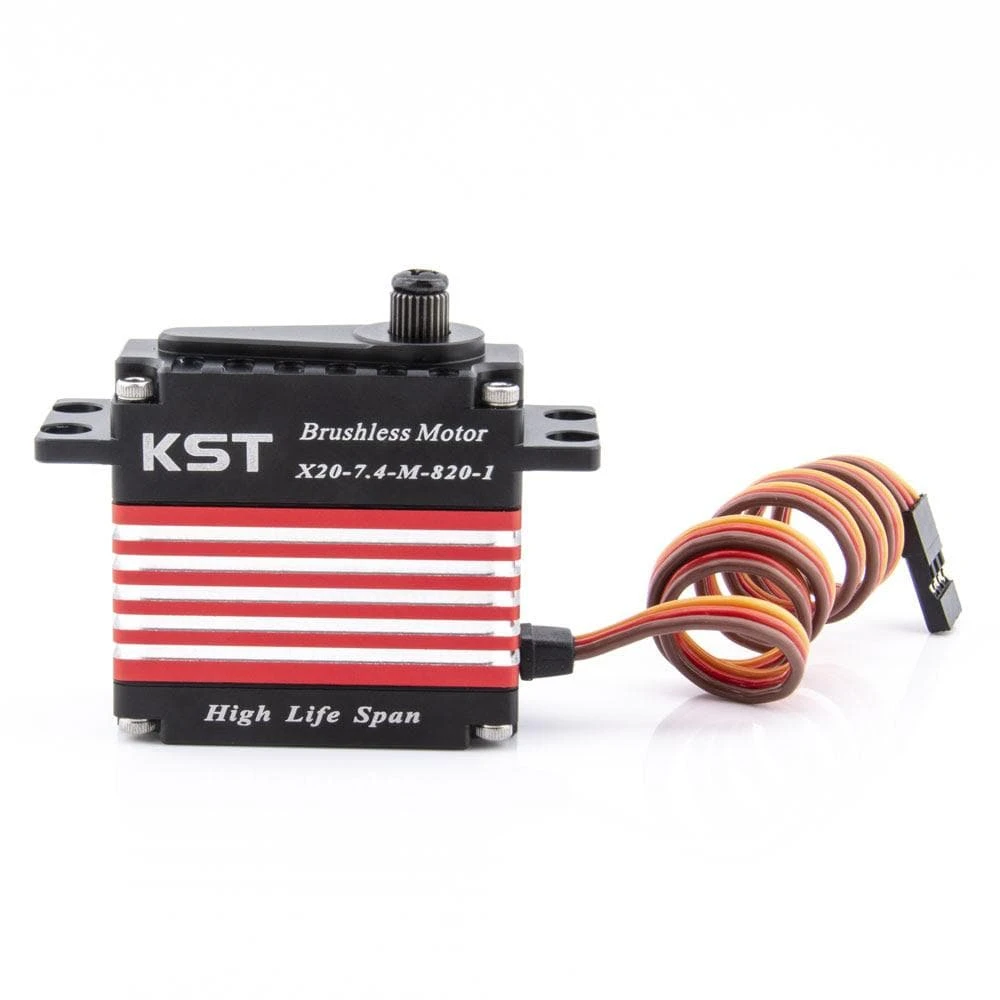

KST X20-7.4-M-820 HV Brushless HLS (High Life Span Servo)

X20 M820 – Swash Servo, 30.6 Kg.cm, 0.09 sec/60°

Technical data:
Operating voltage [V]: 6.0 -8.4 V
Blocking current @ 7.4 V: 4.95 A Nominal current @ 7.4V: 1.25 A
Blocking torque [N / m] @ 7.4V: 3.0
Nominal torque [N / m] @ 7.4 V: 0.7
Actuating time without load [s / 60 °] @ 7.4V: 0.09
Nominal actuating time [s / 60 °] @ 7.4V : 0.17 Adjustment
Range: +/- 50 ° 1000 -2000 us
             +/- 100 ° 500 – 2500 us
Working temperature range: 10 ° – 65 ° C
Width [mm]: 20.0
Length [mm]: 40.0
Height [mm]: 40.0
Weight [ g]: 75.0
Motor type: Brushless
Signal: PWM
Gear type: 25T-6
Metal Bearing type: 6BB Teeth
Servo type: Robotics / model making
Electronics: Digital
Position sensor: Hall sensor
Waterproof: No
Manufacturer: KST
