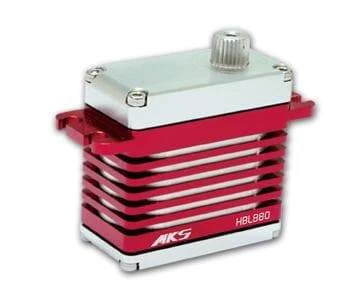

MKS HBL880 0.032 Sec/60 (11.19kg.cm 8.2V) – 8mm Output Shaft.

Suitable Gyros

Spartan DS760、Spartan Quark、Futaba GY611、GY601、GY520、ALIGN GP700、GP750、Mikado V-Bar Tail、CSM SL720、Curtis Youngblood Mini-G 、Solid G、Thunder Tiger TG-7000、BeastX Mircobeast



Torque: 8.2 kg-cm (6.0V) │10.1 kg-cm (7.4V) │11.19 kg-cm (8.2V)

 Speed: 0.044 s (6.0V)  │  0.036 s (7.4V) │ 0.032 s (8.2V)

 Weight: 73.2 g

Dimensions：40 x 20 x 38.5 mm
Operating Voltage：6.0 ~ 8.4 V DC Volts  ( 2S Lipo un-regulated)
Working frequence：760μs / 560hz
Dead band：——
Bearing Type：2BB
Motor Type：Brushless Motor
Gear Type：Chrome-Titanium alloy gear

Note: Due to the high torque output of this servo, this MKS servo uses an 8mm servo output shaft, and therefore traditional standard sized servo arms will not fit.



---



Notice

1. For all series servos, please Do Not use hand or tool to turn output gear
    directly when power is on or off. Otherwise, it is probable to damage
    interior electronic parts.
2. Please use the servo according to prescript operating voltage.
    Please Don Not add voltage for promoting efficacy of servo.
