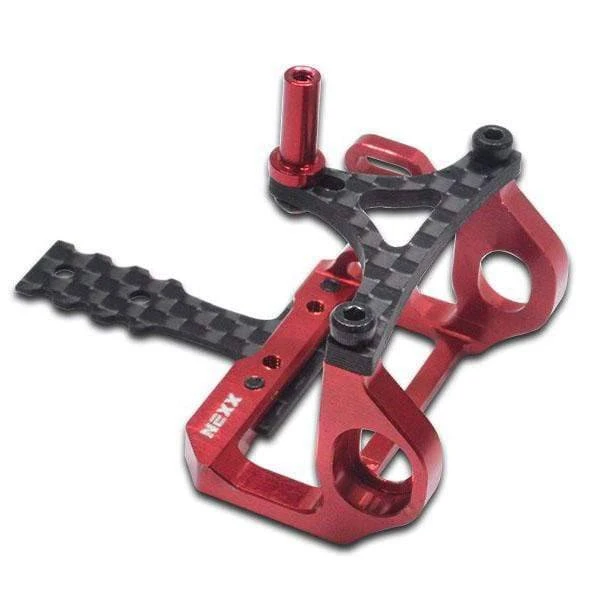

Nexx Racing Mini-Z 2WD 90_94mm MM Alu 7075 Round Motor Mount (RED)

New NEXX RACING precision CNC SWISS aluminum 7075 T6 motor mount is designed to replace stock plastic Kyosho Mini-Z motor mount and to support round brushless motors. It is designed for MR-03RM/ MR02RM/015 RM (wheelbase 90mm to 94mm). NEXX Racing motor mount is very light weight, yet very strong, made from aerospace aluminum 7075 T6

Specifications:

Weight: 5.1g (without T-plate)

Designed for Kyosho Mini-Z 90 and 94 MM chassis ( 90mm to 94mm wheelbase rear motor ), 15mm round diameter brushless motors (Rocket, Ensotech, PN Racing, GL Racing, Atomic brushless motors ….)

Features:

1. The new motor mount is designed for the Mini-Z brushless motors. A lot of hours of engineering have been put into this motor to lower the C.G to lowest possible.
2. Innovative slot design to allow easy adjusting gear mesh
3. Adjusting gear mesh is not always an easy job, however with NEXX innovative method of adjusting the gear mesh, it’s very simple, fool-proof one screw driver operation.
4. Innovative carbon support design
5. NEXX solves the problem of motors being ejected from crashes by a new method of lockup and hold the motor in secured position so that in hardest crash, the motor cannot be ejected from the chassis.
6. Free carbon fiber T-plate
7. NEXX Racing motor mount also comes with a free high quality carbon fiber #5T-plate. Free of charge
8. Free alu 7075-T6 damper posts
9. NEXX Racing motor mount also comes with alu damper posts free of charge.
10. Easy center shock height adjustment
11. NEXX Racing motor mount offers the ability to adjust the height of center shock.

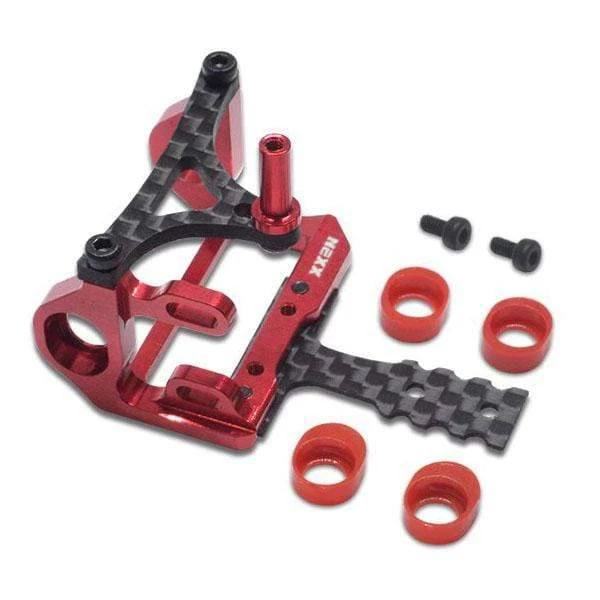

The package includes:

1 x Precision CNC SWISS 7075 T6 aluminum motor mount
4 x eccentric bearing holders to allow height adjustment of the motor mount.
1 x alu damper post
1 x carbon fiber T-plate #5 (strongest)

NOTE: WITH 90MM CHASSIS ONLY CAN USE THE SMALLESS PINION ( 6T-48P; 9T-64P)
