| Applications | |
| Helis: | 500 Class, 550 Class, or 600 Class (use external BEC or RX/servo power source; not included) |
| Fixed wing: | .40 – .90 |
| Technical Specs | |
| Input voltage: | MIN: 2S LiPo MAX: 8S LiPo |
| Max continuous amperage at full throttle: | 100 amps* |
| BEC voltage (voltage regulator for powering radio and sevos): | User selectable choice from 5 to 8.4 volt output |
| BEC output amperage: | 5 amp peak** |
| Size and Weight | |
| Width: | 2.0″ (50.8mm) |
| Length: | 2.8″ (71.9mm) |
| Height: | 0.9″ (23.2mm) |
| Weight w/wires: | 4.5 oz (126.6g) |
| Weight w/o wires: | 2.6 oz (72.9g) |
| Miscellaneous | |
| Programmability: | Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link USB adapter included in package) and freely downloadable Castle Link Windows software. Castle Field Link Programming Card (sold separately) compatible for select functions. |
| Connectors: | Battery and motor connectors sold separately |
| Tools needed for installation: | Soldering iron and solder to attach bullets to motor wires and battery connector to power wires. |

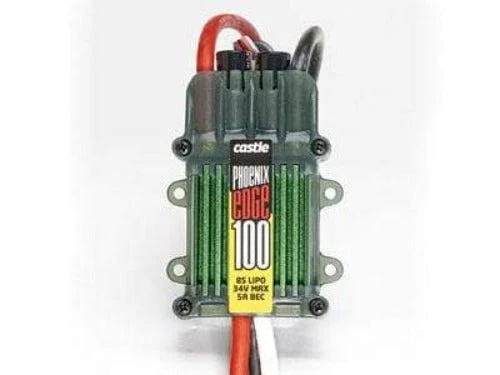

PHOENIX EDGE 100 (32V 100 AMP) BRUSHLESS ESC W/5A BEC
$137.95 Original price was: $137.95.$98.99Current price is: $98.99.
SKU: AGVSA 3528782118989 Categories: Heli ESCs, Helicopter Electronics, Helicopters Tags: 480-520 Electronics, 50-100A, 8S, AmazonSeller, BF22 10, Castle-creation, Coupon promotion, Heli electronics, Heli_cate, Heli-escs, Helicopter Electronics, HW22 10, Labor22 10, New Year 2022
