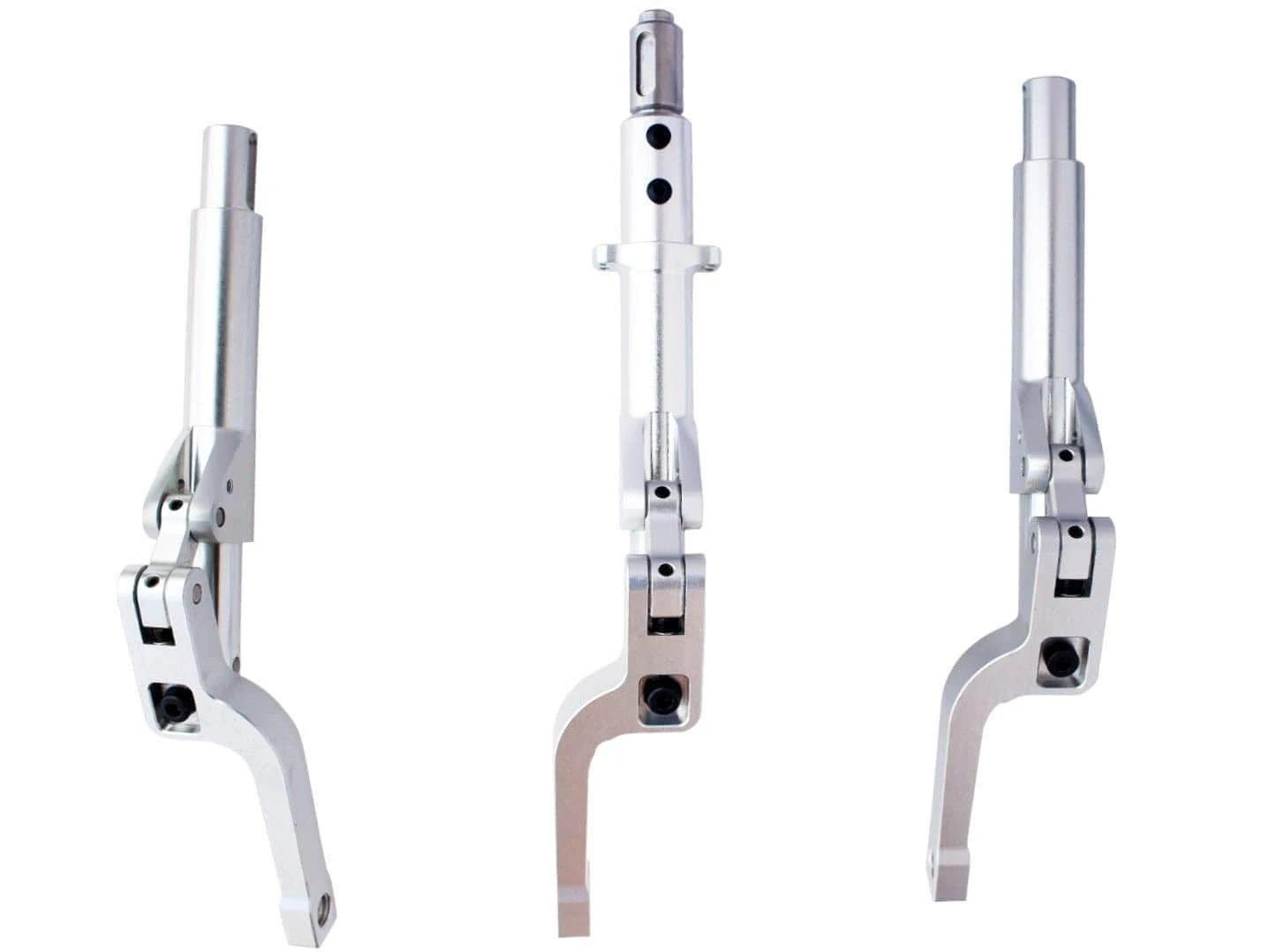

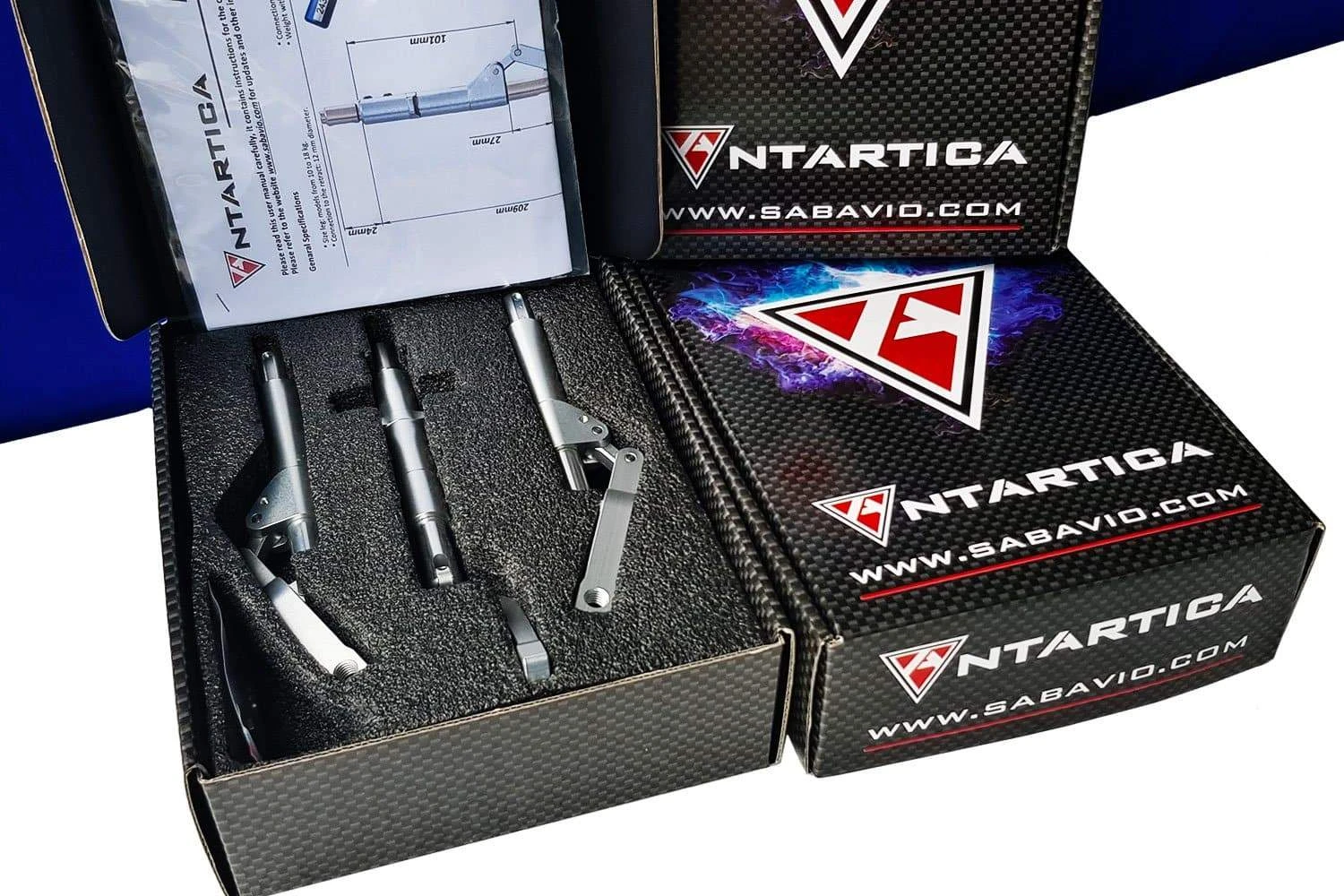

SAB Avio Landing Gear Legs (3 Legs)

Front Leg



General Specifications



* Size leg: models from 10 to 18 kg.

* Connection to the retract: 12 mm diameter.



NOTE:

* Use Loctite 242 thread locker for the M8 wheel connection. * Every 50 uses add a dense grease inside the cylinder.

* Connection to the shaft axis : M8. * Weight without wheel: 122 grams.

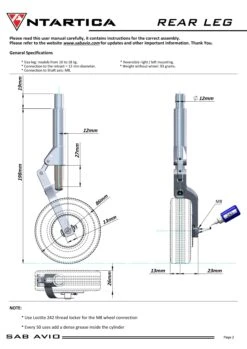

Rear Leg



General Specifications



* Size leg: models from 10 to 18 kg.

* Connection to the retract = 12 mm diameter.

* Connection to Shaft axis: M8.



NOTE:

* Use Loctite 242 thread locker for the M8 wheel connection * Every 50 uses add a dense grease inside the cylinder

* Reversible right / left mounting. * Weight without wheel: 93 grams.
