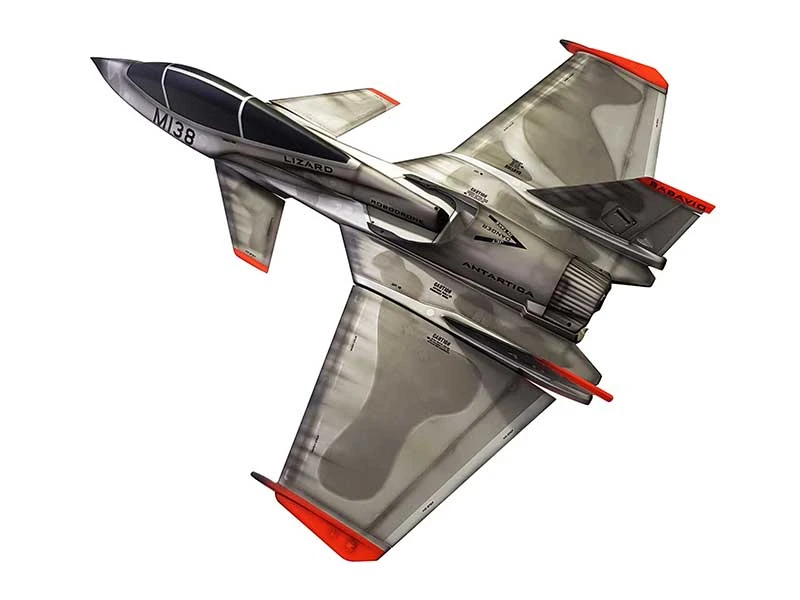

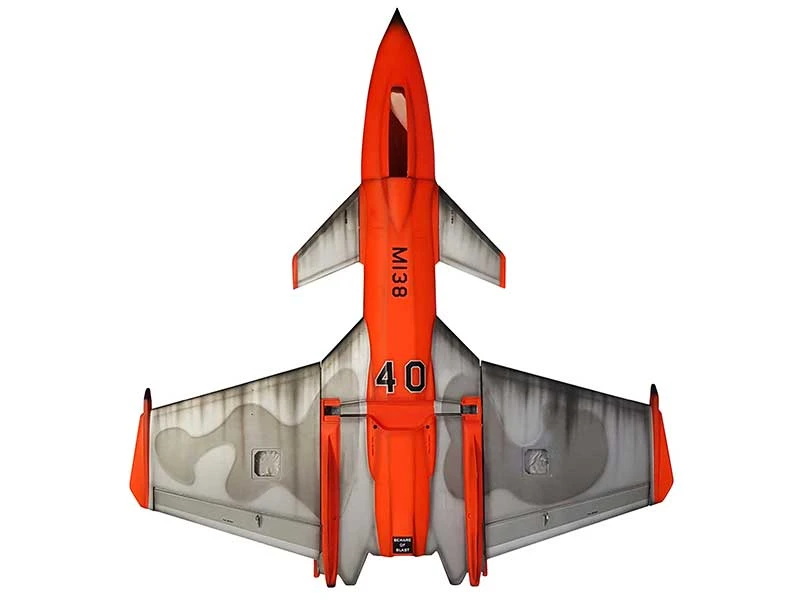

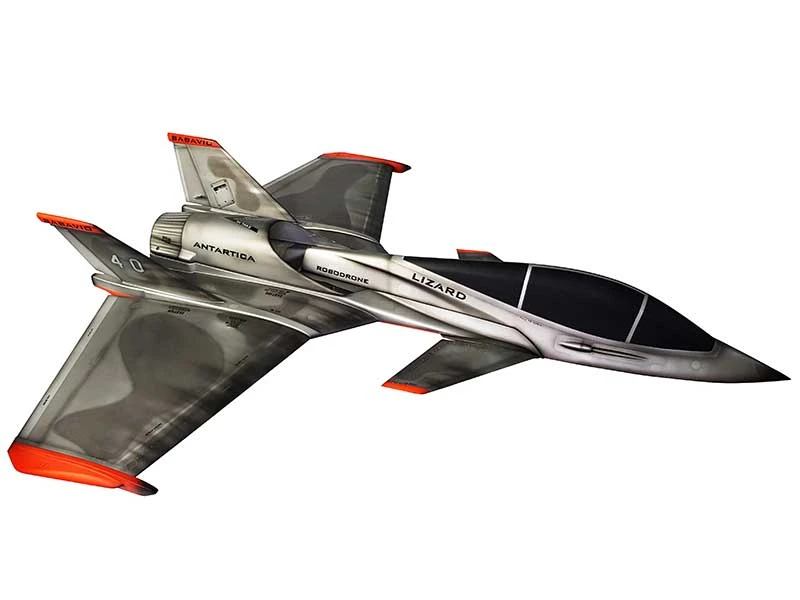

SAB AVIO M138 Lizard EDF / Turbine Jet Silver Kit

SAB AVIO M138 Lizard – Multirole Performance Unleashed.



Download manual (EDF version)

Download manual (Turbine conversion)



Check out SAB Lizard Jet Build Log at RCGroup



Enter the SAB AVIO M138 Lizard; a menacing creature of flight, featuring a radical design for the ultimate in unrivaled jet driven performance. Drawing inspiration from the Tortuga, Havok and Drake, the M138 Lizard is a purpose built beast, incorporating an aerodynamic design for epic low speed capability coalesced with the ultimate in high speed thrills.

Torn from the saga of “Antartica,” the M138 Lizard is envisioned as a multirole fighter – craving the opportunity to devastate the adversary in epic all out war. Featuring a weathered pre-painted, high visibility livery, the detail and design of the M138 is stunning in form, with incredible functionality that is highly visible all throughout this impressive machine.

Compact in form, the M138 Lizard was designed as the perfect fit between its larger Havok & Drake counterparts, offering epic levels of high performance capability. A first for this size of machine, the M138 Lizard is EDF ready, with the ability to harness 100mm – 120mm EDF fans for the ultimate in electric powered thrust. For those that thirst for pure turbine madness, the Lizard awaits your turbine of choice, with the optional turbine conversion kit capable of housing 4.5Kg – 12Kg turbines for the ultimate in sky scorching speed.

Engineered for maximum control, the M138 Lizard features an array of high authority control surfaces, allowing the Lizard to excel in every regime of flight. Utilizing canards for pitch control, ailerons for roll, and optional dual rudder capability for optimized low speed flight, the Lizard was designed to perform. And for those that choose the ultimate in turbine power, the optional turbine vector kit adds massive 3D control, with 3D thrust vectoring capability for all out aerobatic insanity.

Step into the future of RC jet flight with the all new SAB M138 Lizard – ARF brilliance with looks ready to kill.



•

Features:

– EDF Ready with Optional Turbine Conversion Capability
– Full Sandwich Fiberglass / Airex High Strength Layup
– Optional Turbine 3D Thrust Vectoring System
– Incredible Control, Precision and Maneuverability
– Aggressive High Alpha Capability
– All New Quick Release Wing System
– Fully Painted with Incredible Levels of Detail
– Control Surface Horns / Servo Mounts Pre-Installed
– Ultra Easy Compartment Access
– Factory Set for Rapid Assembly
– Ready for SAB Retract Landing Gear System

EDF Requirements:

(1) 100mm – 120mm EDF
(1) 160A – 200A ESC
(1) 12S 5000mAh LiPo Battery

Turbine Requirements:

(1) 4.5Kg – 12Kg Turbine
(1) Turbine Conversion Kit – S0305-S(1) UAT120CC – S0296-S
(1) (Optional) Vector Thrust Kit – S0087-S

Technical Specifications:

Wing Span: 1380mm (54.3″)
Length: 1550mm (61″)
Dry RTF Weight: 5.8Kg – 6.5Kg / 12.3 lbs. – 14.5 lbs. (Dependent Upon Equipment Used)
Fuel Tank Capacity: 2 Liters (0.52 Gallons)

Included:

(1) M138 Lizard Kit

Required for Flight:

(1) EDF or Turbine Powerplant (ESC Required for EDF)
(3) Mini Servos
(1) Standard Servo
(2) Mini Wing Servos for Optional Rudders
(1) Retract System
