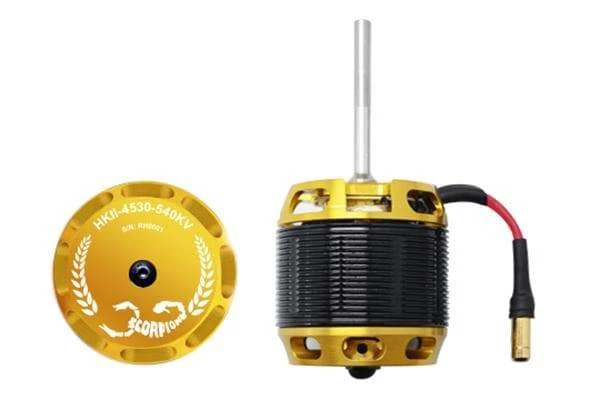

Scorpion HKII-4530-540KV Brushless Motor 6mm 55mm

The New Scorpion HKII-4530 series motors are designed for using on 700 class helicopters running on 12-cell Li-Po power. These motors feature several design improvements over the original HK-4530 motors, for even higher performance and better efficiency in your 700 Class Electric Helicopter!

The new HKII-4530-540KV motor is wound with a single strand of 1.5mm wire for the highest possible efficiency. This motor is capable of running continuously at an input power of 4800 watts at 115 amps, and can handle peak inputs of 11000 watts and 250 amps for 2 seconds.

Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Coated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand high temperatures, making a motor that is virtually impossible to burn up in normal use.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.

For the best overall combination of quality, performance, and value, use Scorpion Motors in your helicopter!

*This motor is using 30mm bolt spacing on the mounting with M4 Screw holes

Specifications

Scorpion HKII-4530-540KV Motor Specifications
Stator Diameter	45 mm (1.77 in)
Stator Thickness	30 mm (1.18 in)
Number of Stator Arms	12
Number of Stator Poles	10
Motor Wind	5T + 4T Wye
Motor Wire	1-Strand 1.5 mm
Motor Kv Value	540Kv RPM/Volt
No Load Current (Io/10v)	2.54 Amps
Motor Resistance (RM)	0.010 Ohms
Maximum Continuous Current	115 Amps
Max Continuous Power	4800 Watts
Motor Weight	588 Grams (20.74oz)
Outside Diameter	56.9 mm (2.24 in.)
Shaft Diameter	5.98 mm (0.24 in.)
Motor Body Length	62.3 mm (2.45 in.)
Overall Shaft Length	117.3 mm (4.62 in.)
Max Li-Po Cell	12s
Max Peak Current	250A (2 seconds)
Max Peak Power	11000 Watts (2 seconds)
Motor Timing	15 to 24 degrees
Drive Frequency	8 KHz

Included in the Box

1 x Scorpion HKII-4530-540KV 6mm XL Shaft Motor
3 x Female Connectors
3 x Heat Shrink

Weight including packaging

1045g

View the Scorpion HKII-4530-540 Motor Full Dimensions
