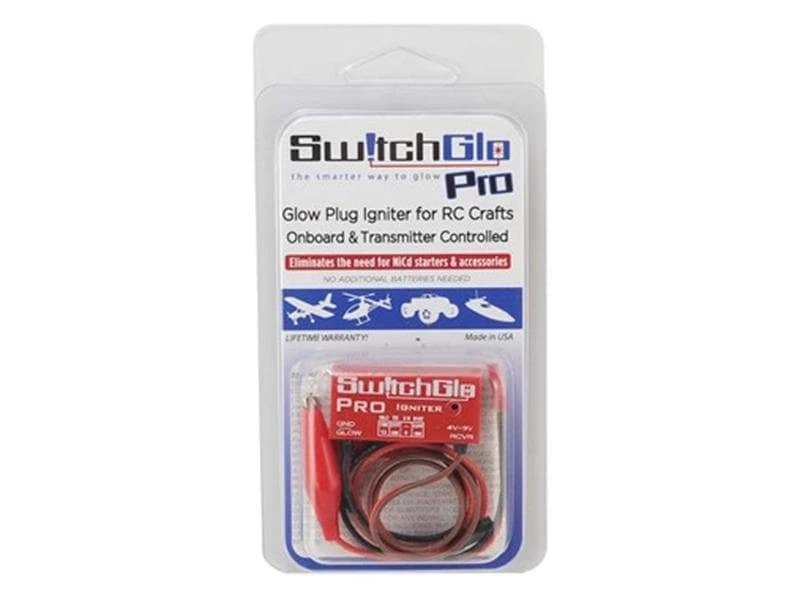

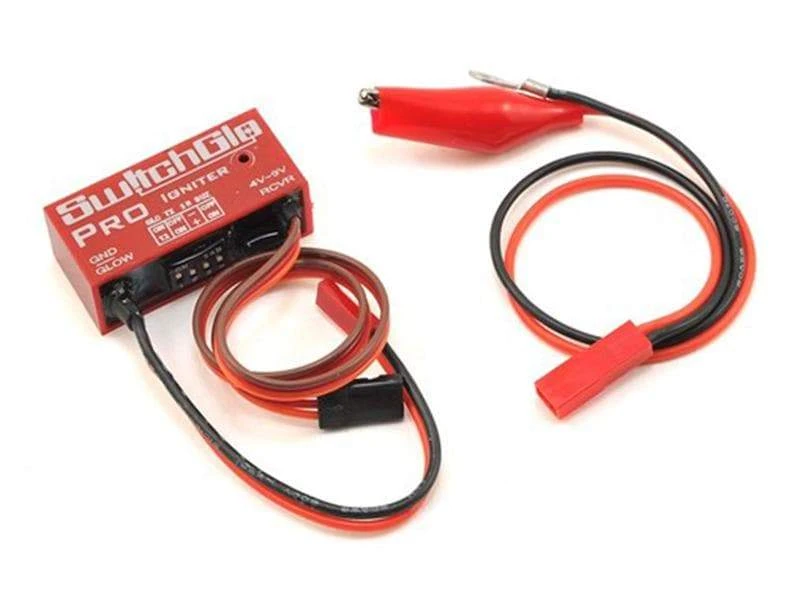

SwitchGlo Pro Igniter W/Alligator Pigtail

SwitchGlo Pro is a revolutionary onboard glow driver that simply plugs into an RX receiver channel and requires no re-charging or additional batteries. It will accept any voltage input between 4V and 9V. Because of its unique and highly efficient voltage regulation technology, SwitchGlo Pro draws an insignificant 0.4mAh per 1 second of glow time and will not noticeably drain your receiver battery. Total onboard weight is only 25 grams including the pig tail.

“Know when you Glow” with an audible buzzer that can also assist in locating a lost craft. SwitchGlo helps you diagnose starting problems with a single beep when detecting an open circuit, indicating you that your glow plug is spent, and greatly reducing time wasted troubleshooting.

You can program mix SwitchGlo Pro just like any other servo on your craft. SwitchGlo Pro has a 4 switch SIP with a built in servo reverser for Y harnessing and an adjustable 12 or 60 second Auto Shut-Off setting. This allows you to adjust for every possible installation and program mix, from eliminating Helicopter “Hot Starts”, to “Low Throttle Mixes” for Airplane taxiing and final approach, SwitchGlo Pro can do it all.

No more struggling with lost or forgotten hand held ni-starters, broken remote cables, or dead batteries. SwitchGlo Pro is ready to work for you every time you power on your craft!

Specifications:
Dimensions: 1.587″ x .720″ x .590″
Receiver cable: 8″
Glow Plug Pigtail: 8″
Weight: 28 grams with pigtail
Input Voltage: 4V – 9V input
Output Power: 4.8W

Power Consumption:

• 0.44mah per second of glow time
• 2.2mah per 5 seconds glow (average start)
• 4.4mah per 10 second glow (auto shut-off)
• 33mah to start craft for a typical 15 flights per charge
• Over 2300 average glows on a 5200mah battery (assumes no other battery draw)
• Glow plug average current draw measured at 1.5a
