TBS Ethix Mr Steele Stout Motor V5 Blue
Original price was: $27.95.$19.57Current price is: $19.57.
- Superior Quality Goods
- Best price, safe shopping guarantee
- SSL encryption, absolutely safe shopping
- Buy quality, buy with us.
Introducing the Mr. Steele V5 Stout 2307 (1950KV) 6S (5”-5.5” prop) FPV freestyle motor. The Stout motor is wound at 1950KV for extra power and speed.
The V5 features an increased stator size and a redesigned motor bell setup for more durability. This new iteration of my trusted power train formula follows a lightweight ethos with increased power and torque where it counts. Attaining a high power-to-weight ratio cannot overstate when building a high-performance aircraft. The V5 Silk add confidence with even heavier HD cameras.
Thank you for your support and take pride in knowing that you are the reason I am able to keep evolving in this amazing space we call the FPV community.
V5 MOTOR HIGHLIGHTS
- Increased stator size 2307
- Base redesign 16×16(only) mounting holes (new structural changes for more durability)
- Complete bell redesigned (durability and smoothness in mind)
- Thick single strand copper winding
- Increased EFFICIENCY & POWER

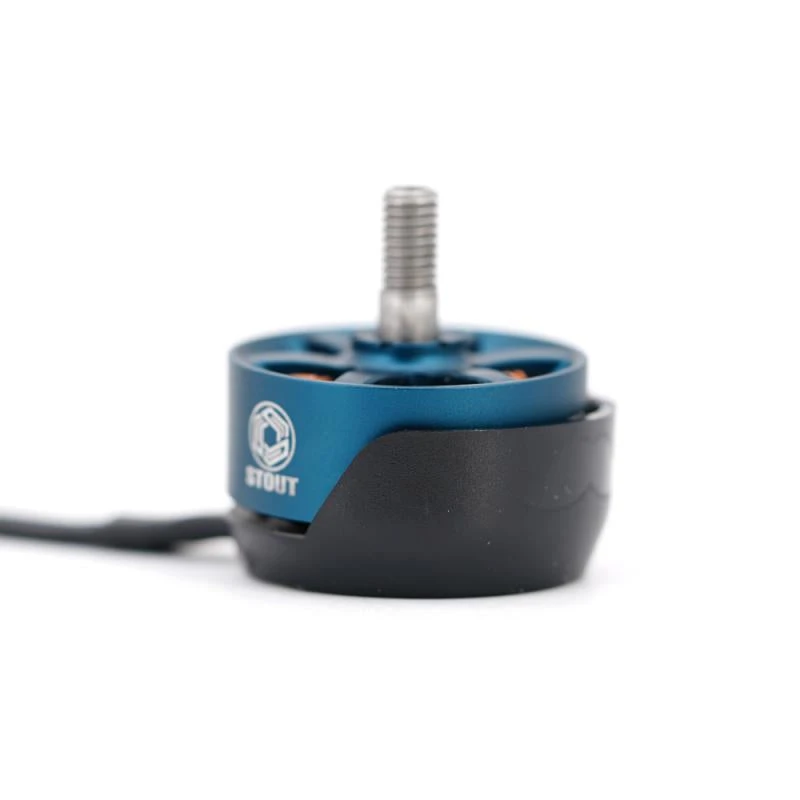

- Complete Interchangeable motor pants redesign (thicker & more crash/low temperature resistant, better gap fitment, + more protection coverage for the “tall pants”)
- Better assembly tolerances
- Overall QC improvements
- 9mm steel bearings
- Eco-Friendly packaging
- Motor weight 33.8g (full-length cables) compared to Stout V1 at 31.5g
- Pants Weight – Low – 1g vs (0.8 v3) | Tall – 2g vs (1.8 v3)
All in all this motor is an absolute gem only increasing the weight by a tad over 1g from the previous model while achieving more power, efficiency, and most importantly durability.
Enjoy & Thank you for your continued support. -Steele
SPECIFICATIONS
| Stator Size (Diameter) | 23mm*7mm |
| Kv | 1950kv |
| Magnets | N52SH Curved |
| Windings | 13turn DLRK |
| Shaft Length (mm) | 10.5mm |
| Shaft Diameter (mm) | 4mm |
| Shaft material | Steel |
| Bearing | NMB684 |
| Weight (With Wires)(g) | 36.5g |
| Cells (Lipo) | 6S |
| Max Current (A) | 45A |
| Max Burst Current (A) | 60A |
| Internal Resistance (Rm) | 60mΩ |
| Wire Spec (AWG) | 20#-135mm |
| Base Mounting Pattern | 16x16mm |
| Base Mounting Thread | M3 Thread |
| Motor Overall Dimensions | φ28.6mm*18.2mm |
