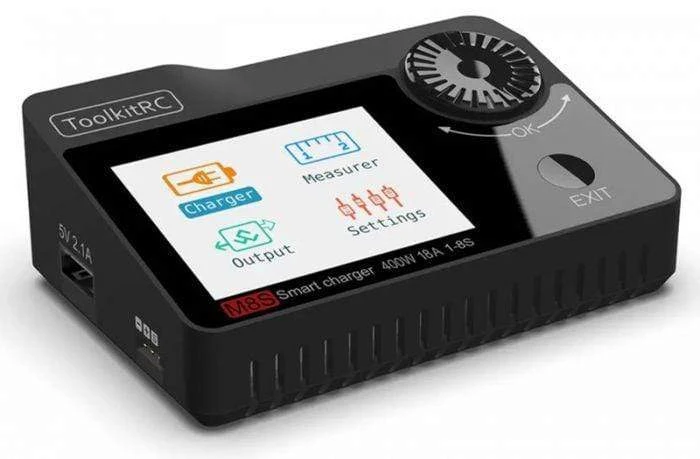

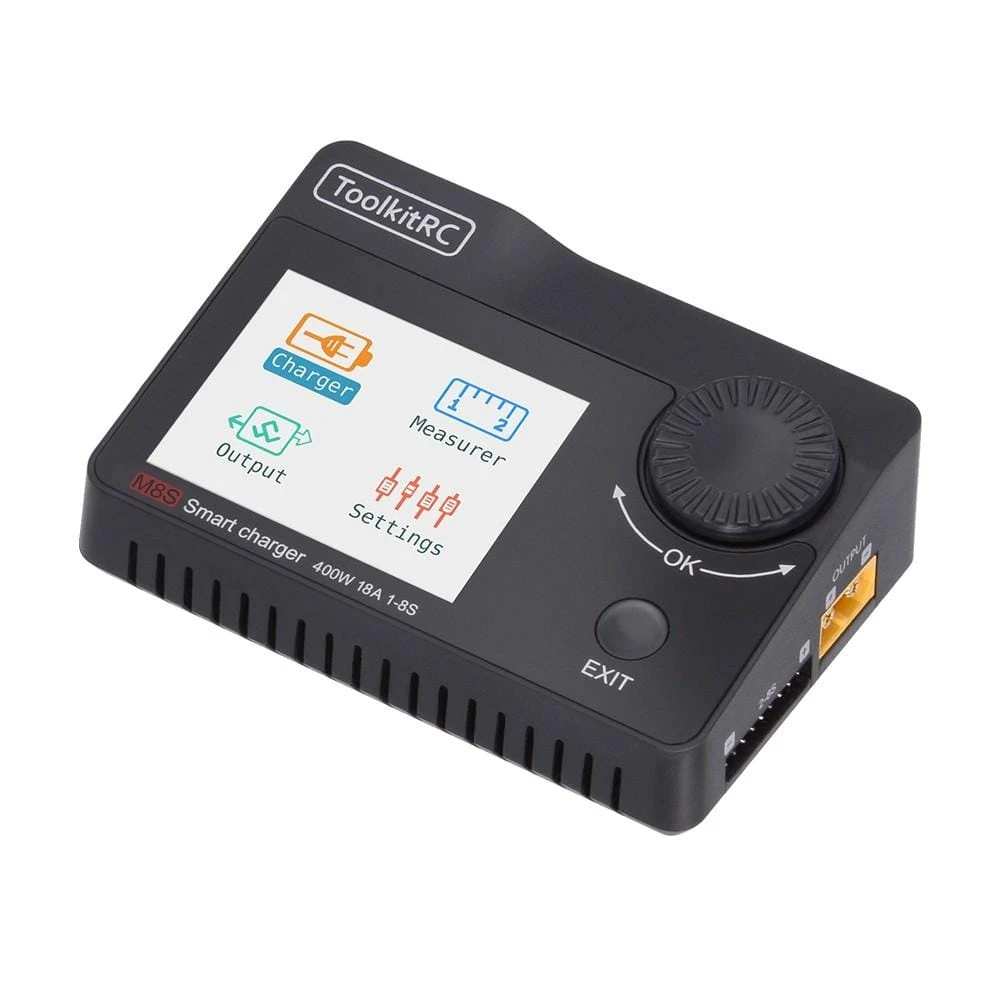

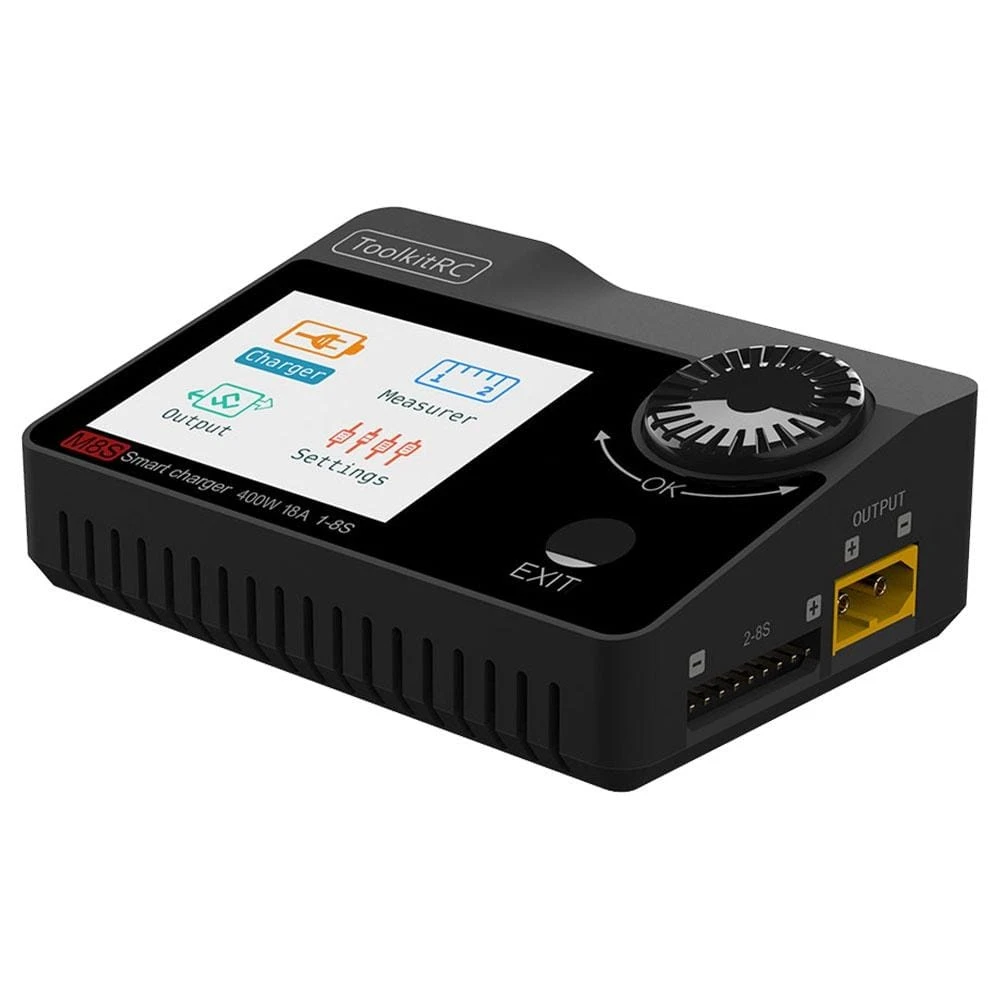

ToolkitRC M8S 400W 18A Charger – Cell Checker – Servo Tester – Signal Tester

Features

• 2.4″ Color Screen
• Battery Charger
• Cell Checker
• Servo Tester
• PWM,PPM.SBUS Input/output Receiver & Flight control tester
• Viable AMp/volt DC Power supply (Required external DC input)

Specifications

• Charging
• Input 7-30V: @MAX18A
• Battery Type: LiPo LiHV LiFe Lion @ 1-8S NiMh @1-20S Pb @1-12S
• Bal Current: 800mA @2-8S
• Accuracy: ±0.01V
• Charging Power 0.1-18A @ 400W
• Discharging Power 0.1-18A @ 400W
• Recycle Mode 0.1-5A @ 20W Normal Mode
• USB 2.1A @ 5.0V upgrade

Measuring

• PWM 880us-2200us @20-400Hz
• PPM 880us-2200us*8Ch @20-50hz
• SBUS 880us-2200us*16ch @20-100Hz
• Voltage 1.0V-5.0V @1-8S
• IR 1-100mR @1-8S

Output

• PWM 500us-2500us @20-1000Hz
• PPM 880us-2200us*8ch @50hz
• SBUS 880us-2200us*16ch @74Hz
• Power 1-18A @ 1-30V Mode: CC+CV
• Display:LCD TFT 2.4 inch 320*240 resolution

Product

• Size 98mm*68mm*35mm
• Weight 170g
• Packing: Size 108.5mm*80.5mm*46mm Weight 255g

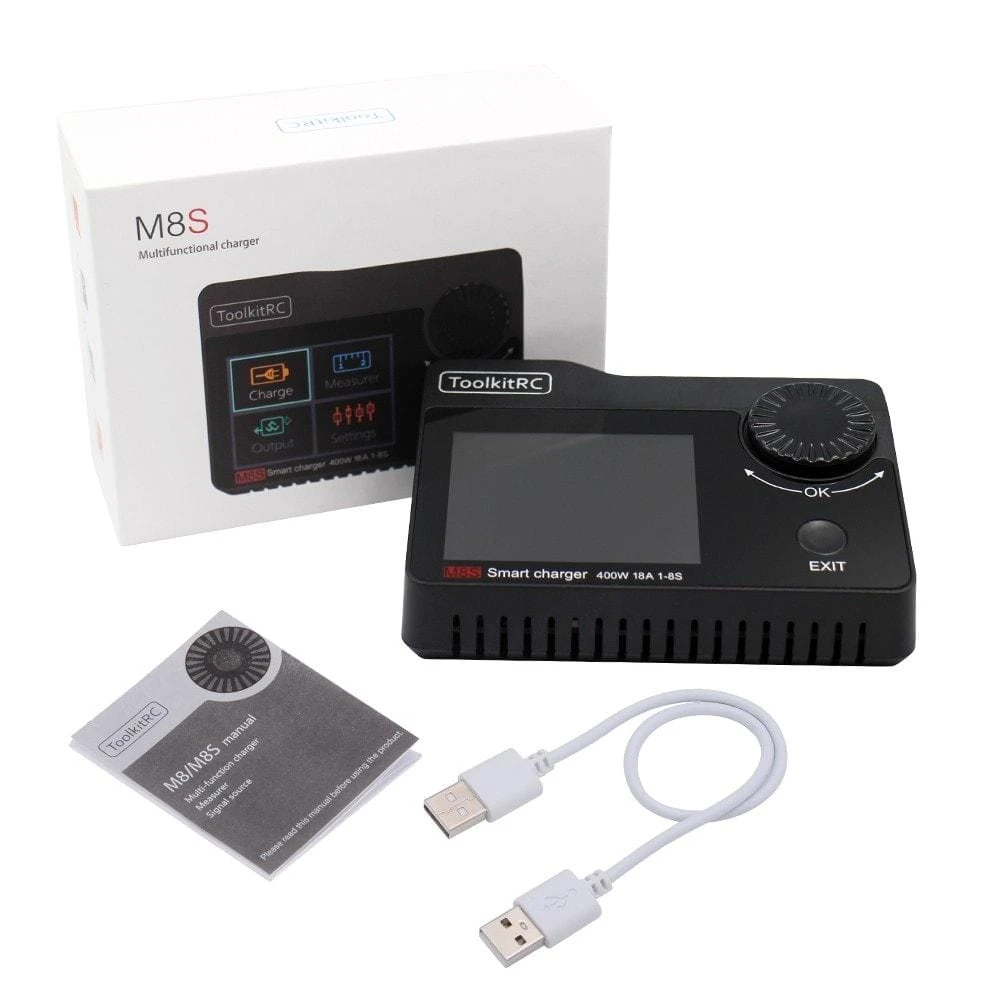

Includes

• 1 x ToolkitRC M8S 400W 18A Charger

Add a Power Supply (not included)

The ToolKit charger is very powerful but it needs an external power supply to operate. We suggest one of the following power supplies below if you don’t have one already.

• Power Supply for Battery Charger – 400w 16.7A 24V w/ XT60
• Power Supply for Battery Charger – 360w 15A 24V w/ XT60
• Power Supply for Battery Charger – 250w 10A 24V w/ XT60
