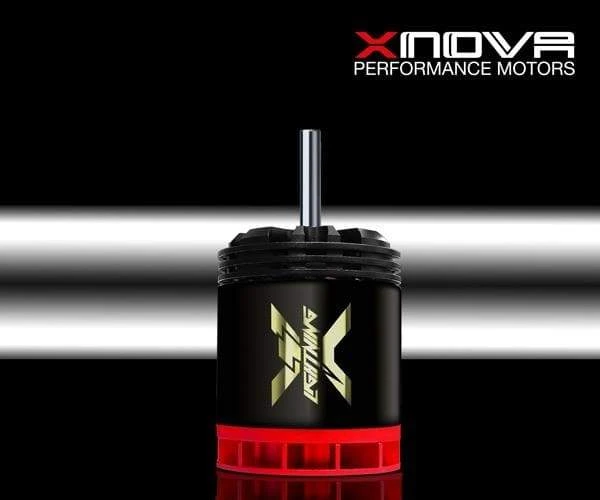

Xnova Lightning 2820-920KV HP Brushless Motor Shaft A

Original price was: $125.00.Current price is: $87.50.

SKU: AGVSA 3596871598157 Categories: Heli Motors, Helicopter Electronics, Helicopters Tags: AmazonSeller2, BK CLB21 10, CLB21 Heli Electronics, Heli electronics, Heli-motors, Helicopter Electronics, IRCHA2, July22 xnova, YE21 BK

Superior Quality Goods
Best price, safe shopping guarantee
SSL encryption, absolutely safe shopping
Buy quality, buy with us.

Description
Reviews (0)

This is the Xnova Lightning 2820-920KV HP Brushless Motor. We have spent hours of testing to improve the very well established and known 2820 XTS motor. The result is an even better overall performing motor and increased efficiency. This will provide you a cooler running motor and also more consistent power delivery over the full flight. The Xnova lightning series is the highest level of motor performance available now!

Slots & Poles	12n10p
Winding T	YY
rpm/V	920
Volt (V)	10 / 22.2
Io(A)	1.8 / 2.8
Rm (mohm)	28 / 28
Weight (without connector) (g)	150
Body Length (no shaft) mm	40.7
Diameter (mm)	36
Shaft Length (mm) (Details pictures)	A or B
Shaft Dia. (mm)	5
Mounting Holes CTC Distance (mm)	25
Mounting Screw	M3x0.5
Max Eff. Curr.	25.35 / 47.12
Max Eff.	85.80 / 88.11
Kt (Nm/A	0.0104
Km (Nm/sqrt(w))	0.0620
Max Continuous Power(Watts)	1150
Peak Continuous Power(Watts) (2 sec)	1450
Max Continuous Current(Amps)	52

Features

– New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance.
– Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C.
– 100% handwound.
