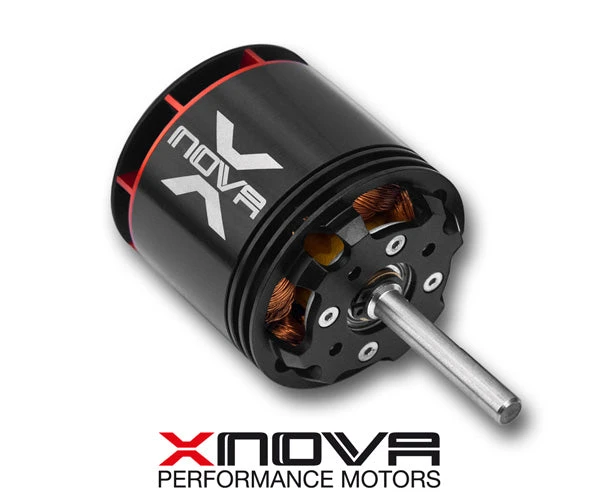

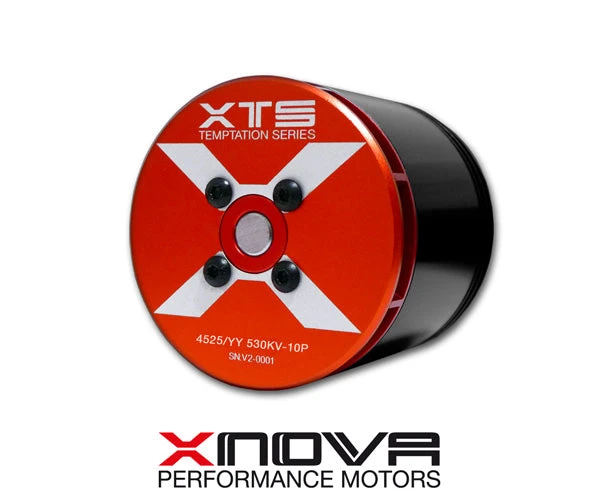

Xnova XTS 4525-530KV YY Brushless Motor Thick Wire – Shaft A

Xnova brushless high performance outrunner motor designed for extrem 3D, 603-690mm bladesize helicopter where highest power to weight ratio is important. It is a extreme power plant specially developed for the new Logo_700 helicopter. It is a insane powerhouse and also a very efficient and cool runnning option for any other 700 light setup competition machine.

• High quality Neodym Magnets. Heat resistant up to 150 degrees C.
• Specialized wires,heat resistant up to 300 degrees C.
• Precisely balanced.
• High performance sheet metal stator.
• High quality NMB bearings. (2 on top 1 at bottom)
• Marked leading effiency up to 92%.
• Cooler running.
• Superb quality and machining of CNC parts.
• Improved torque and power output.
• thick wire.

Xnova XTS 4525-530kv YY ( thick Wire)

Slots & Poles	12n10p
Winding T	YY with thick wire
rpm/V	530
Volt (V)	20 | 30 | 40
Io(A)	3.4 | 4.5 |5.6
Rm (mohm)	9.5 | 9.5| 9.5
Weight (without connector) (g)	488
Body Length (no shaft) mm	55.5
Diameter (mm)	55.7
Shaft Length (mm) (Details pictures)	36 / 56 / 60
Shaft Dia. (mm)	6 | 8
Mounting Holes CTC Distance (mm)	30
Mounting Screw	4×07
Max Eff. Curr.	82.08 | 116.53 | 150.79 |
Max Eff.	92.20| 92.62 | 92.84 |
Kt (Nm/A	0.0180
Km (Nm/sqrt(w))	0.1849
Max Continuous Power(Watts)	4500
Peak Continuous Power(Watts) (5 sec)	10000 (2sec)
Max cont. current (A)	95
