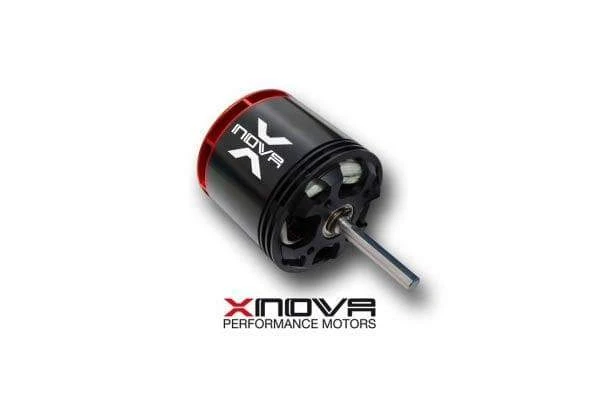

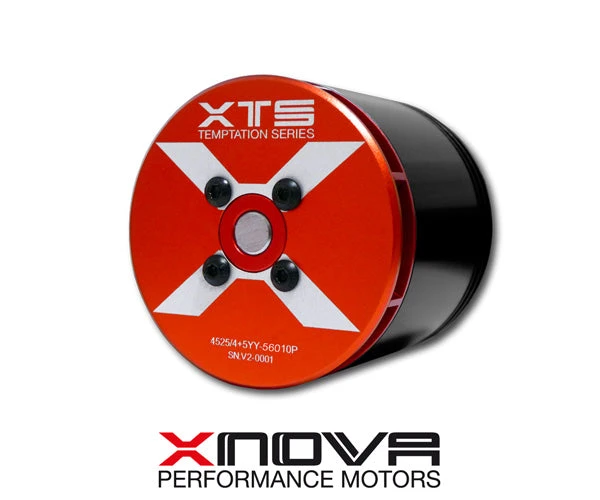

Xnova XTS 4525-560KV YY Brushless Motor Thick Wire – Shaft A

Xnova brushless high performance outrunner motor designed for extreme 3D, 600-660mm blade size helicopter where highest power to weight ratio is important. It is a extreme power plant specially developed for the new SAB-black-thunder Goblin 650 helicopter. The 560KV version is a superb choice for 2 blade and 3 blade setups.

Features:

• High quality Neodym Magnets. Heat resistant up to 150 degrees C.
• Specialized wires, heat resistant up to 300 degrees C.
• Precisely balanced.
• High performance sheet metal stator.
• High quality NMB bearings. (2 on top 1 at bottom)
• Marked leading efficiency up to 93%.
• Cooler running.
• Superb quality and machining of CNC parts.
• Improved torque and power output.
• thick wire.



Specifications:

• Slots & Poles: 12n10p
• Winding T: YY with thick wire
• rpm/V: 560
• Weight (without connector): 480g

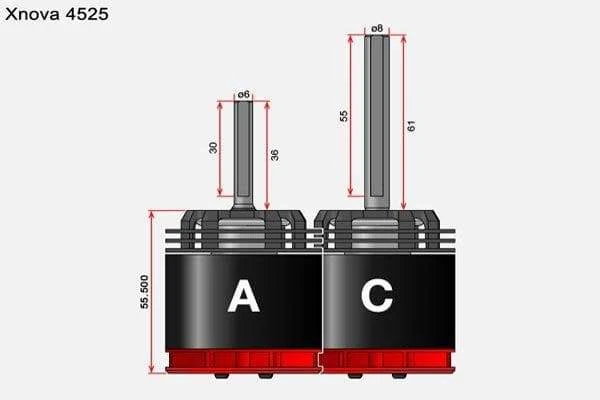

• Body Length (no shaft): 55.5mm
• Diameter: 55.7mm
• Shaft Length: 36mm (Shaft A)
• Shaft Dia.: 6mm
• Mounting Holes CTC Distance: 30mm
• Mounting Screw: 4×07
• Max Continuous Power (Watts): 5000
• Peak Continuous Power (Watts): 10000
• Max Continuous Current (A): 100
