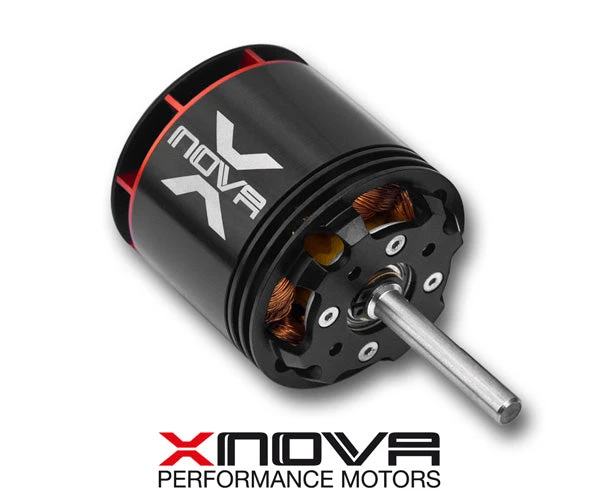

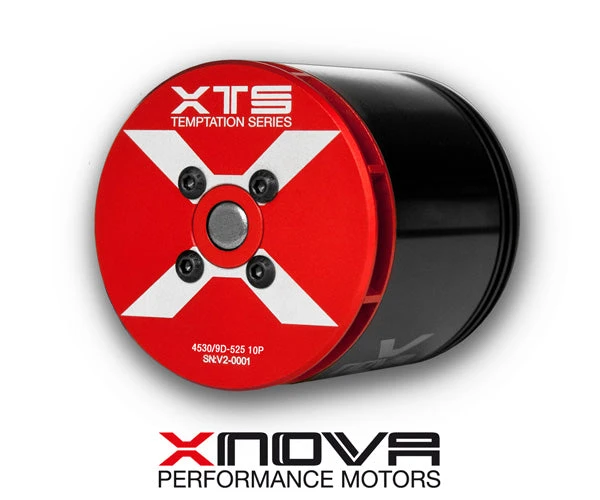

Xnova XTS 4530-525KV 4+5YY (1,5mm Thick Wire) – Shaft A

Xnova brushless high performance outrunner motor designed for extrem 3D 700-800mm helicopter where highest power to weight ratio is important. Recommended for specially 12S.

• High quality Neodym Magnets. Heat resistant up to 150 degrees C.
• Specialized wires,heat resistant up to 300 degrees C.
• Precisely balanced.
• High performance sheet metal stator.
• High quality NMB bearings. (2 on top 1 at bottom)
• Marked leading effiency up to 93%.
• Cooler running.
• Superb quality and machining of CNC parts.
• Improved torque and power output.
• 1.5 mm thick wire.

Slots & Poles	12n10p
Winding T	4+5 YY with 1.5mm thick wire
rpm/V	525
Volt (V)	10 | 20 | 30 | 40
Io(A)	1.4 | 2 | 2.8 | 3.5
Rm (mohm)	12 | 12 | 12 | 12
Weight (without connector) (g)	535
Body Length (no shaft) mm	60.5
Diameter (mm)	55.7
Shaft Length (mm) (Details pictures)	| 38 | 27
Shaft Dia. (mm)	6 | 8 |10
Mounting Holes CTC Distance (mm)	30
Mounting Screw	4×07
Max Eff. Curr.	34.16 | 57.74 | 83.67 | 108.01
Max Eff.	91.80 | 93.07 | 93.31 | 93.52
Kt (Nm/A	0.0199
Km (Nm/sqrt(w))	0.1816
Max Continuous Power(Watts)	5600
Peak Continuous Power(Watts) (5 sec)	11000 (2sec)
Max cont. current (A)	150
